Chapter 2 Basic Operation 2-8

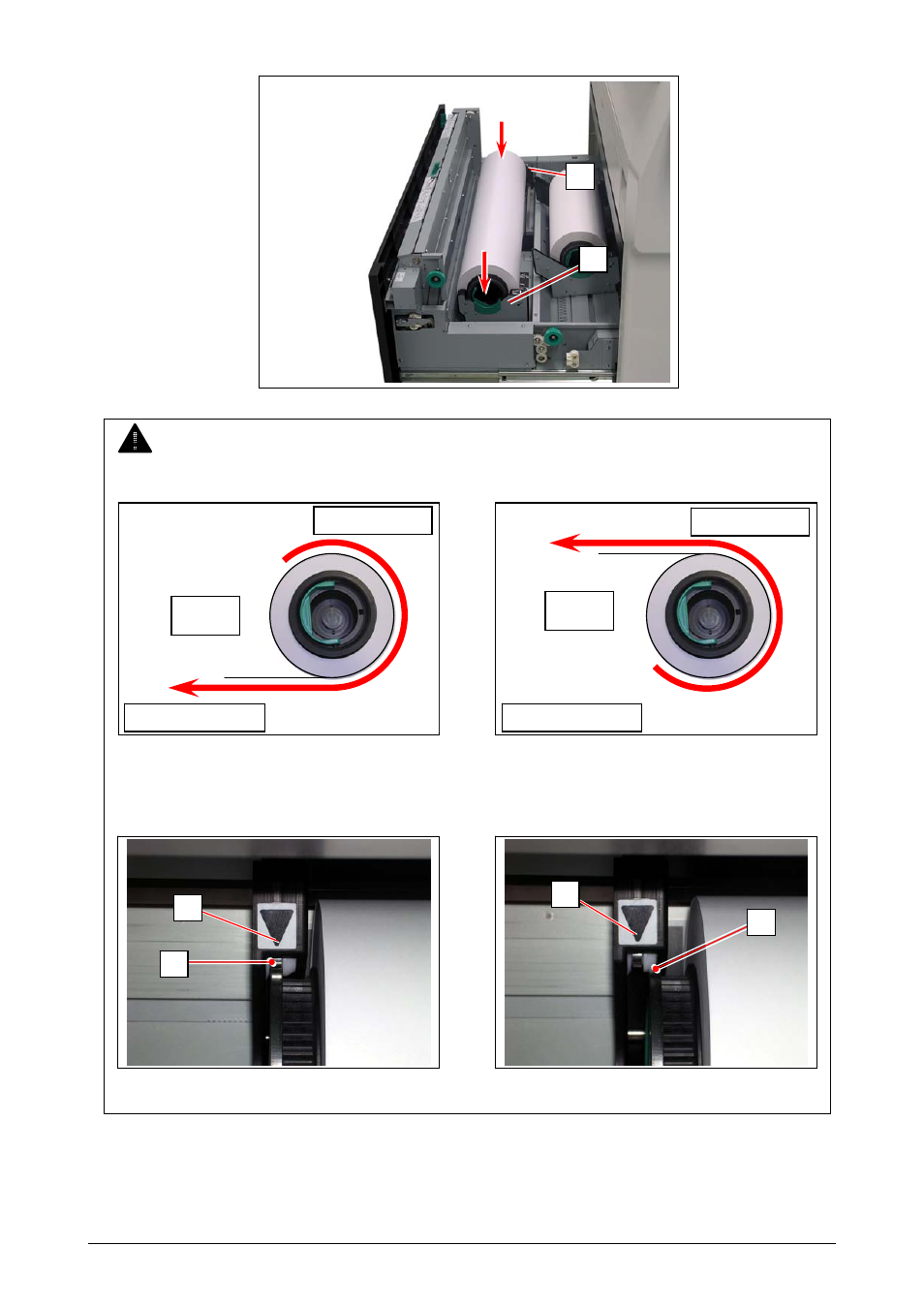

7. Lift the roll media by holding both Flanges. Lower Flanges onto Slide Guides (5) in Roll Deck.
NOTE
(1) Be careful of the winding direction of the roll media.
Correct: Edge comes from bottom Wrong: Edge comes from top
(2) The outside rim (6) of Flange should meet the black triangle (7) marked on Slide Guide.
Otherwise the roll media may fall in Roll Deck or result in an incorrect media feeding.
Correct Wrong
5
5
6
6
7
7
Front: to media path
Rear: Deck back Rear: Deck back
Front: to media path
OK
NG
