27
ENGLISH

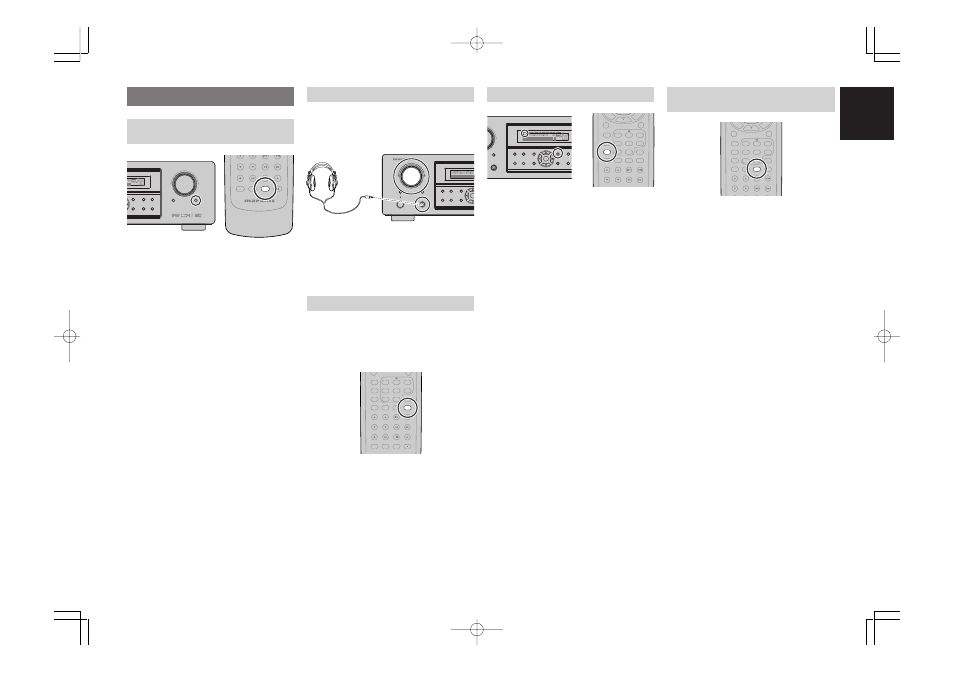

DISPLAY MODE
You can select the display mode for the front display
of the SR4500.
To select this mode, press the
DISPLAY on the front
panel or on the remote.
When this button is pressed, the display mode is
switched in the following sequence.
→ Surround Mode → Auto-display Off → Display
Off → Input Function → Surround Mode....
In Auto display off mode, the display is off. But, if
you make a change to the unit such as input or
surround mode, the display will show that change,
then go back to off after about 3 seconds. When
changing the volume, it is not displayed.
In Display off mode, the display is off completely.
Note:
• Only the DISP indicator will be illuminated on the
front display, in display off condition
OTHER FUNCTION
ATTENUATION TO ANALOG INPUT
SIGNAL
If the selected analog audio input signal is greater
than the capable level of internal processing, the
“
PEAK ” indicator will light up on the front display.
If this happens, you should press the ATT button
on the front panel or on the remote.
“ ATT ” indicator will be illuminated when this function
is activated. The signal-input level is reduced by
about half. Attenuation will not work with the output
signal of TAPE-OUT, CD-R/MD-OUT, VCR1-OUT
and DSS/VCR2-OUT.
This function is memorized for each individual input
source.
LISTENING THROUGH HEADPHONES
This jack may be used to listen to the SR4500’s
output through a pair of headphones. Be certain that
the headphones have a standard 1/4" stereo phono
plug. (Note that the speakers will automatically be
turned off when the headphone jack is in use.)
Notes:
• When using headphones, the surround mode will
change to STEREO and TruSurround (TS)
headphones by SURROUND MODE button.
• The surround mode returns to the previous setting
as soon as the plug is removed from the jack.
VIDEO ON/OFF
When no video signal is connected to the SR4500
or a DVD, etc., is connected directly to your TV, the
unnecessary video circuit can be turned off by
selecting the “
VIDEO OFF ” setting.
To select video off, press the V-OFF button on
the remote.
SELECTING ANALOG AUDIO INPUT
OR DIGITAL AUDIO INPUT
If you have already assigned the digital inputs, you
can temporarily select the audio input mode for
each input source with the
A/D button on the remote
controller.
When this button is pressed, the input mode is
switched in the following sequence.
→ Digital Auto → Digital → Analog → Digital Auto....
In Digital Auto mode, the types of signals being
input to the digital and analog input jacks for the
selected input source are detected automatically.
If no digital signal is being input, the analog input
jacks are selected automatically.
In Digital mode, input is fixed to an assigned digital
input terminal.
In analog mode, the analog input jacks are selected.
This selecting is temporary, so the result will not be
stored in memory.
If you need to change the input mode completely,
use INPUT setup in SETUP MENU system. (see
page 17)
SURROUND
AV SURROUND RECEIVER SR4500 INPUT SELECTOR
PHONES
STANDBY
7.1CH INPUT PURE SETUP DIRECT SIMPLE
AUTO HT-EQ MENU ENTER
MODE
DISP MULTI AUTO TUNED ST V – OFF NIG SLEEP SURR AUTO DIRECT DISC 6.1 MT X 6.1
POWER ON/OFF
S. SPEAKER B
DOWN UP
VOLUME
MUTE ATT DISPLAY MEMORY CLEAR
T-MODE EXIT BAND
K ANALOG DIGITAL ATT EQ DIGITAL SURROUND
AAC PCM L C R SL S SR LFE
SURROUND
AV SURROUND RECEIVER SR4500 R
PHONES
PURE SETUP DIRECT SIMPLE
AUTO HT-EQ MENU ENTER
DISPLAY MEMORY
EXIT BAND
MODE
DISP MULTI AUTO TUNED ST V – OFF NIGHT PEAK ANALOG DIGITAL ATT SLEEP SURR AUTO DIRECT DISC 6.1 MT X 6.1 EQ DIGITAL SURROUND
AAC PCM L C R SL S SR LFE
S. SPEAKER B
CH.SEL LIP.SYNC
PTY SUB-T/ATT AUDIO INPUT/DISC+
F.DIRECT RDS
TUNE/SEARCH
T-MODE
TREBLE BASS
SYSTEM REMOTE CONTROLLER RC5500SR
F.DIRECT RDS
TUNE/SEARCH
T-MODE
TREBLE
CHANNEL/SKIP
BASS
A/D P.SCAN/V-OFF
7.1CH IN STEREO MCH-ST
MEMO CLEAR
DISPLAY
NIGHT CSII EX/ES VIRTUAL
DTS PURE DIRECT AUTO 3 2 1
6 5 4
9 8
0
7
T.TONE MENU OFF SET UP/
F.DIRECT RDS
TUNE/SEARCH
T-MODE
TREBLE
CHANNEL/SKIP
BASS
A/D P.SCAN/V-OFF
7.1CH IN STEREO MCH-ST
MEMO CLEAR
DISPLAY
NIGHT CSII EX/ES VIRTUAL
DTS PURE DIRECT AUTO 3 2 1
6 5 4
9 8
0
7
T.TONE MENU OFF SET UP/
CH.SEL LIP.SYNC
PTY SUB-T/ATT AUDIO INPUT/DISC+
F.DIRECT RDS
TUNE/SEARCH
T-MODE
TREBLE
CHANNEL/SKIP
BASS
A/D P.SCAN/V-OFF
7.1CH IN STEREO MCH-ST
MEMO CLEAR
DISPLAY
NIGHT CSII EX/ES VIRTUAL
DTS PURE DIRECT AUTO 3 2 1
6 5 4
9 8
0
7
T.TONE MENU OFF
