of completeness, and will allow you to set the hardware configuration of the board if
you do not have immediate access to InstaCal
TM and/or your computer.
3.0 HARDWARE INSTALLATION
Several switch and jumper settings must be made before the PC104-DAC06 is
installed into the computer. There are six jumper blocks for setting the gain of each
channel, a simultaneous update jumper for each pair of channels and a base address
switch.
3.1 BASE ADDRESS
The switches on your base address switch are set at the factory to address 300 hex
(768 decimal) as shown in Figure 3-1. Unless there is already a board in your system
using address 300h (768 decimal), we suggest leaving the switches as they are set at
the factory..

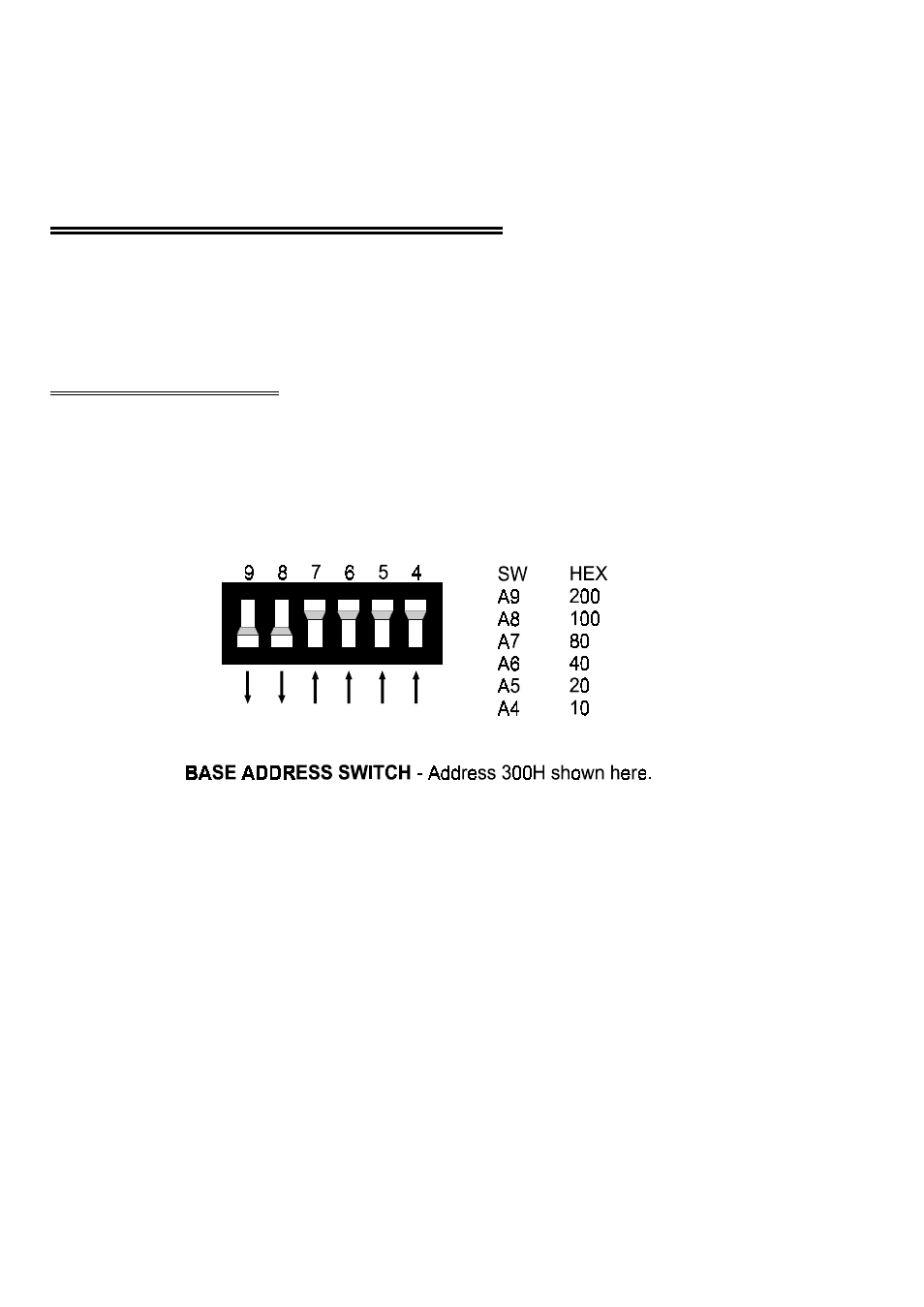

Figure 3-1. Base Address Switches
Certain address are used by the PC, others are free and may be used by the
PC104-DAC06 and other expansion boards.
