IG-4, WBK40 & WBK41 967896 Installation Guide
STEP 3 – Configure and Test the Hardware
The Daq* Configuration applet, designed for 32-bit Windows 95/98/Me/NT/2000/XP systems, is located in the
Windows Control Panel. It allows you to add or remove a device and change configuration settings. The
included test utility provides feedback on the validity of current configuration settings, as well as performance
summaries.
1. Open the Daq* Configuration Applet.
a. Open the Control Panel by navigating from the Windows’ Desktop as follows:
Start Menu ⇒ ⇒ ⇒ ⇒ Settings ⇒ ⇒ ⇒ ⇒ Control Panel
b. From the Control Panel, double-click the Daq* Configuration icon.
2. Add the WBK40 or WBK41.
In the Daq Configuration applet, add the WBK40 or WBK41 to one of the three expansion ports of the
WaveBook/516E or WBK25.
a. Select the WaveBook/516E or WBK25 in the Device Inventory configuration tree (see
following figure).
b. Click the <Add Device> button. The “Select Device Type” box will appear.
c. Select “WBK40” or “WBK41” from the device list, as applicable.
d. Click the <OK> button. The “Properties” box for the device will appear.

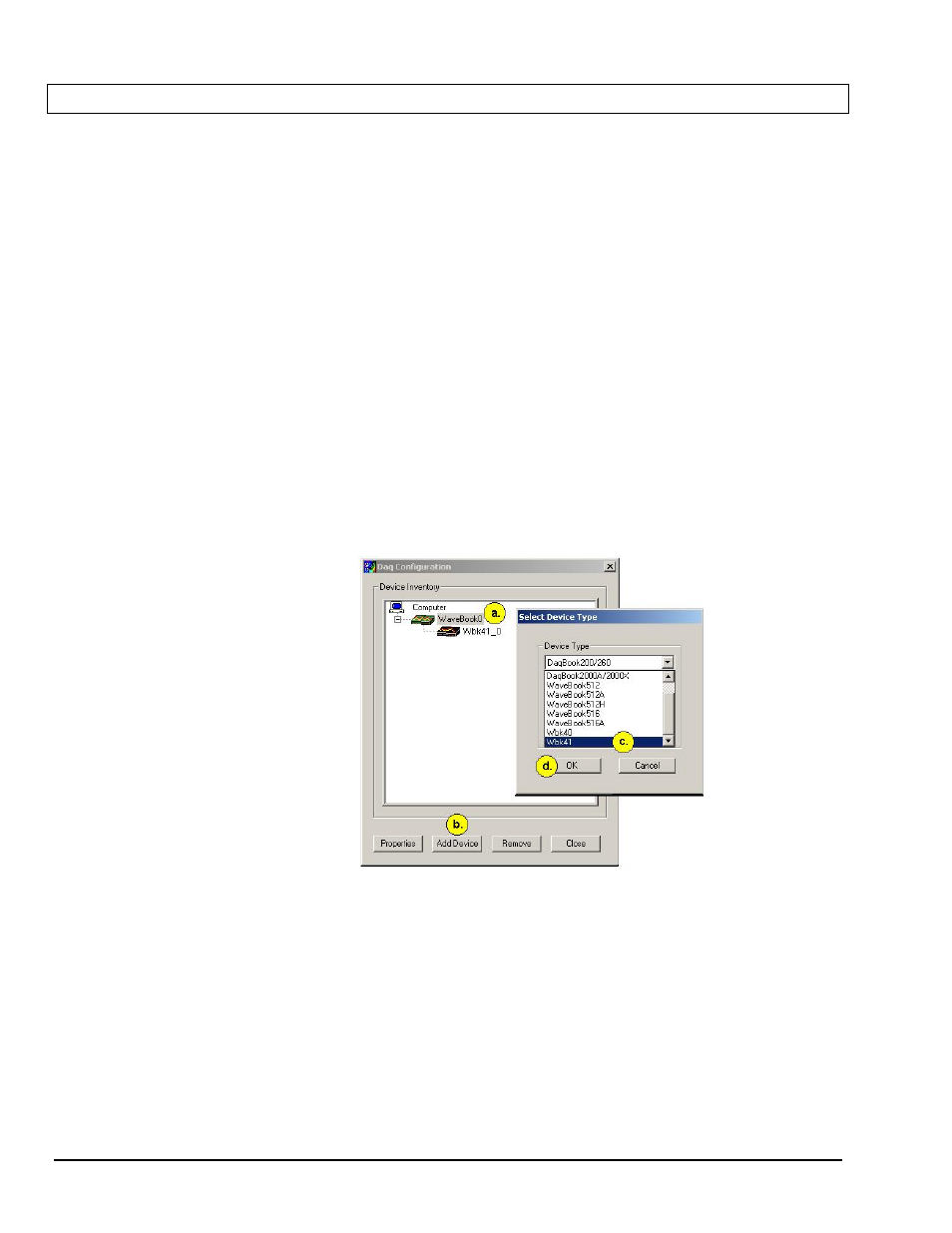

Adding a WBK40 or WBK41 to a WaveBook/516E or WBK25
Note: Devices have default names, for example, WBK40_0. If desired, you can change the device name.
