4 INTERFACING
The PCM-DAC08 has 8 single ended analog outputs, 9 analog grounds, 1 interrupt
input, 8 digital inputs/outputs, 1 +5V output and 6 digital grounds. A chassis ground
is in the cable shield clips to either side of the 33 pins of the connector.
4.1 PCM-DAC08 CONNECTOR

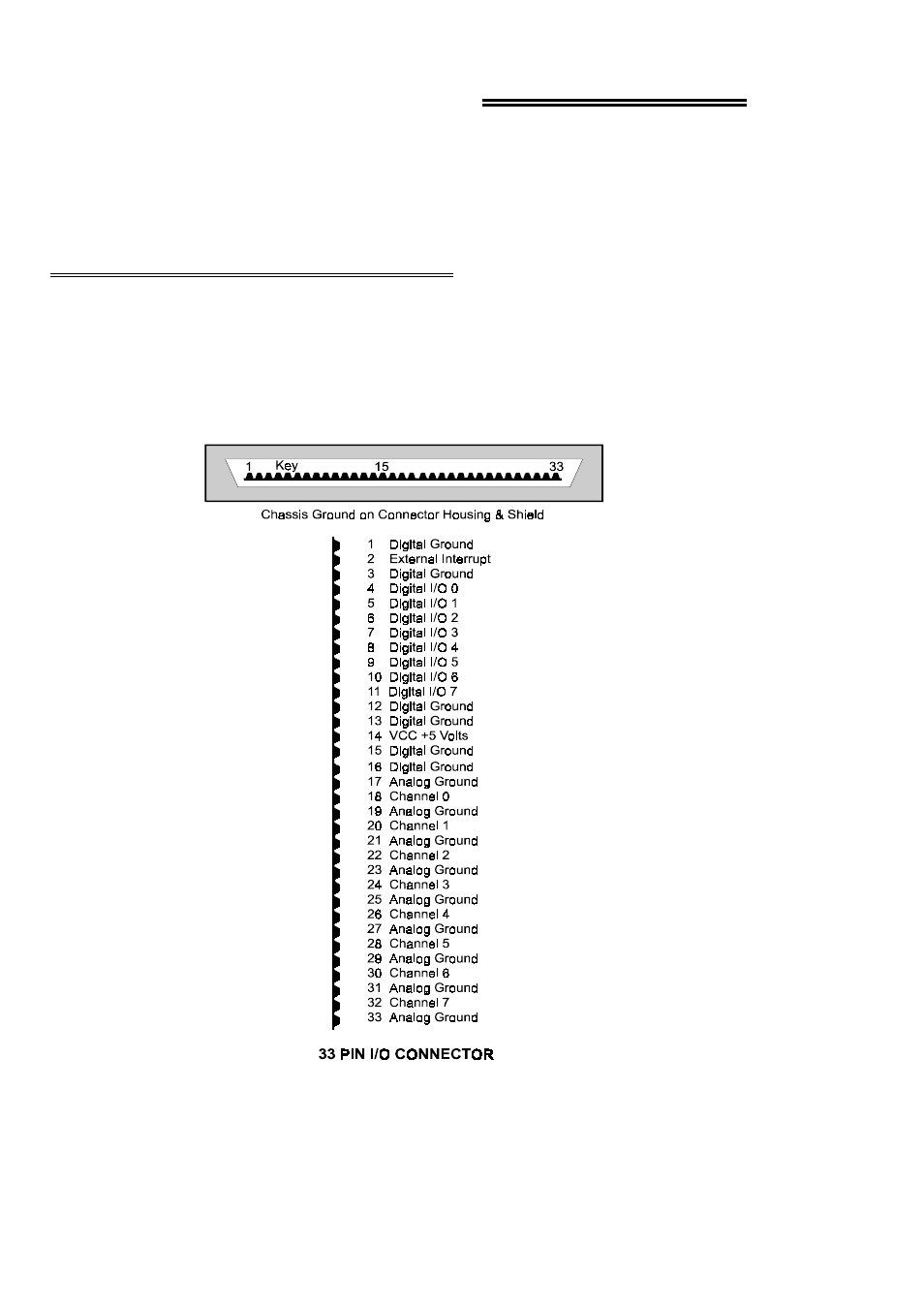

Shown here is a PCM-DAC08 case looking into the connector which connect a signal
cable or screw terminal box and cable to. The KEY helps to insure that the cable is
inserted in the correct orientation.
