...or with the Teach-in procedure
Adjust detect point
Place object at position
Press T2 until »d« is shown
Current measu-
ring value
Press T2 until »End« is
shown
Adjust window mode
Place object at position
Press T2 until »d« is shown
Place object at position
Current measu-
ring value
Press T2 until »End« is
shown
Current measu-
ring value
Adjust two-way reflectiv
barrier
Place object at position
Set NOC/NCC
Set window margins
Place object at position
Press T2 until »d« is shown
Current measu-
ring value
Press T2 until countdown
passed from »- 8 -« to »- 0 -«
and NOC or NCC symbol is
displayed
Press T2 until countdown
passed from »- 8 -« to »- 0 -«
and »End« is displayed
To change output function
press T2
Press T1 and T2 simultaneous-
ly until »End« is displayed
Symbol
NOC or NCC
Press T1 until »IU« is shown
Place object at position
Symbol
NOC or NCC
Press T1 until »End« is shown
Set rising/falling output
characteristic curve
Current measuring
value
Press T1 until countdown passed
from »- 8 -« to »- 0 -« and symbol
for rising/falling characteristic
is displayed
Sybol rising/falling
characteristis
Current measuring
value
To change output characteristic
press T1
Press T1 and T2 simultaneously until
»End« is displayed
Symbol steigende/
fallende Kennlinie
Normal mode operation
Normal mode operation
T1 + T2
T1
T2
T1 + T2
Press T1 and T2 simultaneously for about 13 s
until »Add« is shown in the LED-display
T1 + T2
T2
T1
Start here
T2
T1
T1 + T2
Ready
»- - -«: Display in
mm or. cm
»
«: Display in
%, 100% at mini-
mum measured va-
lue
»
«: Display in
%, 100% at maxi-
mum measured va-
lue
»C01«: Display
bright
»C02«: Display dim-
med
»C03«: Display off
To optimize multi-
plex speed the hig-
hest sensor address
may be set.
Setting range »01«
to »10«
»F00«: no filter
»F01«: standard fil-
ter
»F02«: averaging fil-
ter
»F03«: foreground
filter
»F04«: background
filter
Defines the strength
of the chosen filter.
»P00«: weak filter
up to
»P09«: strong filter
Affects the size of
the detection zone.
»E01«: high
»E02«: standard
»E03«: slight
Minimum value:
blind zone
Maximum value: ne-
arwindow limit - 1
Low power mode
Display mode
Choose current/
voltage output
Measurement filter
Filter strength
Foreground
suppression
Multiplex mode
device addressing
Multiplex mode
highest address
»Aut«: automatic
detection of the
load
»U«: voltage output
»I«: current output
»00«: synchronisati-
on
»01« to »10«: sensor
address for multi-
plex mode
»oFF«: synchronisati-
on deactivated
Minimum value: sen-
sor-distant window
margin
Maximum value: 999
mm for mic+
25/...,mic+35/...,
999 cm for mic+
130/...,mic+340/...,
mic+600/...
Measurement range
Calibration
display
Detection zone
sensitivity
Put plane reflector
vertically disposed in
front of sensor: in
an exact distance of
250 mm for mic+
25... and mic+35...
and 900 mm for all
other typs.
Adjust display to
250 mm or 900 mm.
Confirm calibration
with T1 + T2.
T1 + T2
T1
T2
T1 + T2
T2
T1
T1 + T2
T1
T2
T1 + T2
T2
T1
T1 + T2
T1
T2
T1 + T2
T2
T1
T1 + T2
T1
T2
T1 + T2
T2
T1
T1 + T2
T1
T2
T1 + T2
T2
T1
T1 + T2
T1
T2
T1 + T2
T2
T1
T1 + T2
T1
T2
T1 + T2
T2
T1
T1 + T2
T1
T2
T1 + T2
T2
T1
T1 + T2
T1
T2
T1 + T2
T2
T1
T1 + T2
T1
T2
T1 + T2
T2
T1
Delay in seconds
between the detec-
tion of an object
and the output of
the measured dis-
tance in case of ob-
ject approach (beha-
ves as on-delay).
"00": 0 s (no delay)
up to
"20": 20 s response
time
Response time
T1 + T2
T1
T2
T1 + T2
T2
T1
Note
Changes in the Add-on
menu may impair the
sensor function.
A6, A7, A8 , A10 , A11,
A12 have influence on
the response time of
the sensor.
Hysteresis
switched output
Minimum value:
»001«
Maximum value: dif-
ference between
maximum range and
detect point - 1
During window
mode operation hys-
teresis influences
both detect points.
T1 + T2
T1
T2
T1 + T2
T2
T1

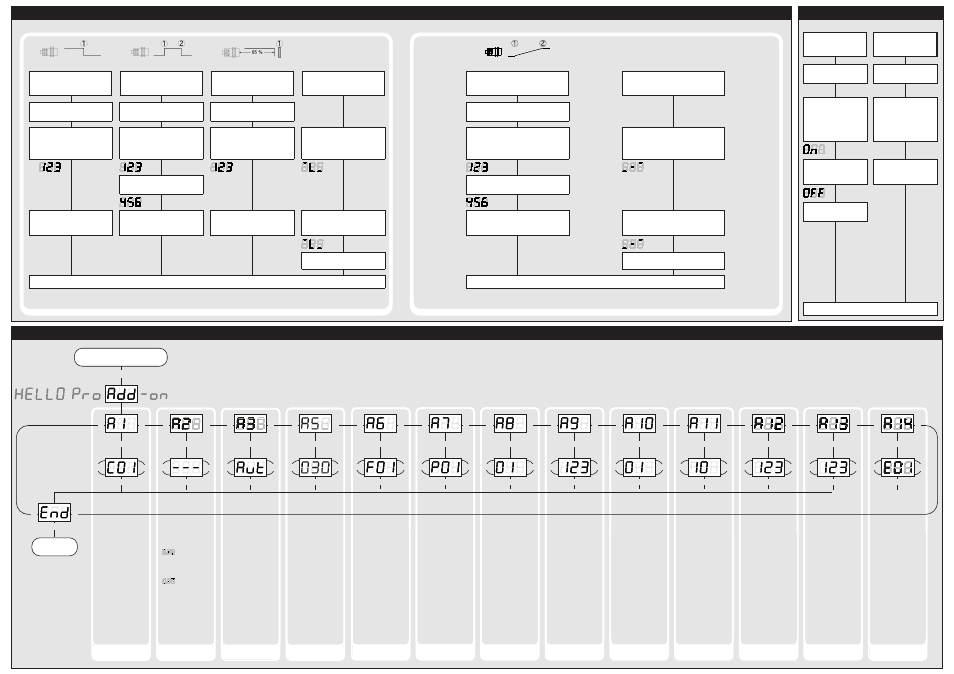

Usefull additional functions in Add-on menu (for experienced users only, settings not required for standard applications)
Teach-in switched output
Teach-in analogue output
Key lock and factory setting
Activate/deactivate
TouchControl
Reset to factory set-
ting
Turn supply voltage
OFF
While pressing T1 turn
supply voltage ON
until »on« or »off« is
displayed
Turn supply voltage
OFF
Turn supply voltage
ON while pressing T1
and keep it pressed
for ca. 15 s until
»rESEt« has passed
through the display
To activate or
deactivate press T1
»on« or
»off«
To activate or
deactivate press T1
»on« or
»off«
Normal mode operation
Release T1 before
turning supply
voltage OFF
