26

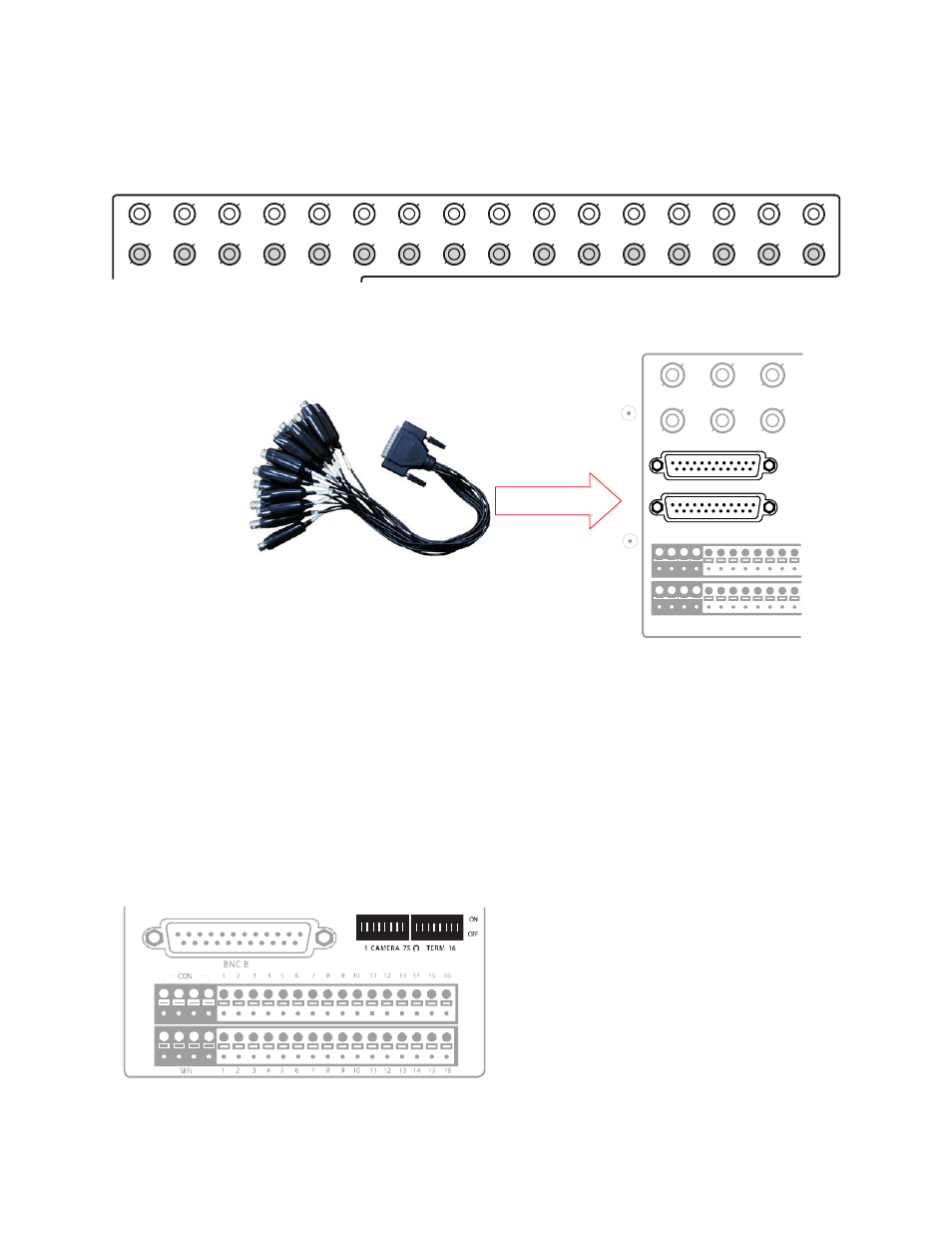

Looping Outputs
The 8/16 Channel X4 HVR has up to 16 looping outputs. Depending on the destination of the looping
outputs, each one may have to be terminated.
CH 1 in CH 2 in CH 3 in CH 4 in CH 5 in CH 6 in CH 7 in CH 8 in CH 9 in CH 10 in CH 11 in CH 12 in CH 13 in CH 14 in CH 15 in CH 16 in
CH 1 Out CH 2 Out CH 3 Out CH 4 Out CH 5 Out CH 6 Out CH 7 Out CH 8 Out CH 9 Ou t CH 10 Out CH 11 Out CH 12 Out CH 13 Out CH 14 Out CH 15 Out C H 16 Out
The 32 Channel HVR has up to 32 looping outputs. Connect the included 16 Channel BNC Connector
Cables to the 16 Channel Cable Adapter ports.
The video inputs/outputs are 75 Ώ BNC connectors. Make sure there is a video source connected to the
input and then connect a cable to the Channel Out on the BNC Connector Cable. The looping outs can
be connected to video monitors or combined with adapters to connect to VCRs.
Looping Output Termination
When it is necessary to terminate a looping output, the HVR has built in termination that allows users to
select individual outputs. It is not always necessary to terminate the output; it depends on the device to
which you are connecting. As a rule, if the image appears distorted or virtually unviewable, it likely
needs to be terminated.
8/16 Channel
Always leave the dipswitch set to the ON position when the Looping Outputs are not used.
ON Not connected to a monitor (Normal)
OFF Connected to a monitor (Looped)
CO N T ROL
1 2 3 4 CO M
S E N S O R
O N
O F F
O N
O F F
B N C A
B N C B
