- 10 -

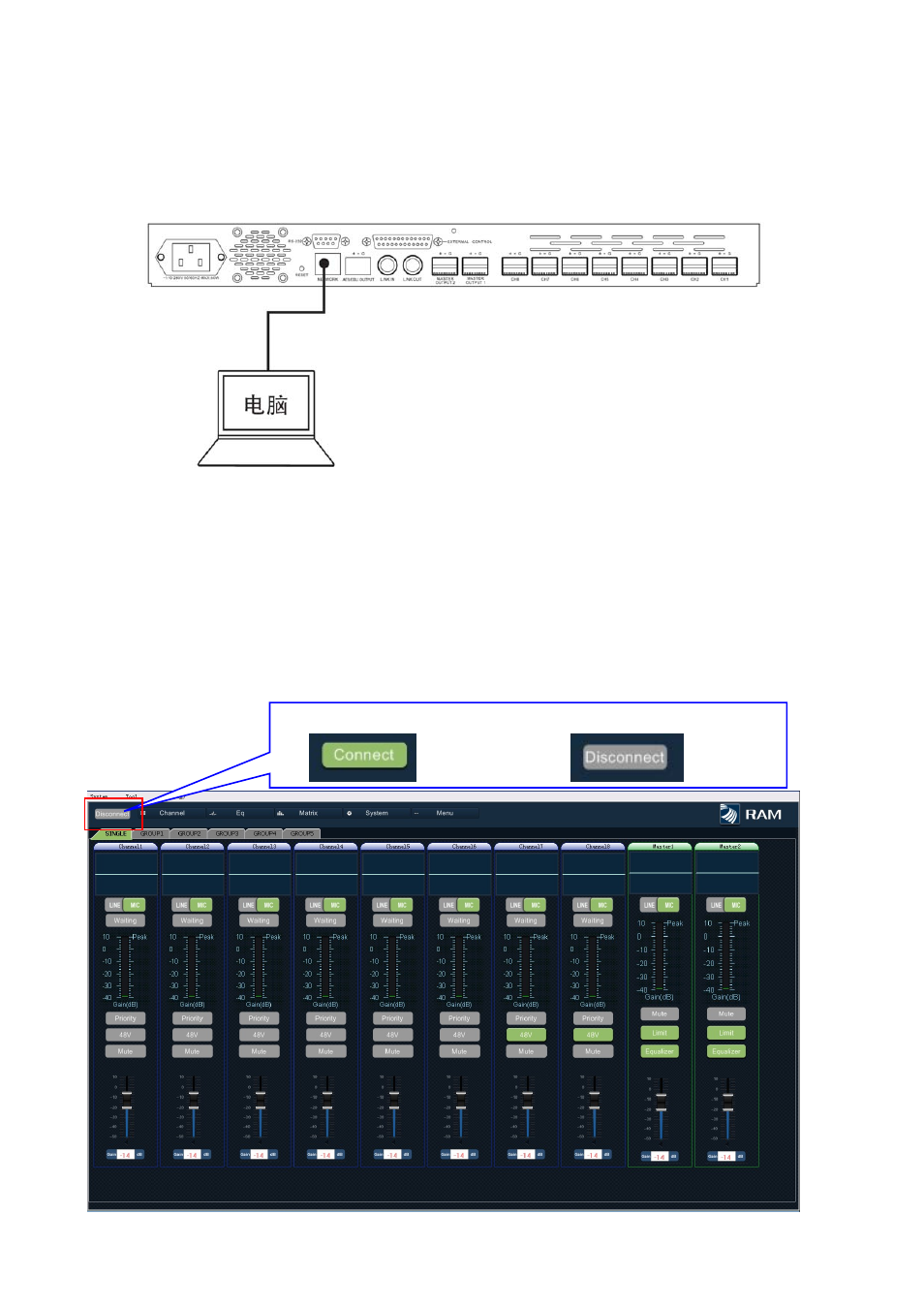

2、Mixer connection with the computer - the rear panel NETWORK interface of the automatic mixer
connect with a computer network port by a network cable, turn on the DAM-800 power switch. (As shown
in Fig)
3、Software start-up and connection – decompress the downloaded software, then double click to
open the software application "RAM 1.0”.
Open the software, enter the main interface,then click System and select "Connect" to make the
software communicate with DAM-800 host . If the connect successful, the "Connect" will display
green . The operate computer interface can overall control mixer operation. If shown in gray
"Disconnect", that is to say, the connection is not successful. Please check the front steps whether have
mistakes, or restart the DAM-800 host. (As shown in Fig)
Interface display:
Connection Successful Connection is not successful
