6. System Setup and Operations
Interface and Input Signal Option
VSP 198CVS User Manual 87
Interface and Input Signal Option

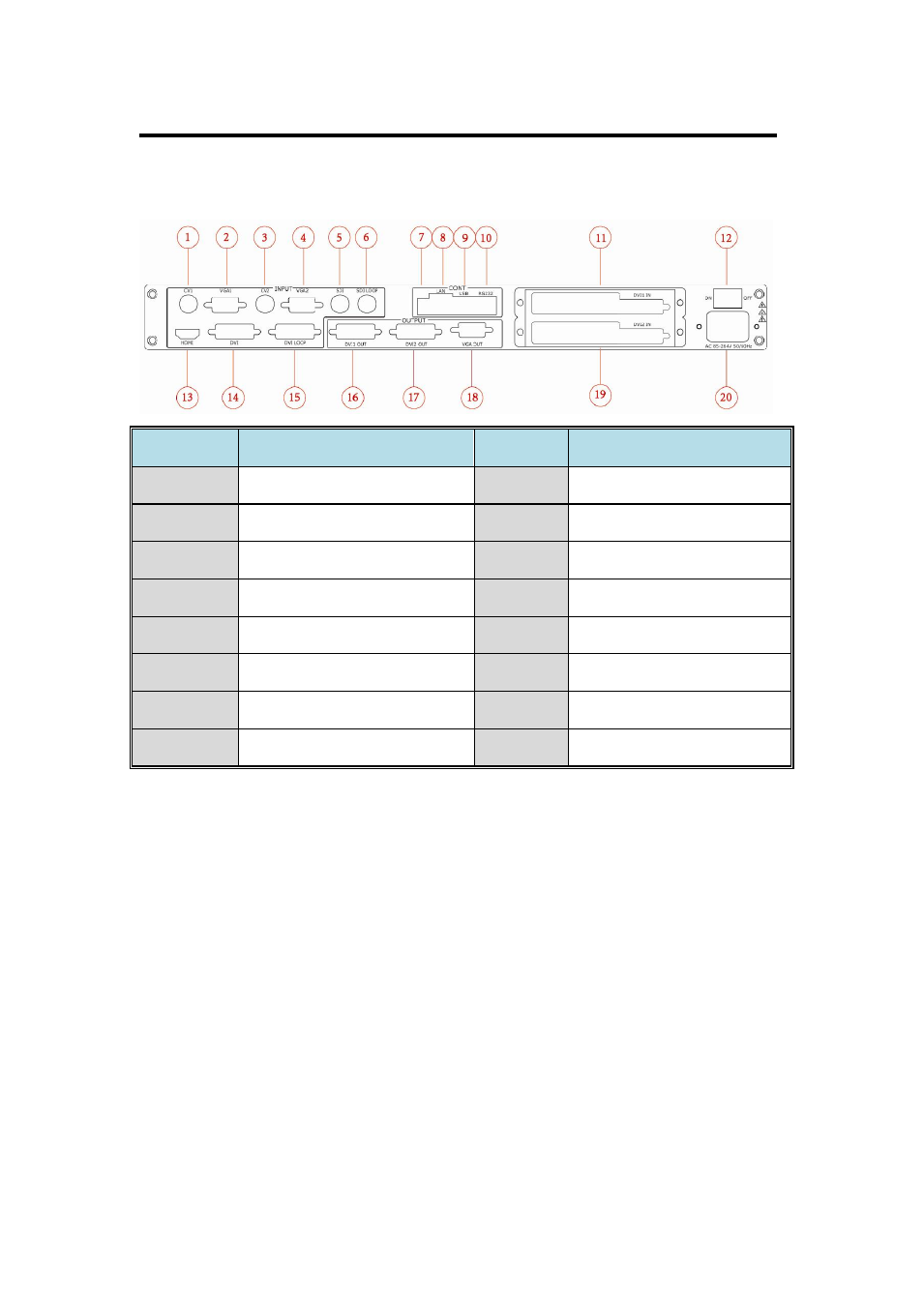

VSP 198CVS Back Panel:
NO INTERFACE NO INTERFACE
1.3 CVBS input Interface 11.19 Sending card interface
2.4 VGA input Interface 12 Power switch
5 SDI input Interface 13 HDMI input Interface
6 SDI loop output Interface 14 DVI input Interface
7 Dial the code switch 15 DVI loop output Interface
8 10/100M control Interface 16.17 DVI output Interface
9 USB control Interface 18 VGA output Interface
10 RJ11(RS232) control Interface 20 Power input interface
16. 17. DVI output, default the main image output, use for connecting the
sending card of LED screen, VSP 198CVS support resolution format as
following:
800x600x60Hz, 1024x768x60Hz, 1024x768x75Hz, 1280x720x60Hz,
1280x720x50Hz, 1280x768x60Hz, 1280x800x60Hz, 1280x1024x60Hz,
1360x768x60Hz, 1366x768x60Hz, 1400x1050x60Hz, 1440x900x60Hz,
1600x1200x60Hz,1680x1050x60Hz,1920x1080x60Hz,1920x1080x50Hz,
1920x1200x60Hz, 2048x1152x60Hz, 2560x812x60Hz, 2560x816x60Hz.
