slowly lift up on one edge of the SENSOR BOARD. Pulling the SENSOR BOARD off
fast could damage the foam pad.

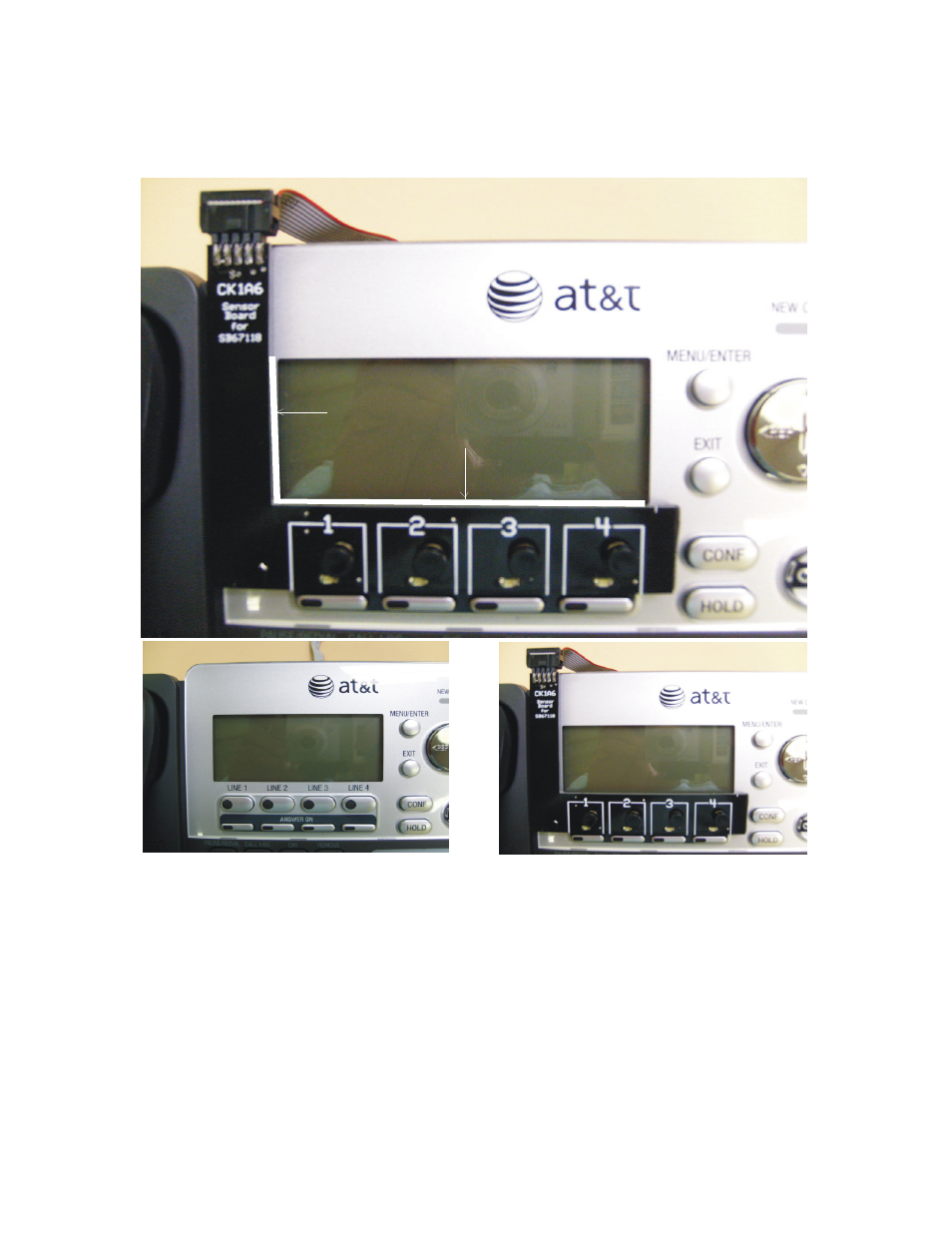

Align to Edges
of Display Window!
Fig. #2
Before
After
3- Position the CK-1A6 box under the base telephone with the jacks facing towards the
back of the phone. (See Fig. 3).
