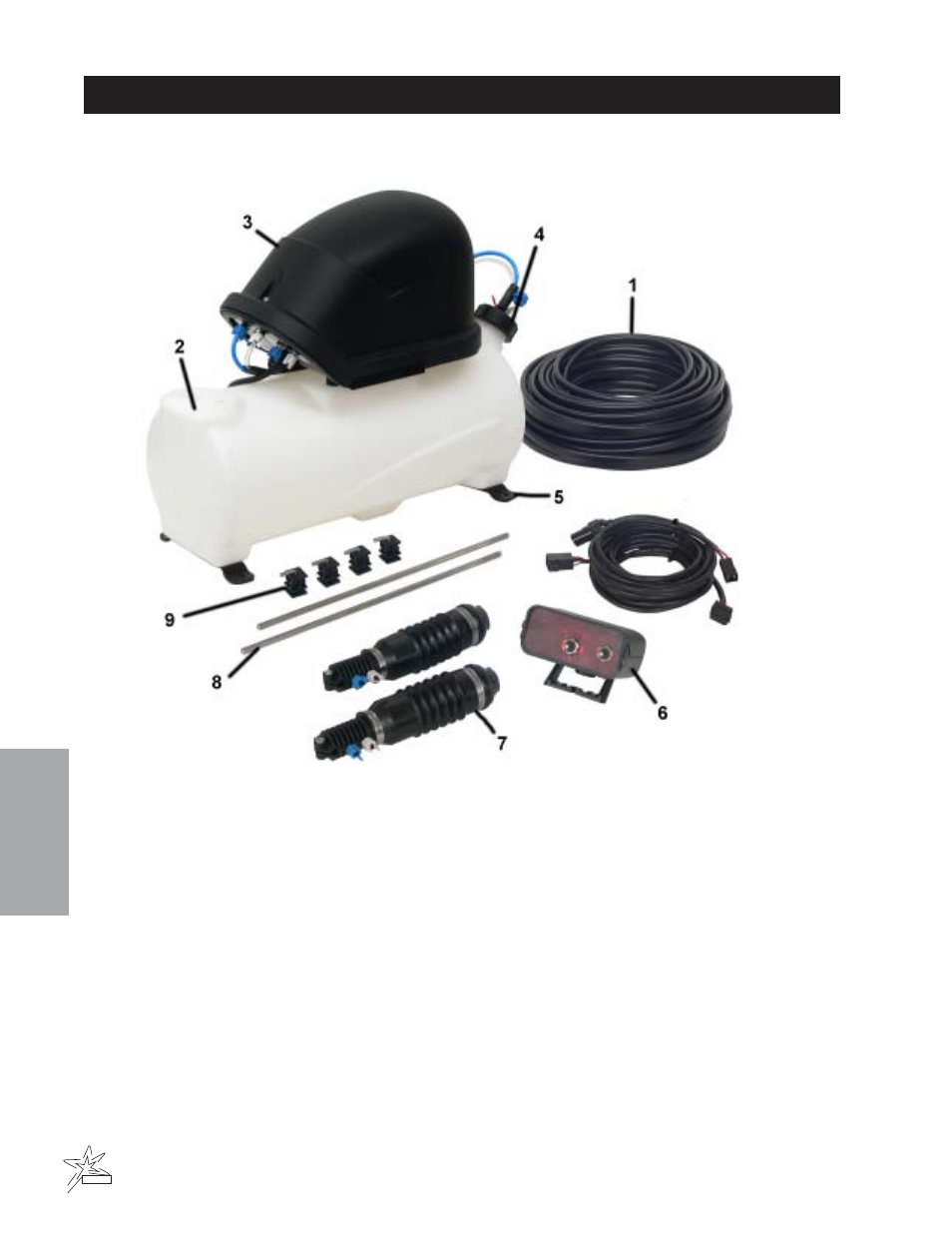

FOAM MARKER DRAWING

REF#

PART#

DESCRIPTION

QUANTITY

1

15-507

Foamer Tubing

1

2

14-291-02

Tank

1

3

14-291-01

Black Cover

1

14-291-03

Compressor Complete

1

4

14-284-02

Cap Assembly

1

5

14-291-04

Tank Bracket

1

6

14-291-05

Double Switch Box

1

7

15-511

Foam Nozzle

1

8

15-510-01

Nozzle Mounting Rod

1

9

16-987

Foam Nozzle Mounting Kit

1

14-536

Compressor Subassembly
