Accessories

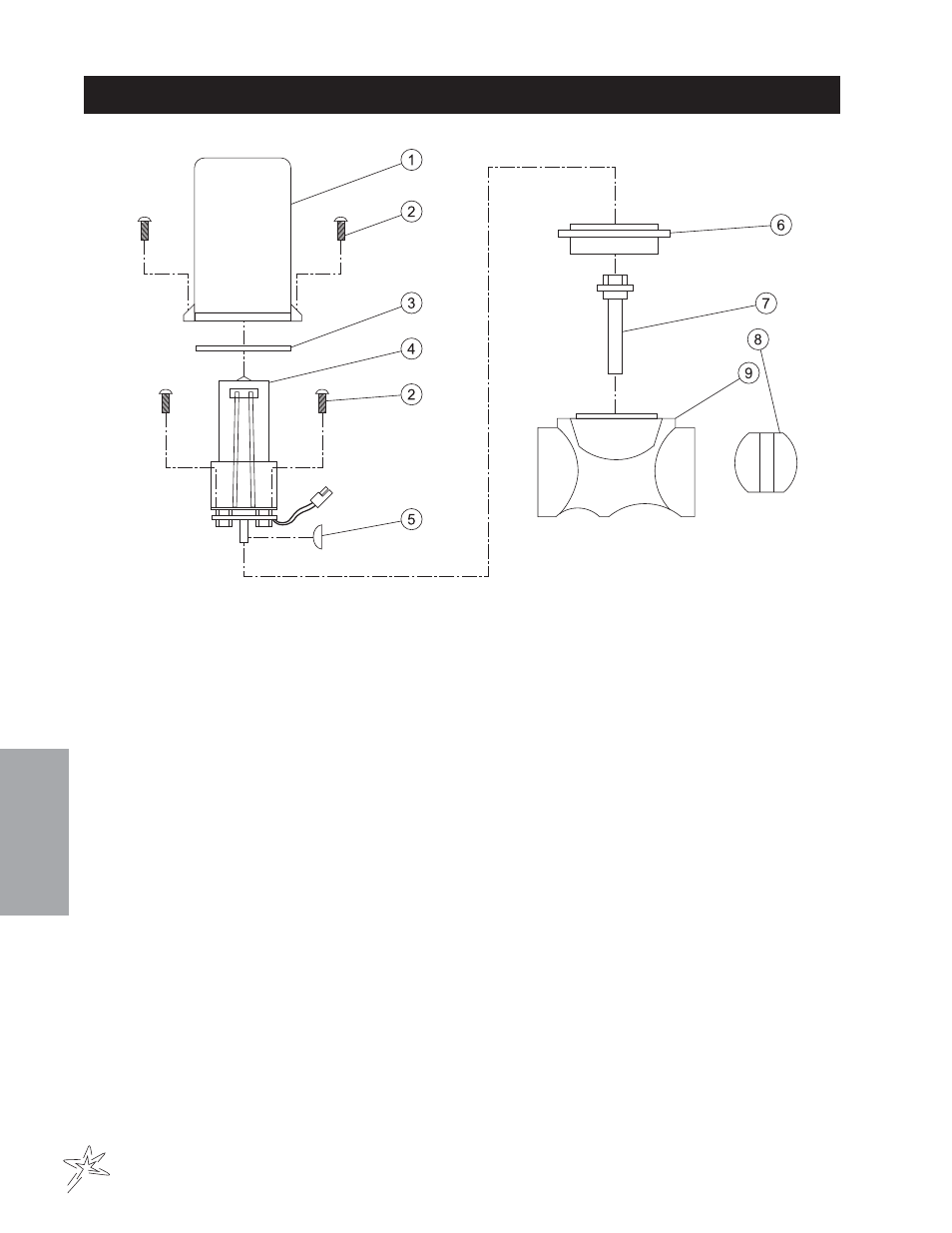

16-524 MOTORIZED CONTROL VALVE DRAWING
REF# PART# DESCRIPTION QUANTITY
1 16-870 Valve Cover 1
2* 16-524-01 #6 Self Tapping Screw 3 /
4
" Long 6
3 16-897 Tetra Seal 1
4 16-875 Motor Assembly (For 16-524) 1
4 16-866-01 Motor Assembly (For 16-995) 1
5* 16-957 Woodruff Key 1
6* 16-524-04 Isolation Flange Assembly 1
7* 16-524-02 Coupler Shaft 1
8* 16-956 Butterfly 1
9* 16-524-03 Valve Body Assembly 1
* 16-524-05 1" Valve ISO-Body Kit
WHEN SERVICING VALVE:
Replace valve body with ISO-Body Kit if valve has been leaking internally.
Replace motor assembly if the motor will not run or if the printed circuit board is corroded.
Before reassembling valve, remove the coupler shaft from the valve body. Apply Loctite to coupler shaft and woo-
druff key. Place the coupler shaft (Ref 7) and the woodruff key (Ref 5) onto the motor shaft. Plug motor into the
valve connector coming from Sprayer Control Console. Check that the motor rotates in both directions. Motor
must stop when coupler CAM releases printed circuit board switch button.
When reassembling valve, grease both sealing surfaces of coupler shaft. Insert coupler shaft into Iso-flange and
be sure seal properly seats on shaft. Install on valve body and apply RTV 738 to mounting holes. Reassemble
remaining items as shown in parts diagram on opposite side.
