Setup
DM-3200
The IF-FW/DM’s mixer inputs must be
configured in banks of 8 in the
CH1-16 IN
and
CH17-24 IN
layer select of the mixer’s
Routing screen.
For 24 channel operation:
• Set
INPUT CH1-8
to
A:SLOT1
,
1-8
• Set
INPUT CH9-16
to
B:SLOT1
,
9-16
• Set
INPUT CH17-24
to
A:SLOT1
,
17-24
DM-24
The IF-FW/DM’s mixer inputs must be con-
figured in banks of 8 in the
CH1-16 IN
and
CH17-24 IN
tabs of the mixer’s I/O screen.
For 24 channel operation:
• Set
RETURN CH1-8
to
A:SLOT1
,
Trk1-8
,
FW 1-8
• Set
RETURN CH9-16
to
B:SLOT1
,
Trk9-16
,
FW 9-16
• Set
RETURN CH17-24
to
A:SLOT1
,
Trk17-24
,
FW 17-24
Set the
INPUT SOURCE
to
RETURN

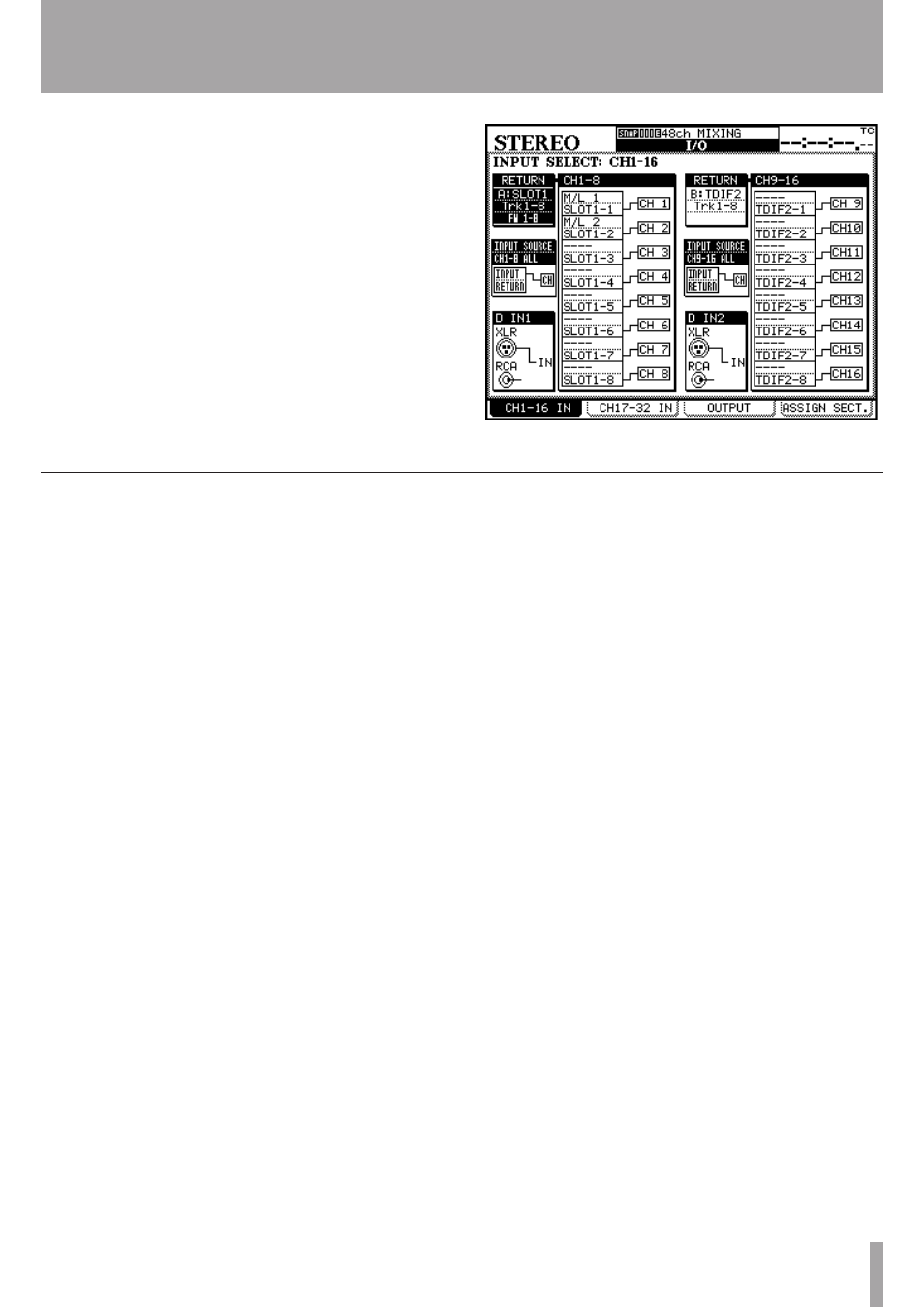

Mixer Inputs
DM-24
By default, the DM-24 duplicates busses 1 -
8 on IF-FW/DM mixer outputs 1 - 8, 9 - 16,
and 17 - 24.
Also available are the Direct Outputs from
channels 1 - 16 on the DM-24. By default,
those appear on IF-FW/DM mixer outputs 1
- 16.
These routing settings can be changed in the
OUTPUT
tab of the DM-24’s I/O screen.
