Q - S e r i e s A C T - 1 0 P r o d u c t M a n u a l , D e c e m b e r , 2 0 1 4 Page 7
For enhanced reliability, the ACT-10 has a hot- swappable modular design for use with Thinklogical’s
flexible and resilient Q-Series Chassis. A Q-4300 Chassis, offering redundant and hot-swappable
power supplies, supports up to four ACT-10 modules in only a single RU. Additional chassis are
available, such as the VTS-Q04200 T-Series chassis, designed to support one T-Series and up to
two Q-Series modules, as shown below.
Velocity
Receiver
Velocity Transmitter
Source CPU
DVI 1
Data IN/OUT
DVI 2
DVI OUT 1 DVI OUT 2
ACT-10 RX VQM-ACT001-LCRX
DVI 2 Display RX VTM-U00024-LCRX
4 Module Chassis VTS-Q04200
ACT-10 TX VQM-ACT001-LCTX
DVI 2 Display TX VTM-U00024-LCTX
4 Module Chassis VTS-Q04200
* Service provider to support
Layer 2 VLAN as per SLA
requirements defined in the
ACT-10 Data Sheet
Service provider
Ethernet WAN PHY
Service provider Ethernet
WAN PHY
10G Ethernet
IEEE 802.3ae LAN PHY
(Multi-mode fibers up to 300m)
WAN WAN
*Service
Provider
Network
10G Ethernet
IEEE 802.3ae LAN PHY
(Multi-mode fibers up to 300m)
ACT-10 Chassi s models:
VQS-004 300
VQS-002 300
VTS-Q042 00
ACT-10 Receiver
ACT-10
Transmitter
6G local fibers
6G local fibers

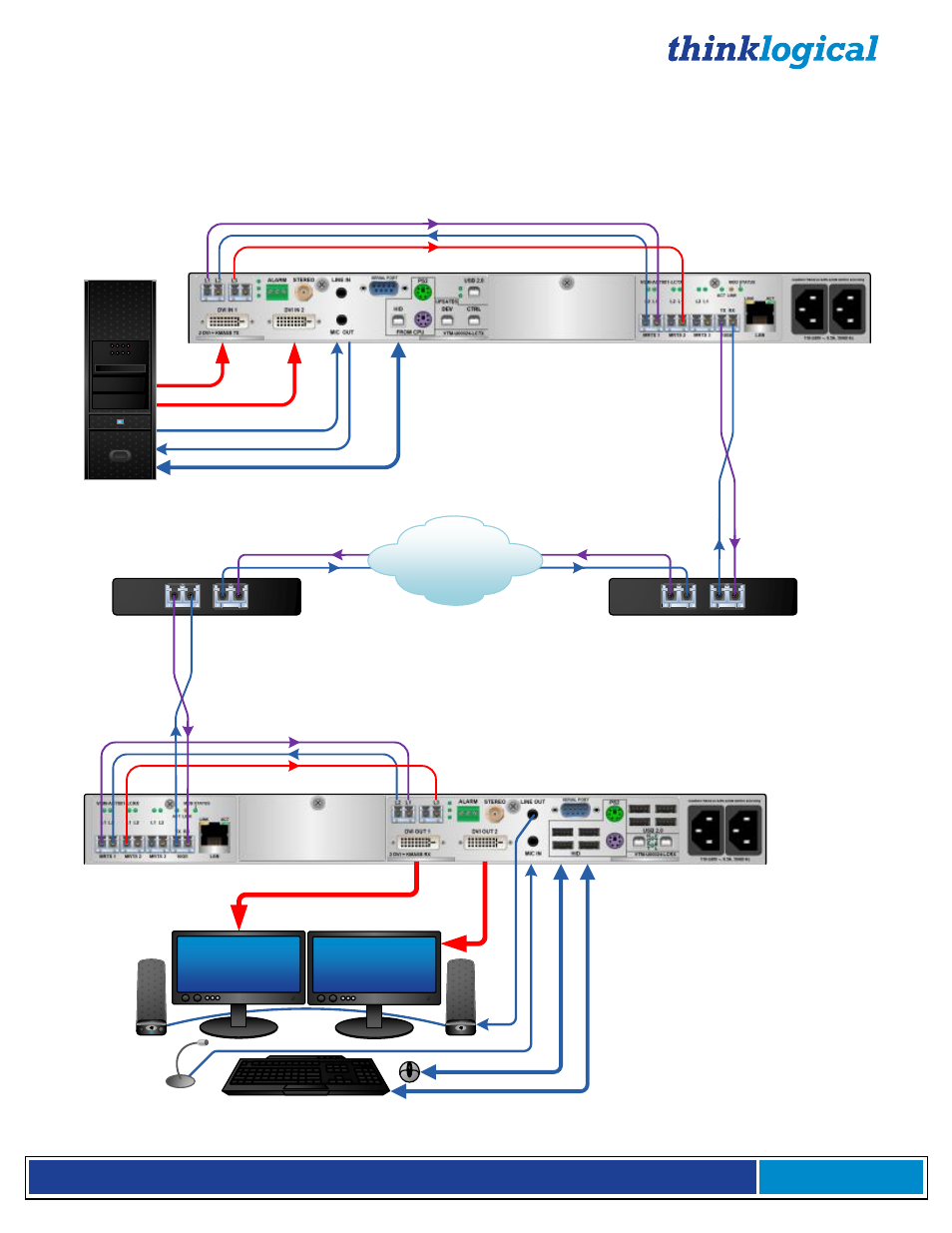

A typical ACT-10 application using a VTS-Q04200 T-Series/Q-Series Chassis
