ACTi Indoor Dome (D5xE5x) on Hard Ceiling with Pendant Mount - Manual (Page 3)

www.acti.com
Installation Guide
3
Installation Procedures
In case of high ceilings, the camera can be lowered by pendant mount. For simplicity, the camera
images used in the succeeding sections were taken using the camera model with heat sink; same
procedures apply to the model without heat sink unless specified.
NOTE: The Pendant Mount is not included in the camera package. Contact your sales agents to
purchase.

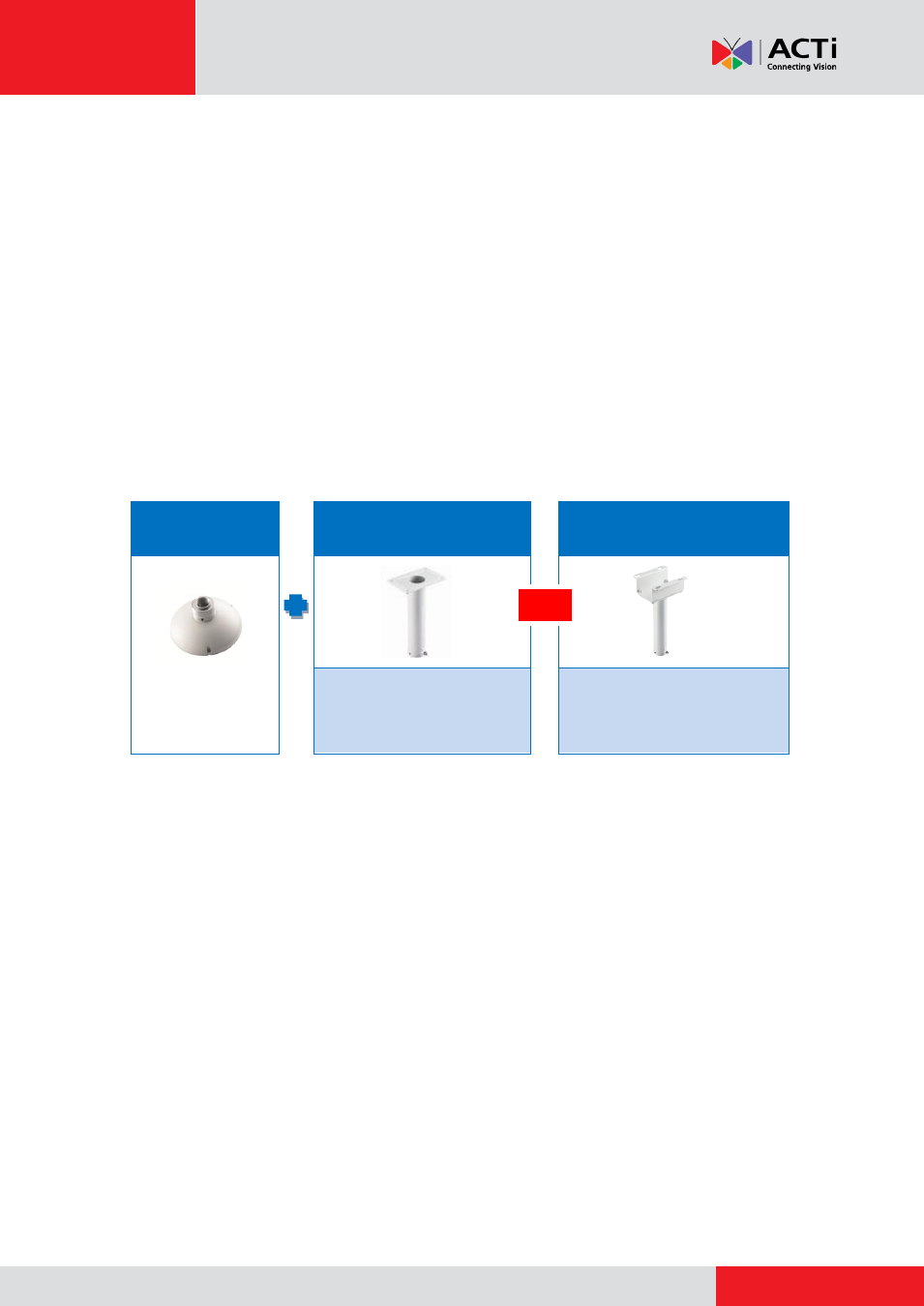

Prepare the following:

SMAX-0051 (PMAX-0101 and PMAX-0102)
or SMAX-0503 (PMAX-0101 and PMAX-0103)
PMAX-0101
PMAX-0102
(Straight Tube without Bracket)
PMAX-0103
(Straight Tube with Bracket)
Use this configuration if the
cable can directly enter the
ceiling. Use this configuration if the cable
cannot directly enter the ceiling
and must go along the ceiling.

Mounting Screws (included in the mount kit package)

Network Cable (not included)

Phillips Screwdriver (not included)
or
