KCM-3911 Hardware Manual
15
Installation Procedures
There are several mounting options that you can use to install the camera. Select the most
suitable solution for your installation environment.

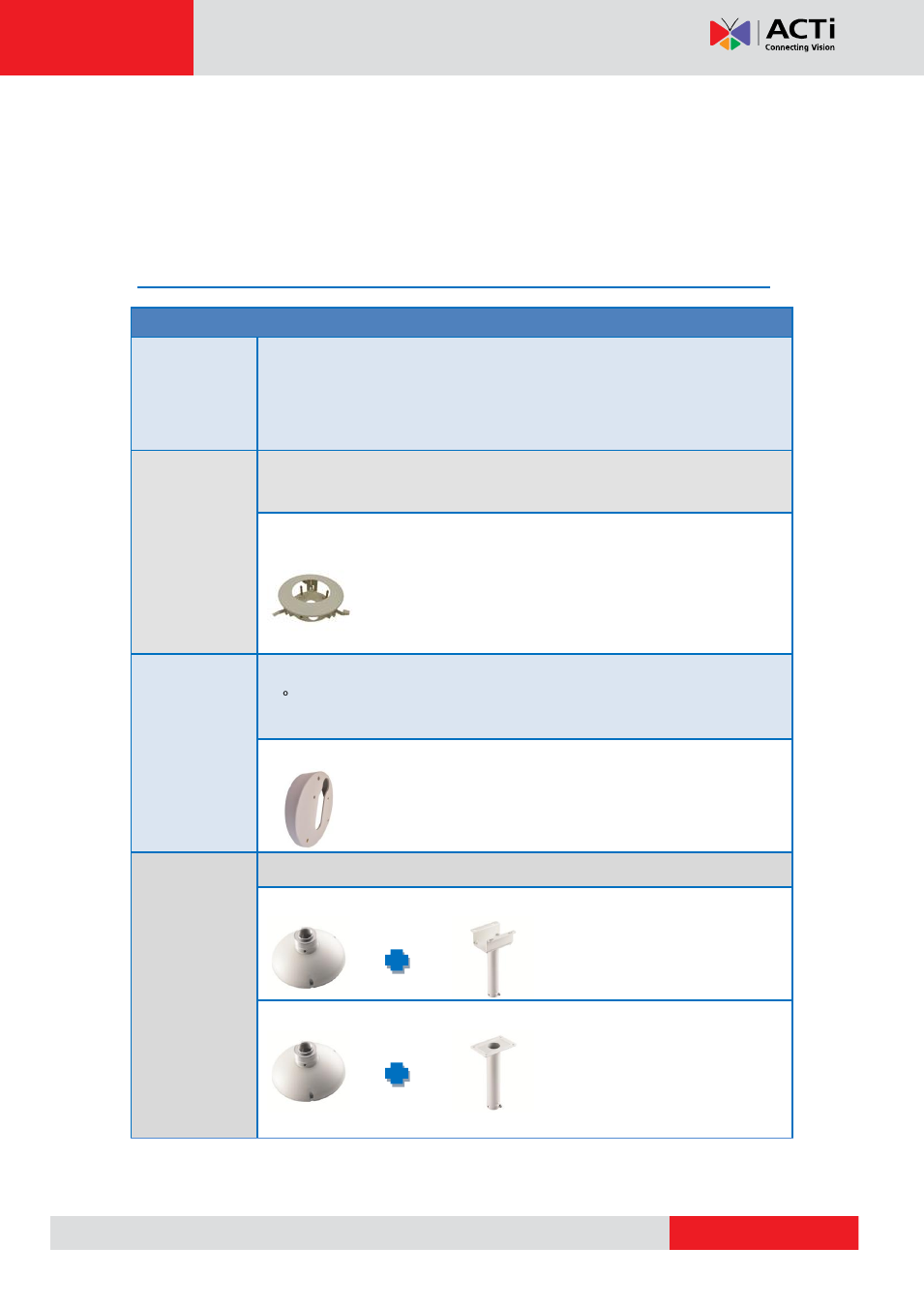

Mounting Solutions
Mount Types Accessories
Surface using
the Base Plate
Use the supplied base plate when mounting the camera on hard or dropped
ceilings or on straight walls. Do not directly install the camera on the
surface. See Mounting on the Ceiling or Wall with the Base Plate on
page 17.
Flush Mount Suitable when mounting the camera discretely above dropped ceilings
wherein only the front panel will be visible underneath the ceiling.
PMAX-1009
Tilted Wall
Mount
Suitable when mounting the camera on high walls. The camera can be tilted
10 to capture a larger viewing angle below the camera and less on the
ceiling.
PMAX-0310
Pendant Mount Suitable when mounting the camera on hard and high cielings.
PMAX-0101 PMAX-0103
PMAX-0101 PMAX-0102
