AML M2500 Decoder User Manual
Page 18
14
INSTALLING AND USING
THE MS941 TRIGGERLESS LASER
INSTALLATION
After installing the decoder box according to the instructions in the general
"Installation Instructions" section, you are ready to connect the laser.

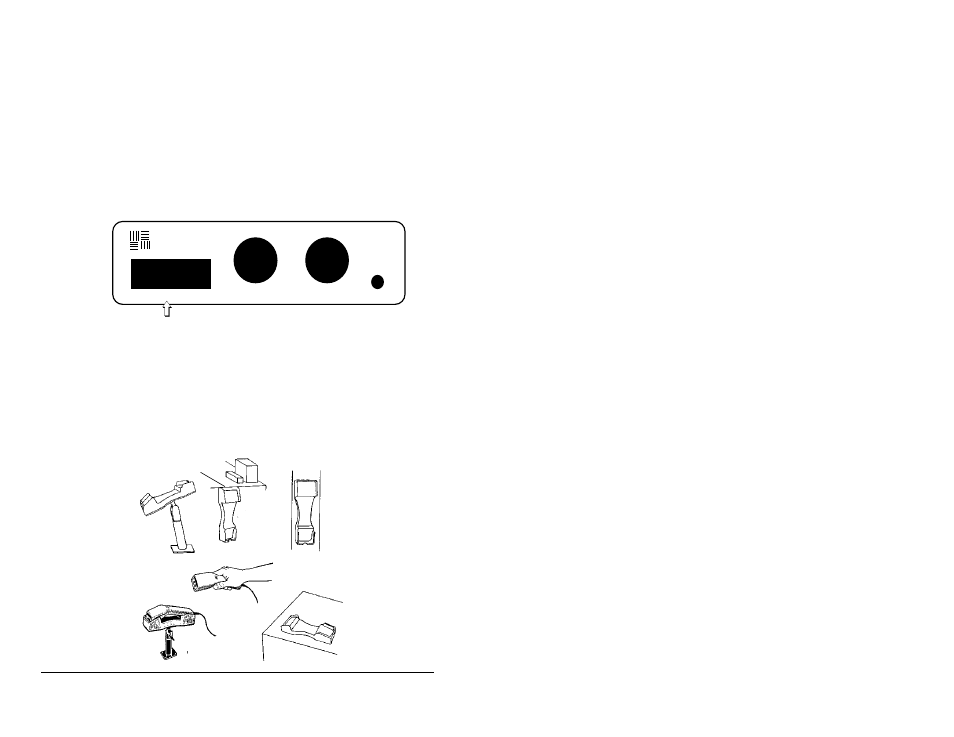

Step 1:
Plug the end of the laser's cable into the square connector labeled
"LASER" located on the front panel of the reader. See the diagram
below:
Step 2:
For "hands-free" scanning, note the following:
The cradle can be removed from the stand and set on a horizontal
surface (on its rubber feet), or mounted directly to a horizontal or
vertical surface.
The cradle has magnets which hold the LASER in place.
POWER
LASER
MICROSCANNER
MSR
WAND
AMERICAN
MICROSYSTEMS
HANDS-FREE
SCANNING
STAND
VERTICAL
COUNTER MOUNT
VERTICAL
WALL MOUNT
HANDS-FREE
HORIZONTAL
COUNTER MOUNT
HAND-HELD
