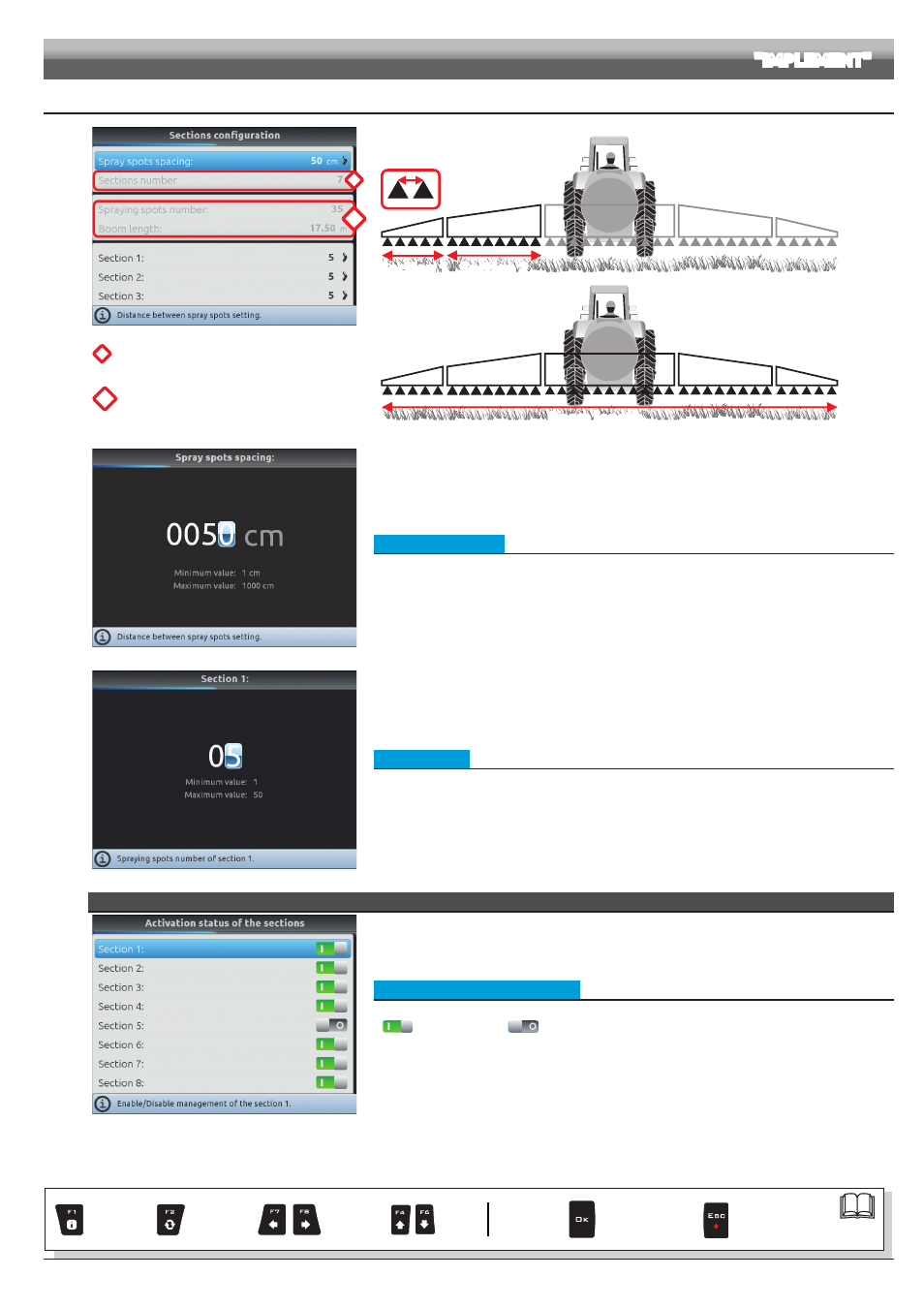

10.1.1 Sections configuration
**
*
Fig. 56
* The item Sections number is shown as
REMINDER: it is activated during the guided setup
(ch. 9). It can not therefore be modified on this screen.
**
Depending on the selected settings, the number
of spraying points as well as the value of the boom
width, displayed in Fig. 56, will change.
Section 2
Boom length
Section 1
Spray spots
spacing
Fig. 57
Fig. 58
• Spray spots spacing
Indicate the distance between spraying points (nozzle holders).
Fig. 59
• Section 1 ÷ 13
- Indicate the number of spraying points (nozzle holders) installed on each boom section.
- Repeat the setup for each section (Fig. 56).
SECTIONS MANAGEMENT
Fig. 60
• Activation status of the sections
Allows to enable/disable specific boom sections.
(
Enabled section / Disabled section).
- Select the section you wish to set up.
- Repeat setup for each section (Fig. 60), by disabling the non-connected outputs.
