94

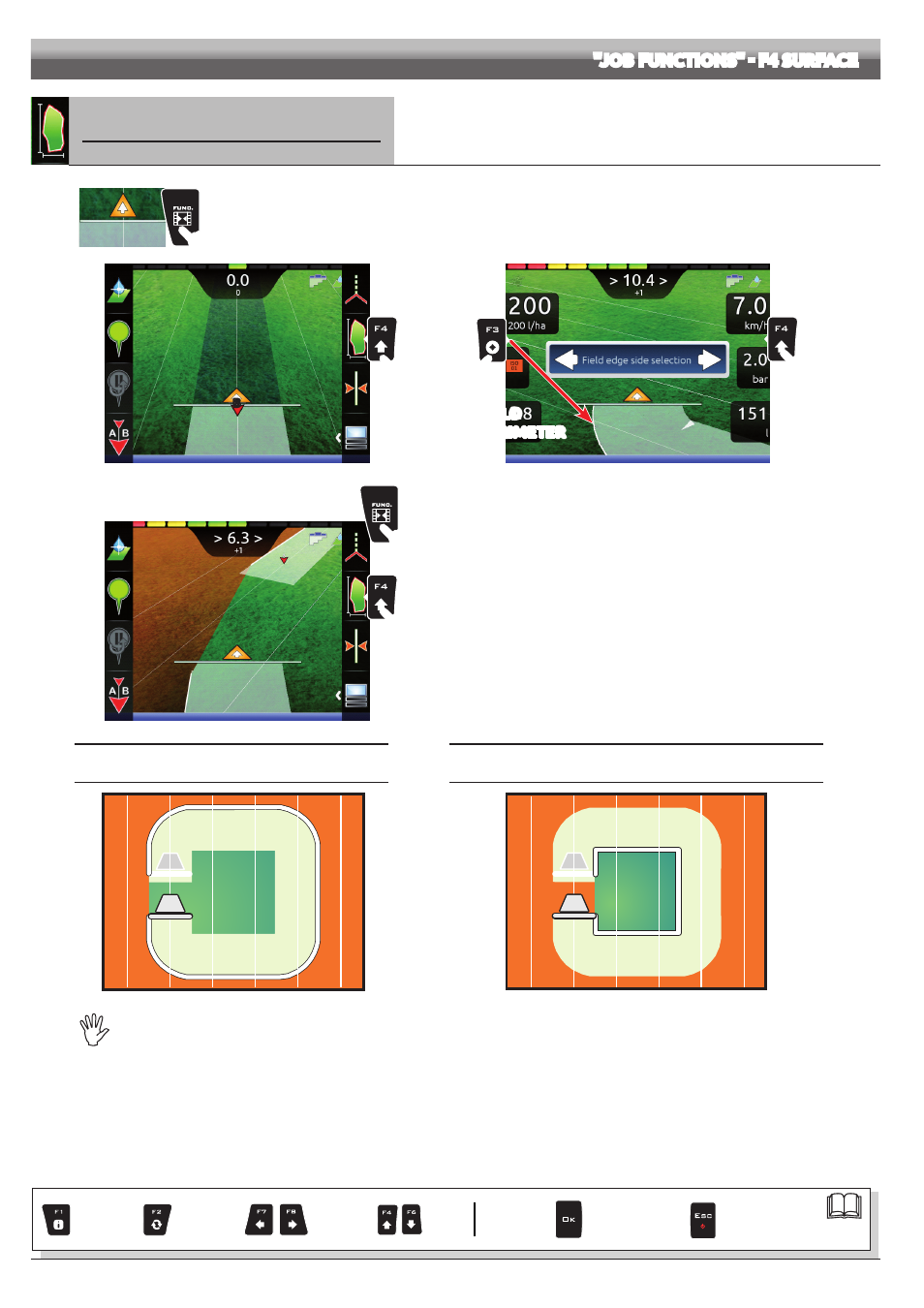

"JOB FUNCTIONS" - F4 SURFACE
15.4 F4 Surface Enables the procedure to calculate field surface by driving along its perimeter.

1
1 In the guidance screen, press FUNC .
2 Press F4 to start the surface calculation procedure (function list disappears).
The following message will appear: Field edge side selection prompting the operator to select which side of the machine to use as a
reference to define the field perimeter.
3 Press F3 (Left) or F4 (Right): a white line will be displayed to draw the field perimeter as the tractor moves (Fig. 328).

2
B
Fig. 327

3b

3a
FIELD
PERIMETER
Fig. 328

5

4
Fig. 329
4 Drive along the perimeter of the field or of the surface you wish to measu-
re. When you get close to the calculation starting point, press
FUNC again.
5 Press F4 to complete the surface calculation procedure (Fig. 329).
The computer will connect starting and end points and will calculate the
surface.
FIELD PERIMETER
ON MACHINE LEFT-HAND SIDE
FIELD PERIMETER
ON MACHINE RIGHT-HAND SIDE
Fig. 330 Fig. 331
The field external edge (white line) follows the trajectory of the most external open section valve.
When all section valves are closed, the field edge starts from the boom center.
Par.
7.4
Exits the function
or data change Confirm access
or data change
Scroll
(LEFT /
RIGHT) Delete
selected
character Increase /
Decrease
of data Scroll
(UP /
DOWN) Enter
selected
character
