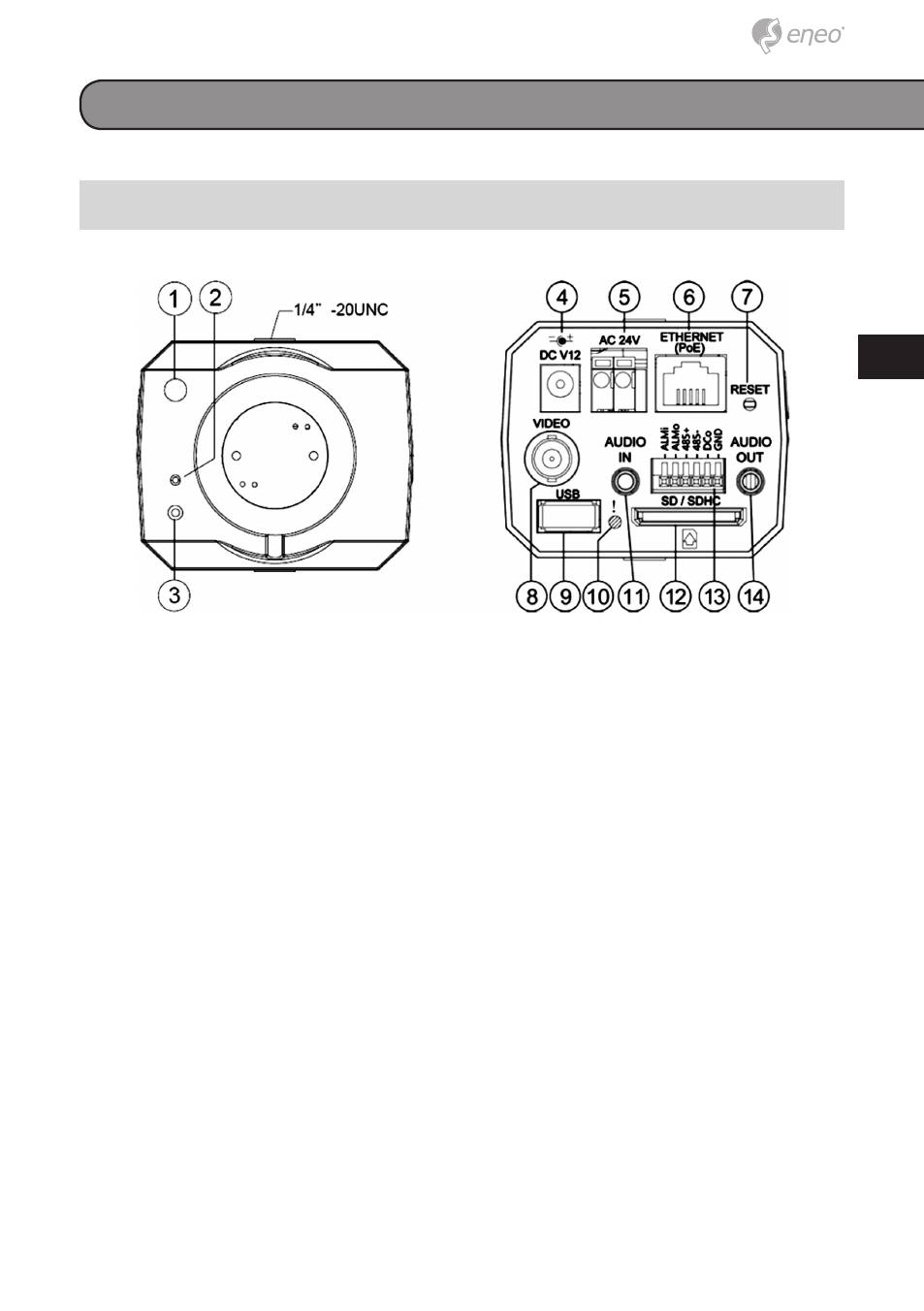

1. Front Panel & Rear Panel
Product description and connections
1. Light Sensor: Registers the quality of light in the camera’s environment,
and controls the iris shuttle to provide better information concerning the
light.
2. MICROPHONE: The IP Camera has an additional audio function. The
device has a microphone built into its front panel which records sound.
3. POWER indicator: Indicates the power status of the unit.
4. Plug Inlet: A DC 12V inlet that connects to an external power supply.
5. Plug Inlet: An AC 24V inlet that connects to an external power supply.
6. ETHERNET 10/100 Connector: This is a standard RJ-45 connector for
10/100 Mbps Ethernet networks. PoE (Power over Ethernet) function:
Provides power to the device via the same cable as used for the net-
work connection.
7. RESET: Recover to factory default.
8. VIDEO OUT Connector: The connector provides the unit’s composite
video signals to a monitor.
9. USB port: The user can use a USB device cable to connect the
IP camera to the USB port on the PC.
10. LED indicator: The green light indicates the unit is activating and the
SD card cannot be removed.
11. AUDIO IN: The connector is used to connect the audio output from
other devices to the camera.
