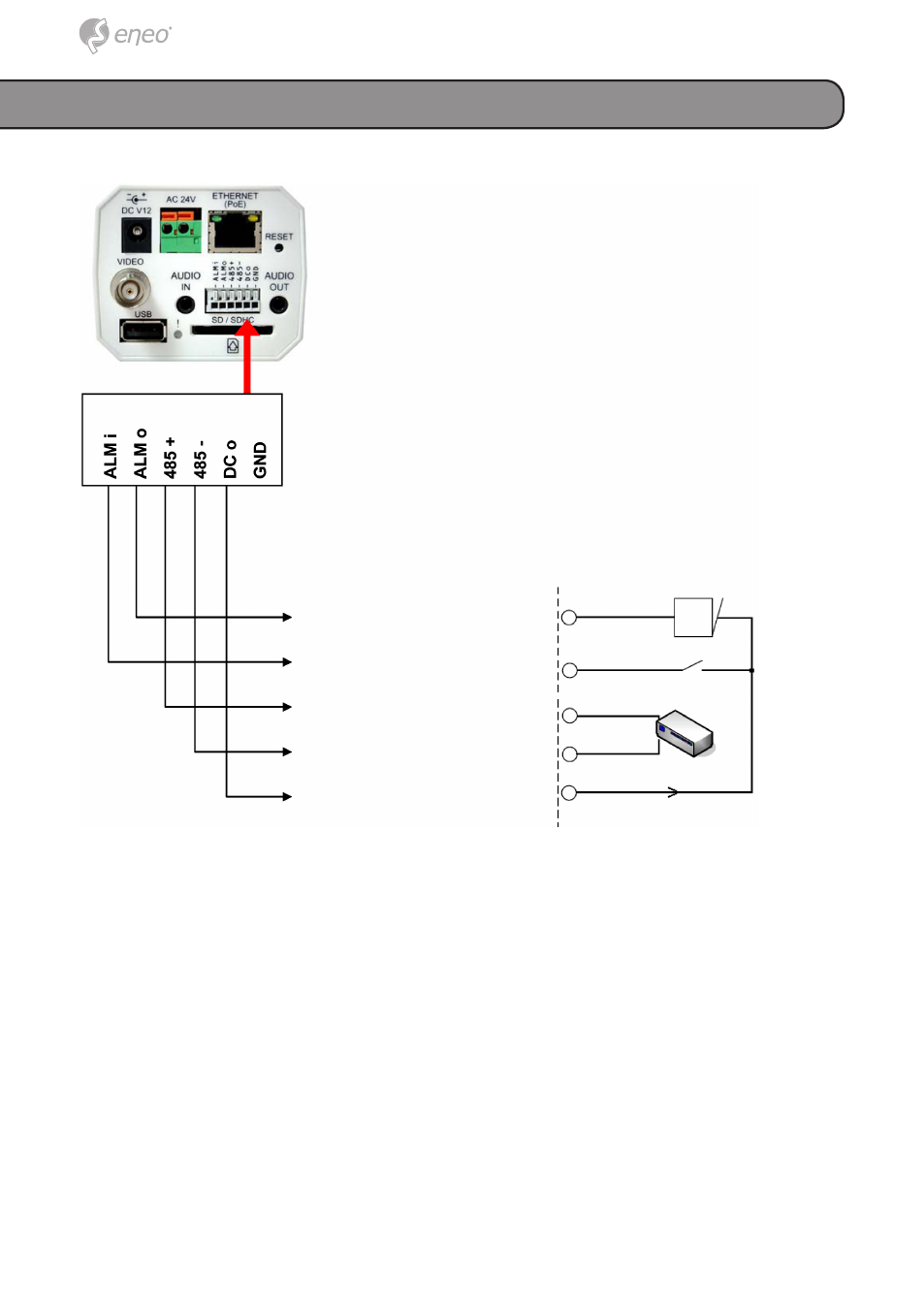

Alarm Wiring Diagram

Alarm output

Alarm input

RS-485 D+

RS-485 D-

DC out (GND)

+12V

+12V, 100mA

+12V

ALARM

RS-485 device
