FF CRC Error – same as AP CRC Error above except it is the Full Frame
which is transmitted incorrectly.
•
AP EDH Error – causes the AP EDH flag in the EDH packet to be set.
This simulates an error which was previously detected by upstream
equipment. The actual CRC will be correctly computed. This should be
detected downstream as an EDA error (Error Detected Already).
•
FF EDH Error – same as AP EDH Error above except the Full Frame flag
is also set.
•
AP EDA Error – causes the AP EDH flag to be set. This simulates a
stream where an error was detected by previous equipment. This error
should continue to be reported as EDA at every subsequent downstream
location.
•
FF EDA Error – same as AP EDA Error above except also sets the Full
Frame flag.
•

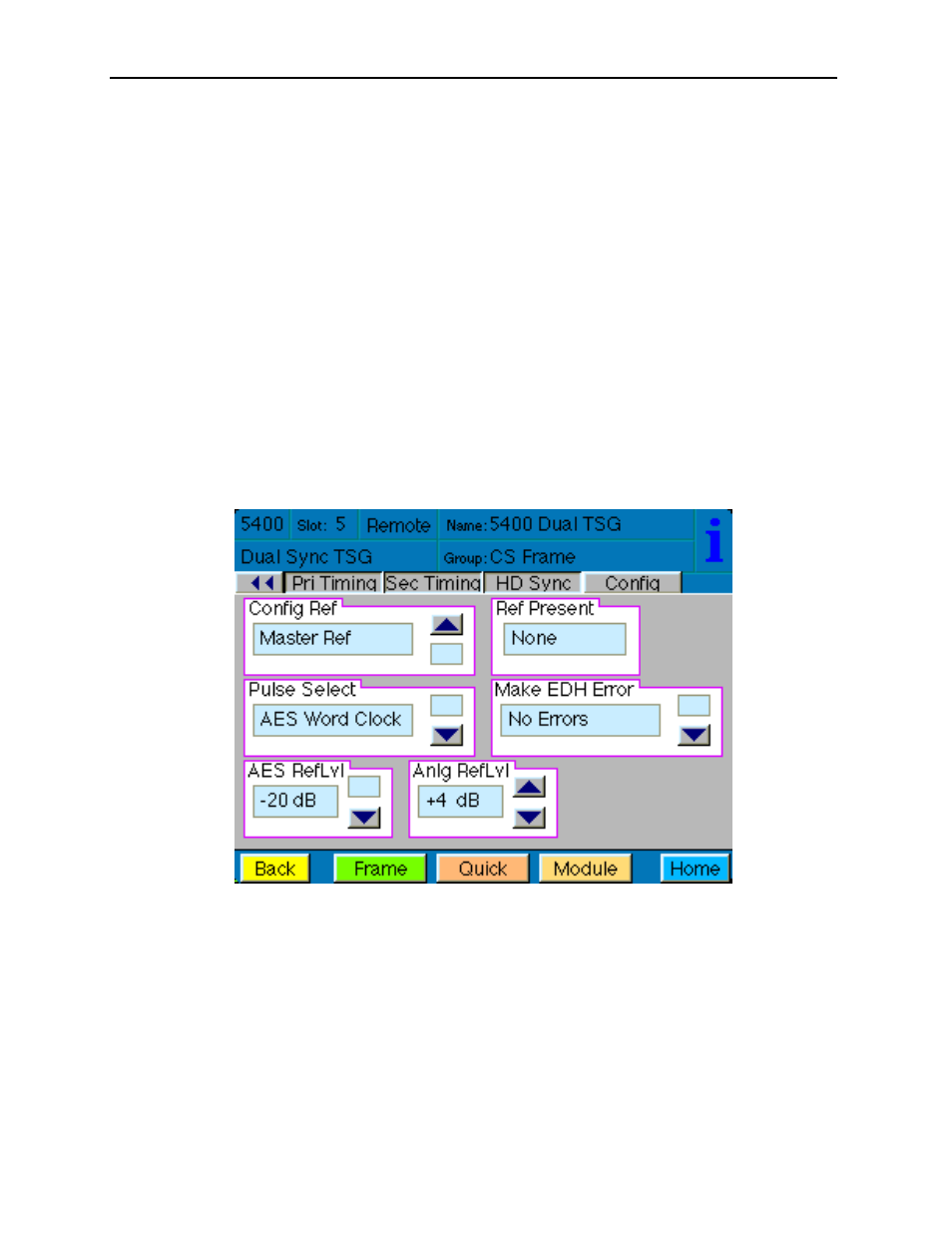

AES RefLvl – set the AES reference level to either -20 dB or -18 dB depending on
the audio requirement.
•
Anlg RefLvl – set the analog reference level from –10 dBu to +8 dBu for the
Analog Tone Output.
