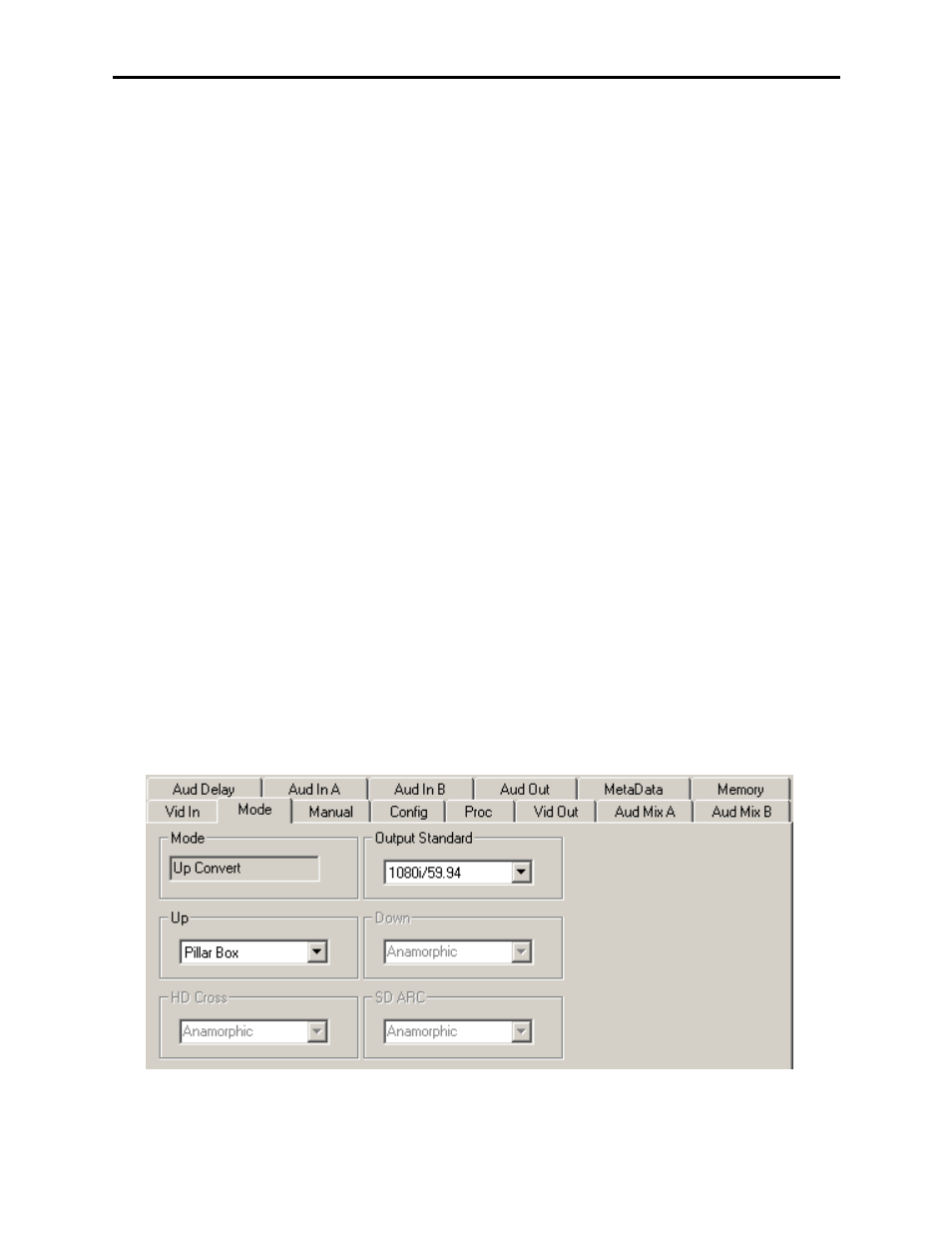

The Mode menu allows you to configure the following:
•
Mode – indicates the mode in which the unit is running (Upconvert,
Downconvert, Cross Convert, ARC [Aspect Ratio Convert]). The mode is
determined by the output selection made in the Format menu.
•
Output Standard – use this control to set the desired output format (HD
1080i, HD 720p, HD 1080p, HD 1080sF, SD). The unit automatically
detects the input standard.
•
Up – use this control to set the desired output aspect ratio when upconverting
the input signal (Anamorphic, Letter 16:9, Letter 14:9, Letter 13:9,
Pillar, Crop Sides 75%, Crop Sides 84%, Crop Top/Bot, WSS/AFD Auto
16x9, WSS/AFD Auto 14x9, WSS/AFD Auto 4x3, Manual). When
Manual is selected, use the Manual menu to set the aspect ratio.
•
Down – use this control to set the desired output aspect ratio when
downconverting the input signal (Anamorphic, Letter 16:9, Letter 14:9,
Letter 13:9, Pillar, Crop Sides 75%, Crop Sides 84%, Crop Top/Bot,
WSS/AFD Auto 16x9, WSS/AFD Auto 14x9, WSS/AFD Auto 4x3,
Manual). When Manual is selected, use the Manual menu to set the
aspect ratio.
•
HD Cross – use this control to set the desired output aspect ratio when
cross converting from one type of HD signal to another (Anamorphic,
Letter 16:9, Letter 14:9, Letter 13:9, Pillar, Crop Sides 75%, Crop
Sides 84%, Crop Top/Bot, WSS/AFD Auto 16x9, WSS/AFD Auto 14x9,
WSS/AFD Auto 4x3, Manual). When Manual is selected, use the Manual
menu to set the aspect ratio.
•
SD ARC – use this control to set the desired output aspect ratio when
aspect ratio converting between 4:3 and 16:9 (Anamorphic, Letter 16:9,
Letter 14:9, Letter 13:9, Pillar, Crop Sides 75%, Crop Sides 84%,
Crop Top/Bot, WSS/AFD Auto 16x9, WSS/AFD Auto 14x9, WSS/AFD
Auto 4x3, Manual). When Manual is selected, use the Manual menu to
set the aspect ratio.
