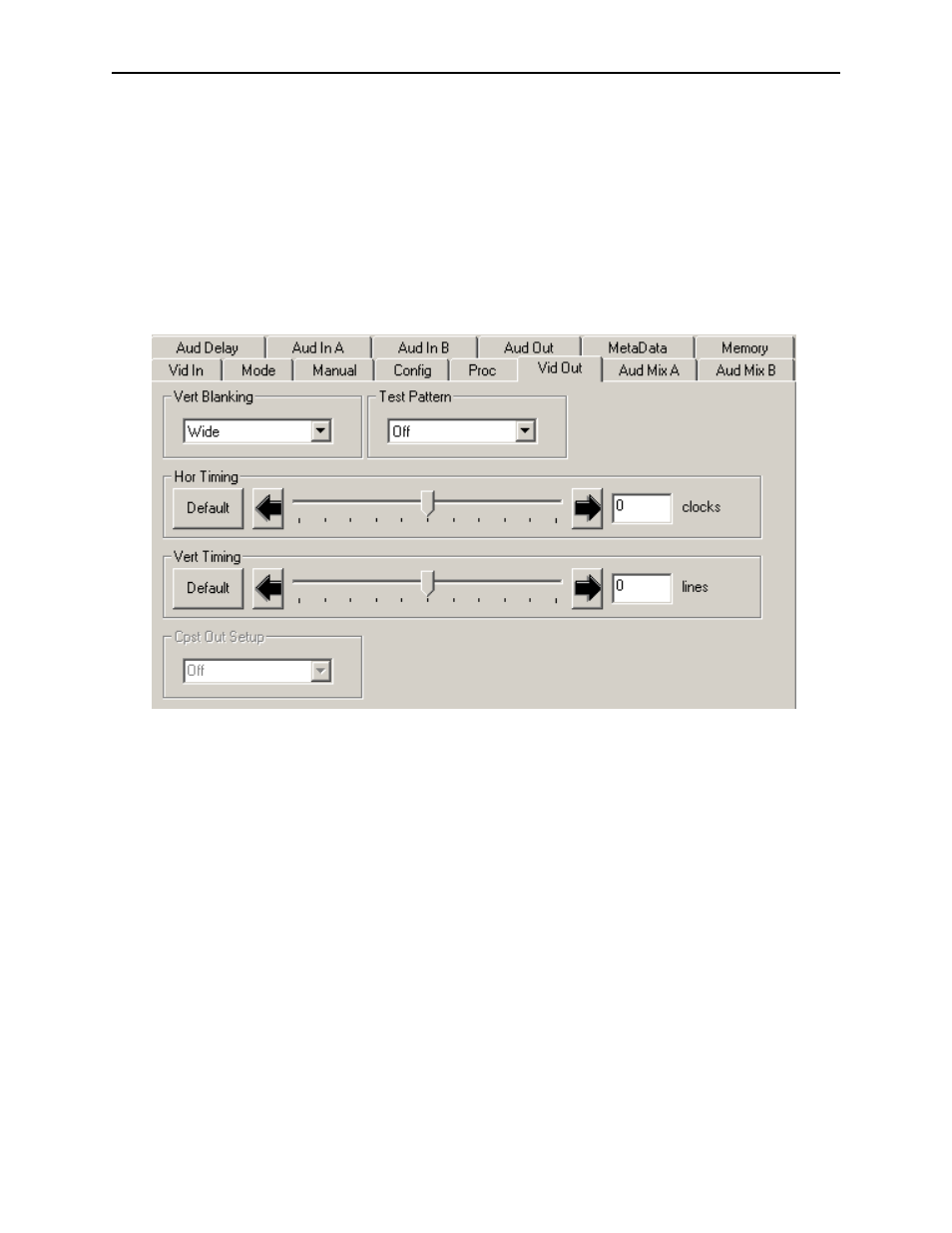

Use the Vid Out menu shown below to adjust the following parameters:
• Vert Blanking – set the blanking mode to Narrow (lines 1-9 are blanked in
NTSC, lines 1-6 in PAL) or Wide (lines 1-20 in NTSC, lines 1-22 in PAL).
• Test Pattern – select Bars or Black to be sent to the video output.
• Hor Timing – adjust the horizontal timing of the output signal to place the
leading edge of sync coincident with other sources.
• Vert Timing – set the vertical timing to a typical setting of 0 lines.
• Cpst Out Setup – turn setup on the composite output On or Off (525 only) when
switch S3 and/or S4 is configured as CPST on the circuit board for an SD output.
