Using the 2000NET GUI
2000NET Module Interface
This section describes GUI functions for the 2000NET module.
2000NET Status Web Page
The 2000NET Status web page ( Figure 22 ) provides:
• Module identity, frame location, and pass/fail status of module,
• Status icons reporting network interface, internal module state, and
frame communications bus health (see
Table 5 on page 28 ),
• Hardware and solftware versions, module identification numbers, and
assigned Asset Tag number, and
• Current status of fault reporting enable switches. Refer to Alarms and
SNMP Monitoring on page 19 .

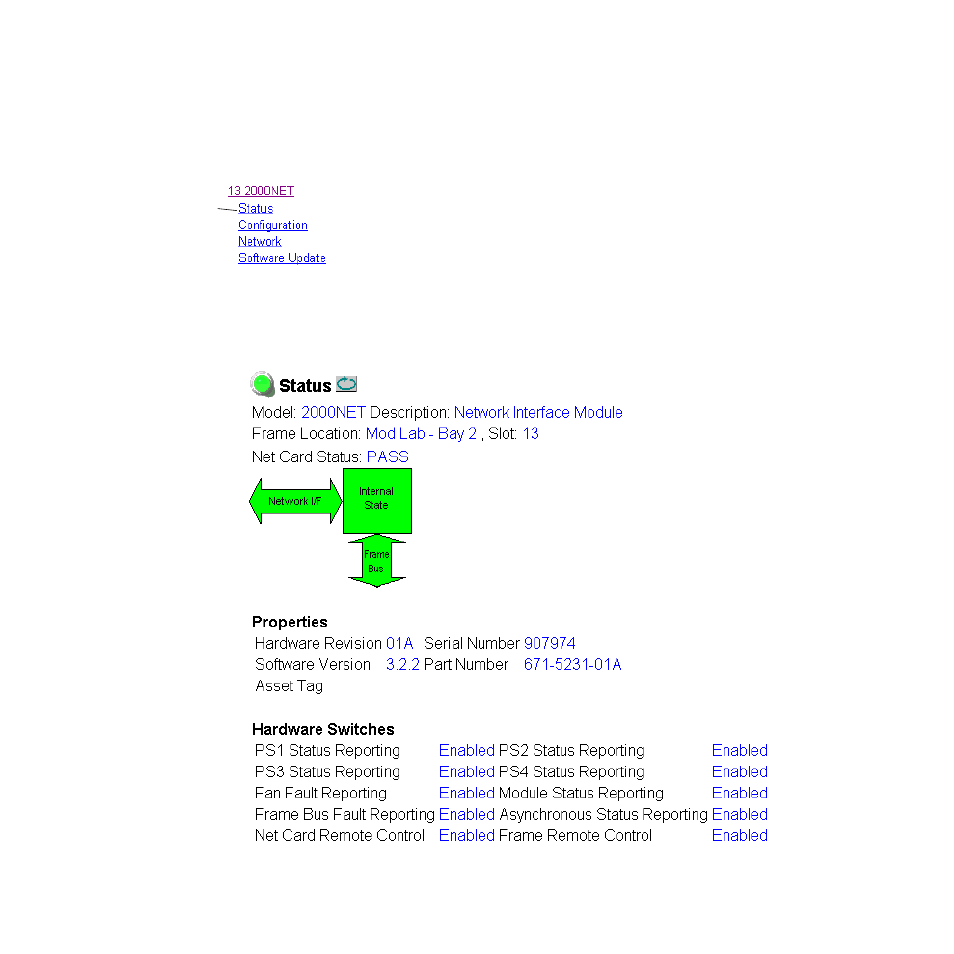

Figure 22. 2000NET Module Status Web Page
Use
this
link
