2000NET Instruction Manual
Using the 2000NET GUI

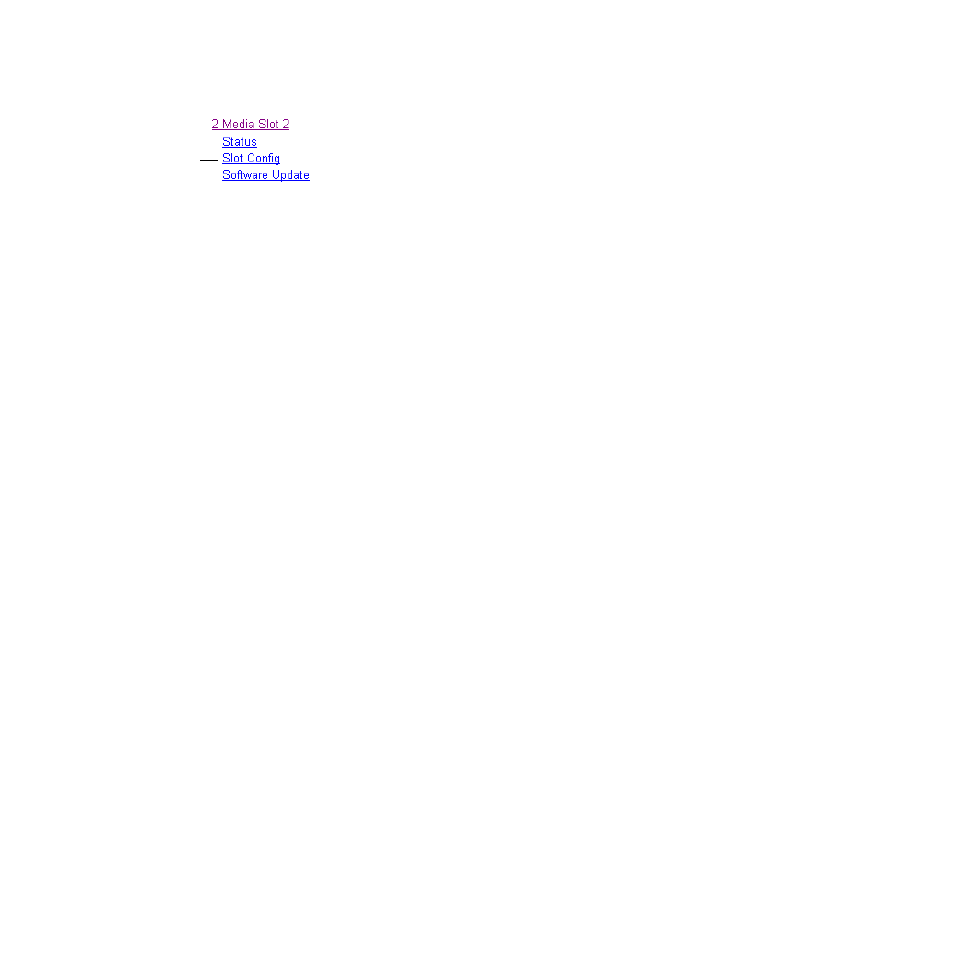

Media Module Slot Configuration
The 2000NET module also provides functionality for the Slot Config web
page for each media module in the frame (
module slots may be named to reflect specific functions for that slot or
module within the facility. The configuration for the module can also be
saved to slot memory on the 2000NET module.
Note
Both frame and module names and configuration information can be saved
to file and recalled as necessary. This allows quick and easy reconfiguration
of the 2000NET module if it must be replaced or moved to another frame (see
Save/Load Frame Configuration File on page 30
).
Slot Identification
You may identify the module by typing a specific name in the
Name
field.
The assigned name is stored on the 2000NET module and travels with the
2000NET module if it is moved to another frame. Select
Default
to enter the
factory default module name.
The module may also be assigned an asset tag identifier by entering text or
numbers into the Asset Tag field.
Note
Asset tag functionality not available on all 2000 media modules.
Locate Module
When enabled by selecting the
Flash
pulldown, the
Locate Module
function
flashes the yellow COMM and CONF LEDs on the front of the module to
make it easy to locate in the frame.
Note
This function is not available on all Kameleon and 2000 modules.
Slot Memory
The slot configuration for each media module is automatically saved peri-
odically to the 2000NET module in that frame. You may also select the
Learn
Module Config
button at any time to save the current configuration for this
slot. The configuration is saved on the 2000NET module. If the 2000NET
module is removed or powered down, the stored configurations are not
saved.
When the
Restore upon Install
box has been checked, the current configuration
saved to this slot is saved as slot memory. When the current module is
removed and another module of the same type is installed, the configura-
tion saved to the 2000NET module will be downloaded to the new module.
The box must be checked before the current module with the saved config-
uration is removed.
