Master Control • iMC-Panel-100 Operator’s Guide 145
7. Misc. Topics
Specifications
Specifications
Power Supply
The power supply is an Miranda PS0001-00:

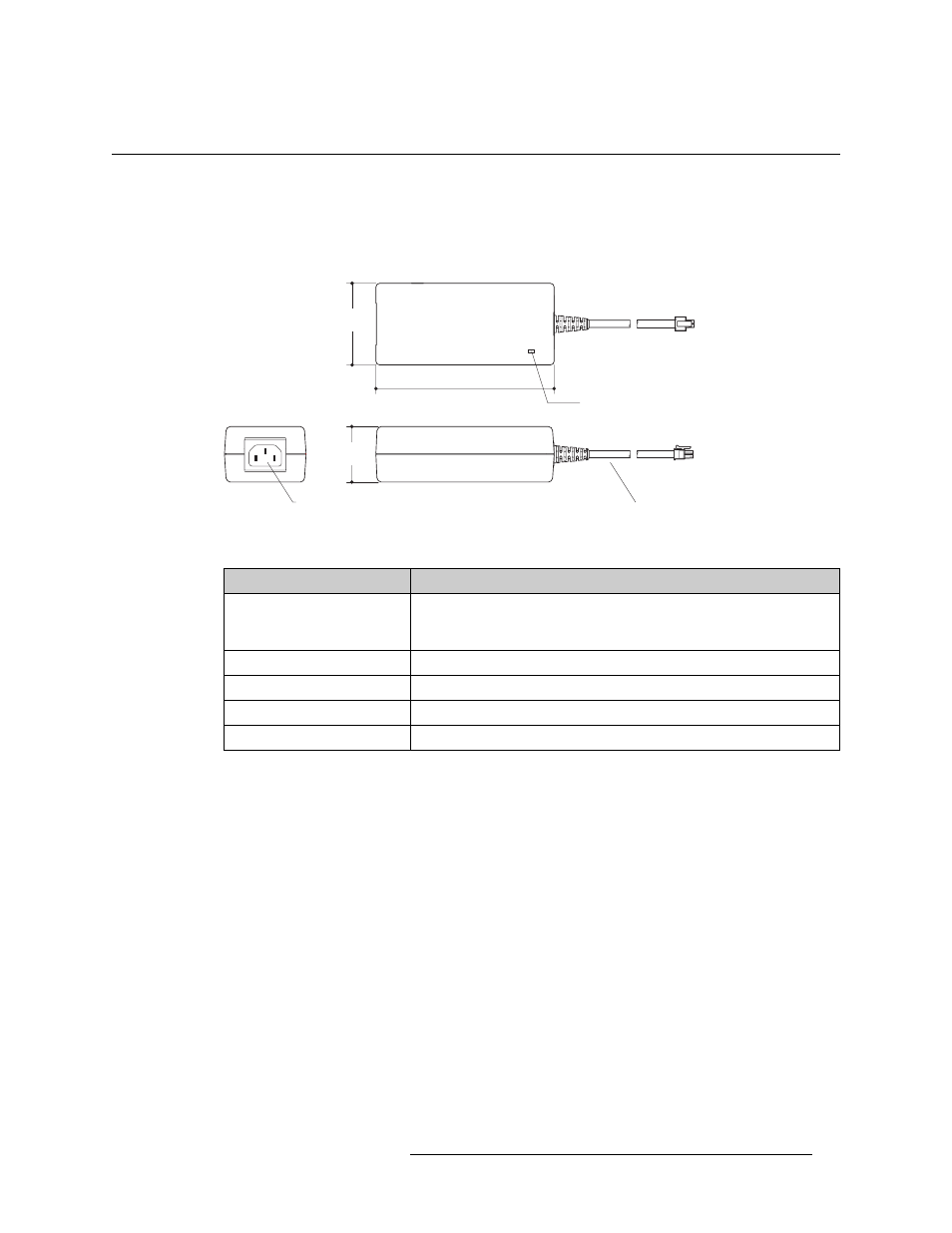

Figure 7-1. The power output has Molex 4-pin plug.
Button Panel
Electrical
Regulatory UL listed and CE compliant.
Power consumption: 25
W.
Mechanical
Dimensions: 19.0 ″W × 3.70 ″D × 5.22 ″H (482.6mm × 94.0mm × 132.6mm).
Weight: approx. 5.4 lb (2.45 kg)
Operating temperature: 0–40°C (32–104°F)
Humidity: 0–90%, non-condensing
Control Inputs and Outputs
Ethernet Ports:
10/100Base-T, master control network.
Indicator LED
5.24
[133.0]
2.39
[60.7]
AC Input
1.62
[41.0]
DC Output
Table 7-1. Power Supply Specifications
Specification Detail
AC power 90–264 VAC (127–300VDC), 47–447Hz.
Inrush current < 50A at 230VAC, cold start, at 25°C,
Input current < 2.0A rms at 115VAC; < 1.0A at 230VAC.
DC power ≤ 60W, 12VDC, 5A (5.4A peak), Regulation ± 2%. Ripple ≤ 120mV.
Efficiency Efficiency > 80% at full load typical, 115VAC.
Weight 1.06 lb (0.48 kg).
Regulatory UL listed and CE compliant.
