Program Output Audio Menu
Program Output Audio Menu

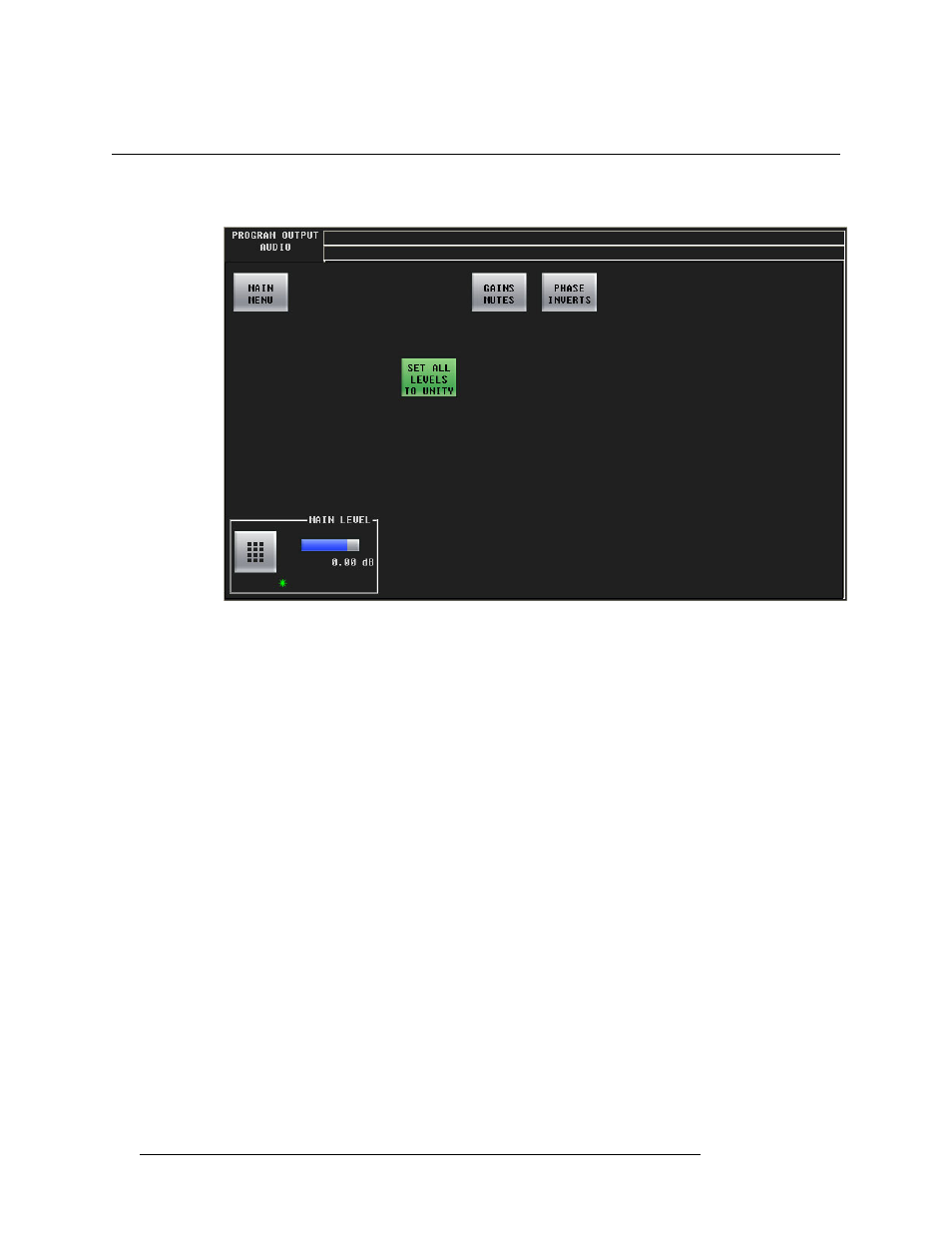

Figure 5-16 shows the iMC-Panel-100’s ‘Program Output Audio’ menu:
Figure 5-16. PGM Out Audio Menu
The ‘Program Output Audio’ menu controls the Imagestore 750’s audio output.
The control at the bottom of the screen adjusts the main overall audio level of program output. To
adjust this parameter, either use the knob proxy associated with the green asterisk in the control
box, or touch the keypad icon to access a large keypad with which to enter a number.
Buttons
The ‘Main Menu’ button returns you to the main menu.
The ‘Gains Mutes’ button accesses the ‘Gains and Mutes’ sub-menu (for program input audio).
The ‘Phase Inverts’ button accesses the ‘Phase Inverts’ sub-menu (for program input audio).
The ‘Set All Levels to Unity’ sets each of the 16 audio channels to unity gain.
