13
Kaleido-X16
Quick Start Guide

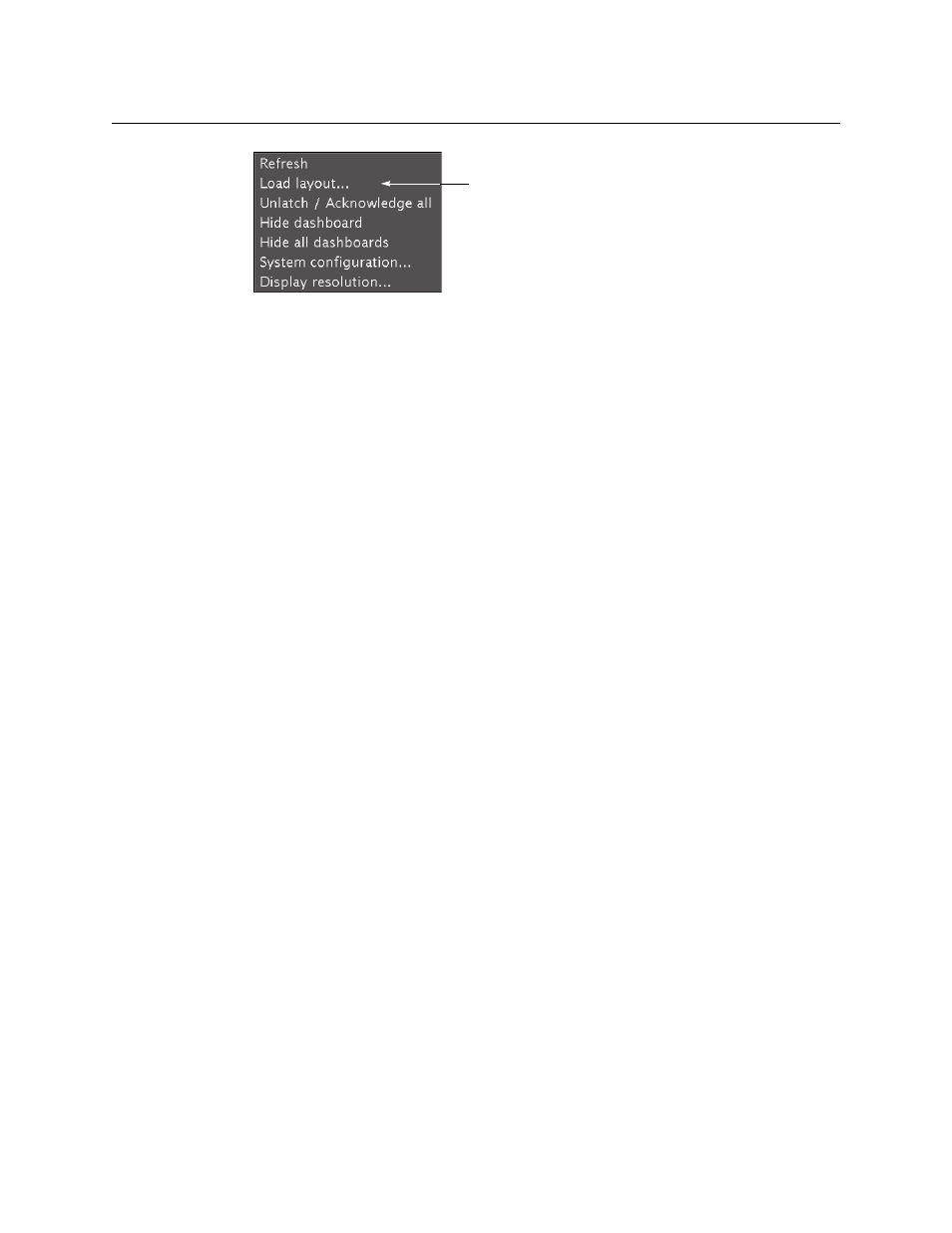

Monitor wall shortcut menu
A layout browser appears on the displays associated with the current room.
3 Select the layout you wish to load from the list of available layouts for this room, and
then click OK.
The selected layout appears on the room displays.
Configuring a Client PC
The client PC that you will use to communicate with the Kaleido-X16 multiviewer (via
XAdmin and XEdit) and the multiviewer itself must have IP addresses within the same
subnet. The following procedure applies to a typical Windows 7 or Windows 8 system. For
Windows XP, see
Changing an IP Address on Windows XP , on page 15.
Changing an IP Address on Windows 7 or Windows 8
To change the IP address of a client PC that has Windows 7 or Windows 8
1 Press the Windows key on your keyboard, type “control panel” and then press Enter.
2 In the search box, type “adapter”, and then, under Network and Sharing Center, click
View network connections.
3 In Network Connections, right-click the network adapter you wish to configure (e.g.,
Local Area Connection, or Ethernet), and then click Properties. If the system prompts you
for an administrator password or confirmation, type the password or provide
confirmation.
The Properties window for the selected network adapter opens.
