Chapter 2 Using the Profile Configuration Manager
24 Profile Family
Video Input
You may have analog composite, component analog (CAV), or serial digital
component video input boards installed in your Profile system. The steps to
configure for video inputs from these boards follow.
Analog Composite Video Input
To open the Analog Composite Video Input dialog box, select Video Input
from the configuration tree, and then click or double-click an analog composite
input from the list, such as Composite-InA-J5. This configuration has several
dialog boxes, each opened by clicking the appropriate tab. The Main tab is
displayed when the configuration box is opened. Click on the other tabs to open
the other controls.

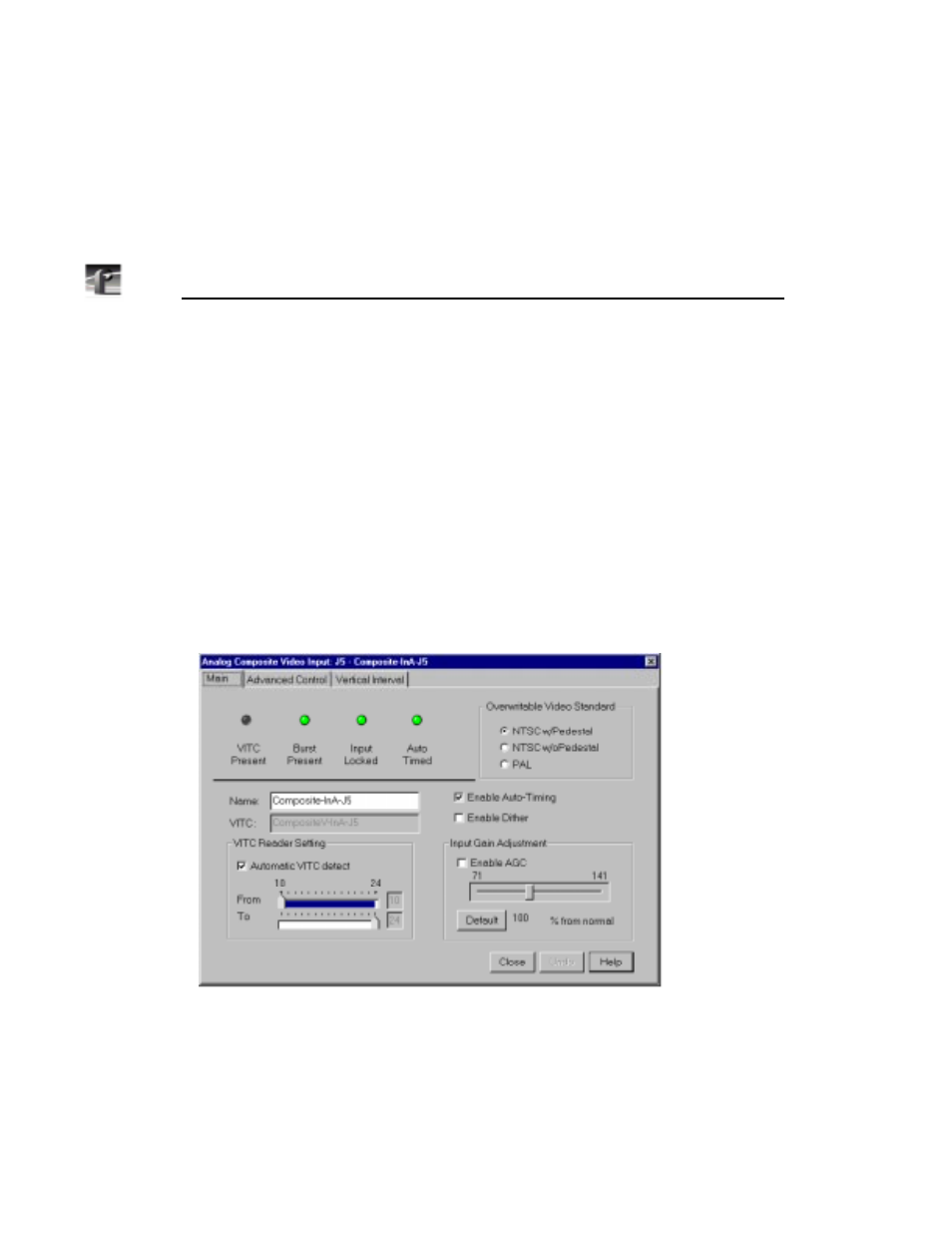

Figure 14. Analog Composite Video Input dialog box, Main tab
Status Indicators
Display the current status of this video input: VITC Present, Burst Present,
Input Locked and Video Timed. The green light indicates a particular status is
on. These indicators cannot be edited.
