Milling
Specific
Oper
ations
Probing with a Tool
Using a tool to set datum points using the ND 522/523's probing
functions.
Preparation: Set the active tool to the tool that will be used to set the
datum.

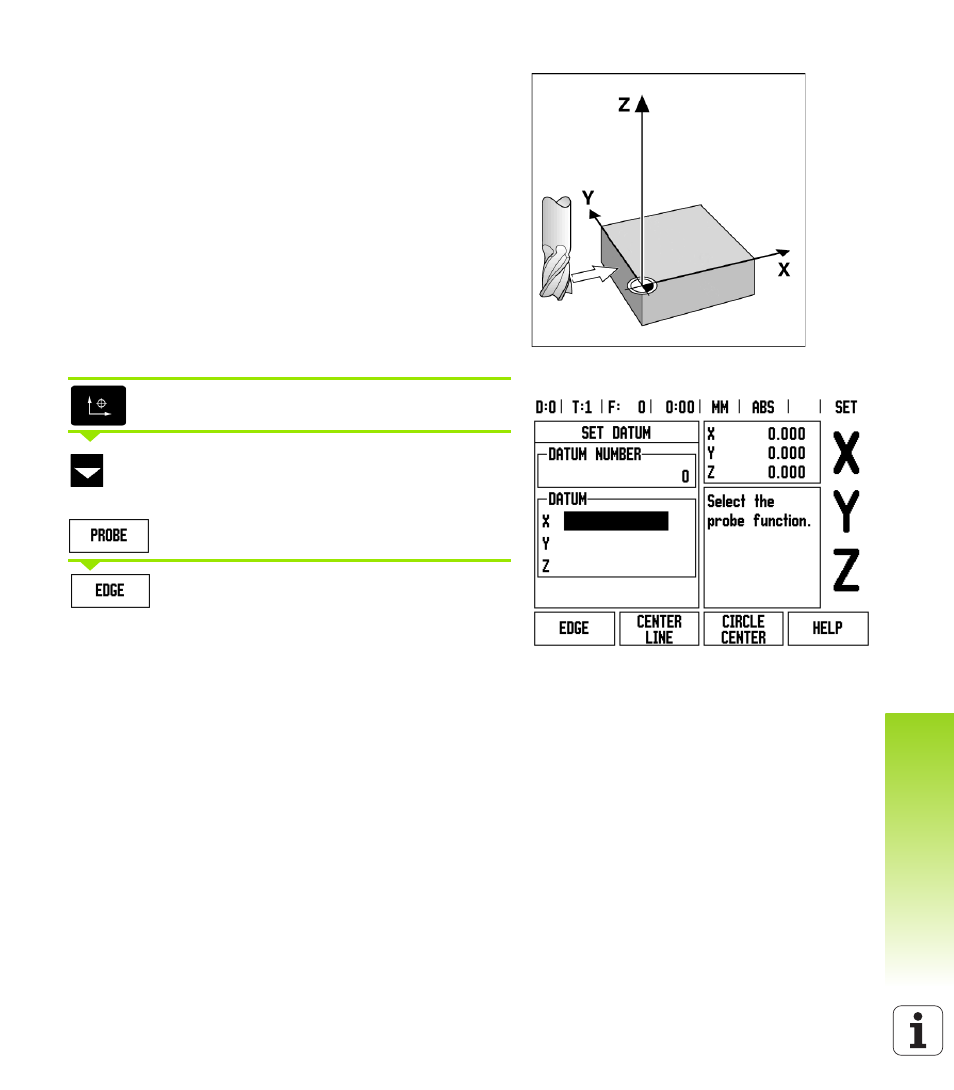

Example: Probe workpiece edge, and set edge as datum
Datum axis: X =0 mm
Tool diameter D = 3 mm
Press DATUM.
Press the DOWN ARROW key until the X AXIS field
is highlighted.
Press PROBE soft key.
Press EDGE soft key.
