50 I Operating Instructions
I - 3 Milling Specific Oper
ations

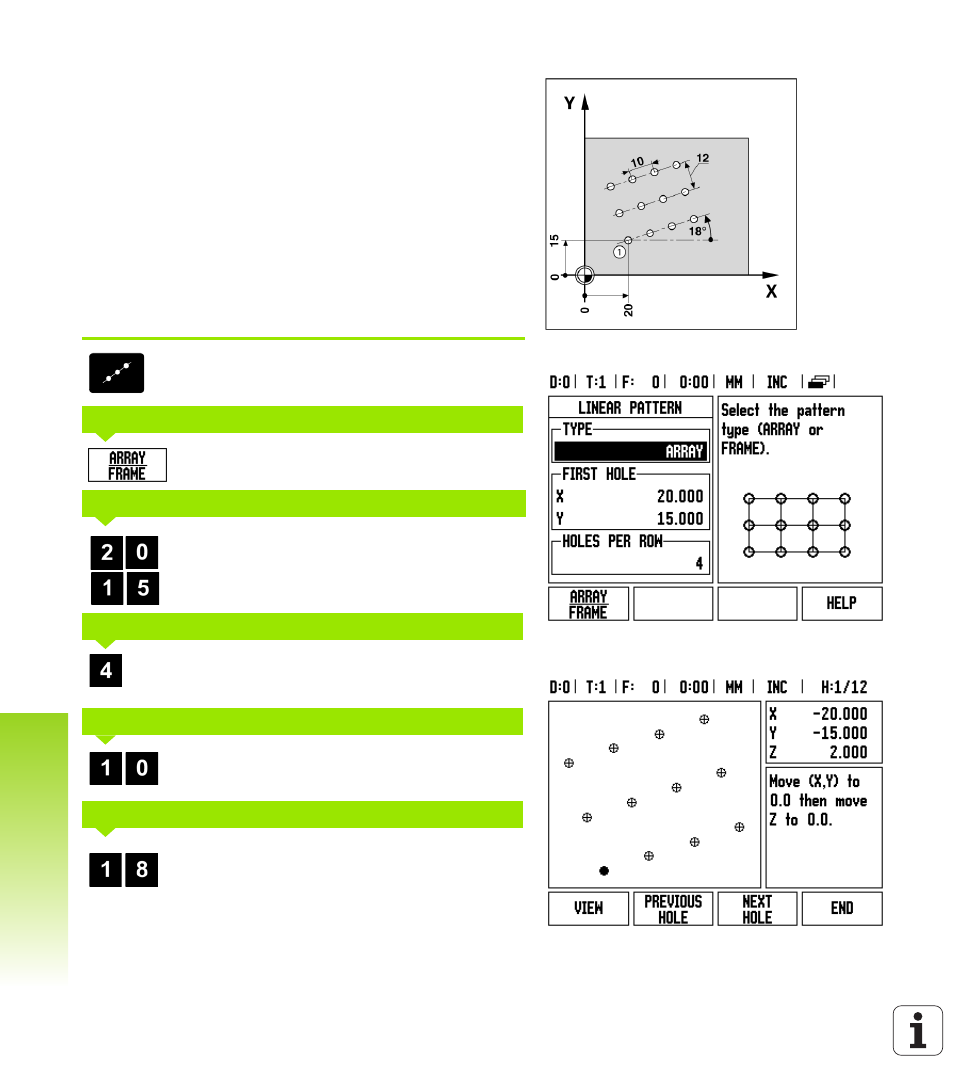

Example: Enter data, and execute a linear pattern.
Type of pattern: Array
First X coordinate of hole: X = 20 mm
First Y coordinate of hole: Y = 15 mm
Number of holes per row: 4
Hole spacing: 10 mm
Tilt angle: 18°
Hole depth: -2
Number of rows: 3
Row spacing: 12 mm
1st step: Enter data
Press LINEAR PATTERN hard key.
Enter the type of pattern (Array). Cursor to the next
field.
Enter the X, and Y coordinates (X = 20), (Y = 15).
Cursor to the next field.
Enter the number of holes per row (4).Cursor to the
next field.
Enter the hole spacing (10).
Enter the tilt angle (18°).
PATTERN TYPE
FIRST HOLE X, AND Y
HOLES PER ROW
HOLE SPACING
ANGLE
