HEIDENHAIN ND 720 v.3 - Manual (Page 71)

71
240
9.45"
56
2.205"
210 ± 0.2
8.268 ± .008"
15
.6"
8
.32"
4.5
.1 8"
1 20 + 0.5
4.73 + .02"
38 ± 0.5
1.5 ± .02"
20°
92
3.622"
4.5
.1 8"
Tilting base
Specifications

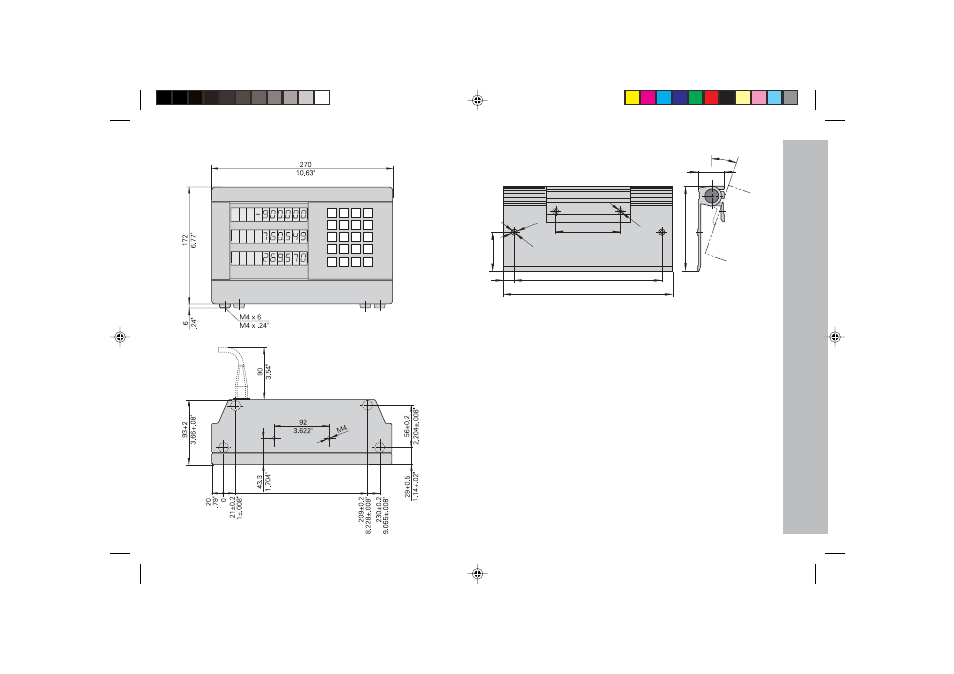

Dimensions in mm/inches
