4.8 Milling cy
cles
Figure, radial
Select milling
Select "Figure, radial"

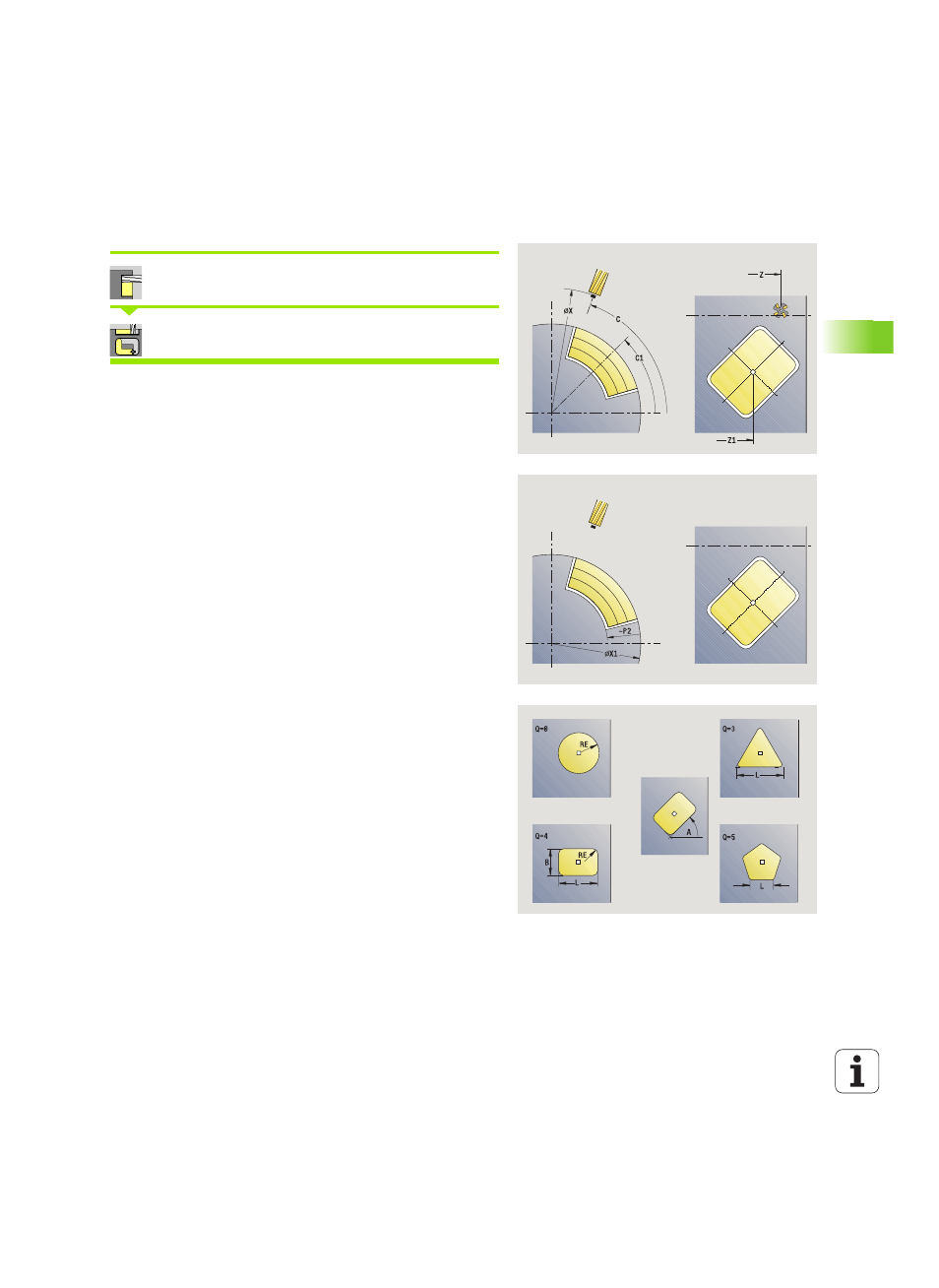

Depending on the parameters, the cycle mills one of the following
contours or roughs/finishes a pocket on the lateral surface:
 Rectangle (Q=4, L<>B)
 Square (Q=4, L=B)
 Circle (Q=0, RE>0, L and B: No input)
 Triangle or polygon (Q=3 or Q>4, L>0 or L<0)
Cycle parameters (first input window)
X, Z
Starting point
C Spindle angle (C-axis position)—(default: current spindle
position)
Z1 Figure center
C1 Angle of figure center (default: Spindle angle C)
Q Number of edges (default: 0)
 Q=0: Circle
 Q=4: Rectangle, square
 Q=3: Triangle
 Q>4: Polygon
L Edge length
 Rectangle: Length of rectangle
 Square, polygon: Edge length
 Polygon: L<0 inside circle diameter
 Circle: No input
B Rectangle width
 Rectangle: Width of rectangle
 Square: L=B
 Polygon, circle: No input
RE Rounding radius (default: 0)
 Rectangle, square, polygon: Rounding radius
 Circle: Radius of circle
A Angle to X axis (default: 0)
 Rectangle, square, polygon: Position of figure
 Circle: No input
X1 Milling top edge (diameter) – (default: Starting point X)
P2 Milling depth
G14 Tool change point (see page 128)
