HEIDENHAIN CNC PILOT 640
535
7.
3 T
ool data
Gripper

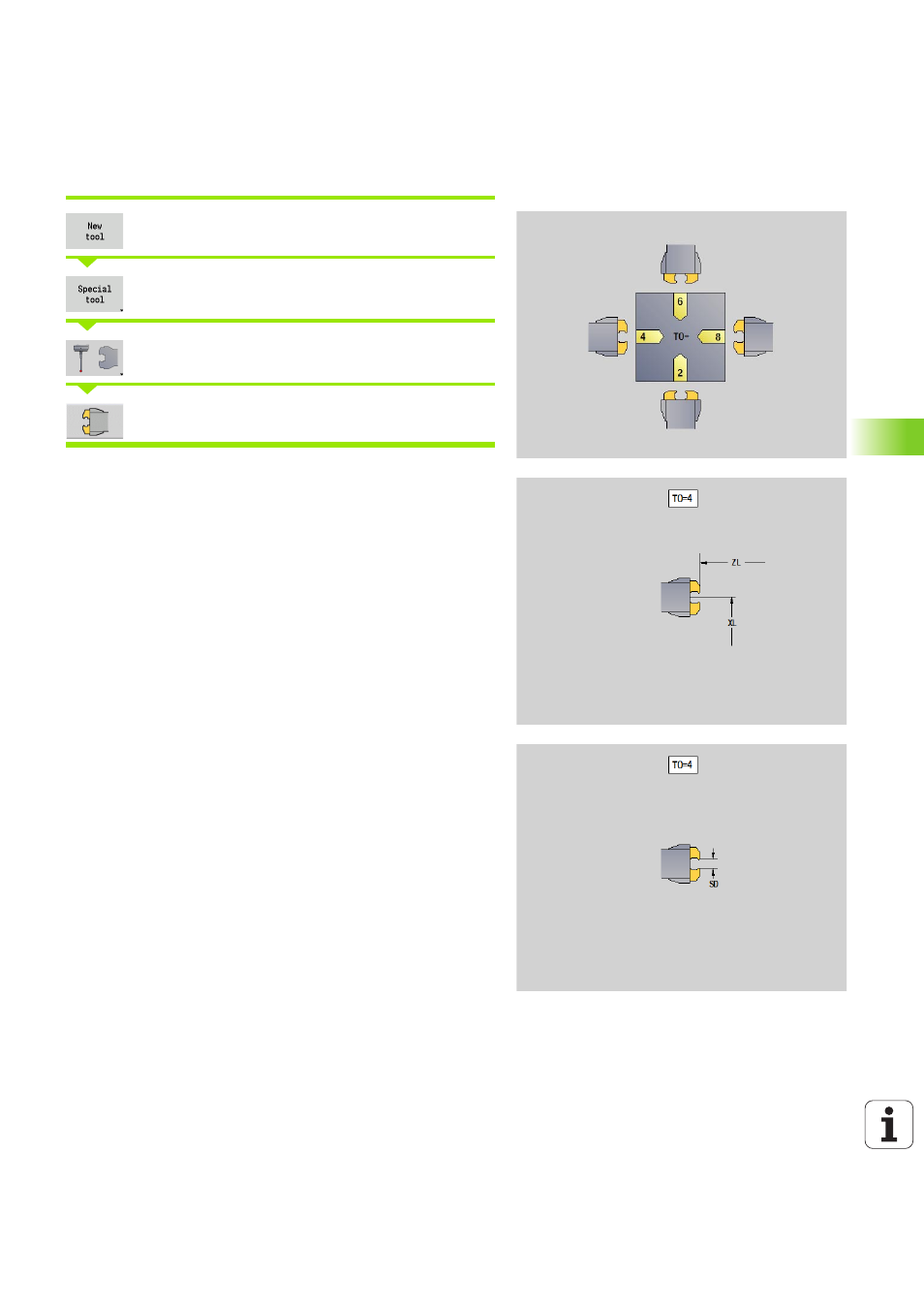

Select "New tool."
Select special tools.
Select handling systems and touch probes.
Select grippers.
The help graphics illustrate the dimensions of the tools.
Special parameters for grippers
DD
Special compensation
For further tool parameters, see Seite 516.
