HEIDENHAIN CNC PILOT 4290 89
1
.16 TURN PLUS: YZ Plane Cont
ours
1.16 TURN PLUS: YZ Plane Contours

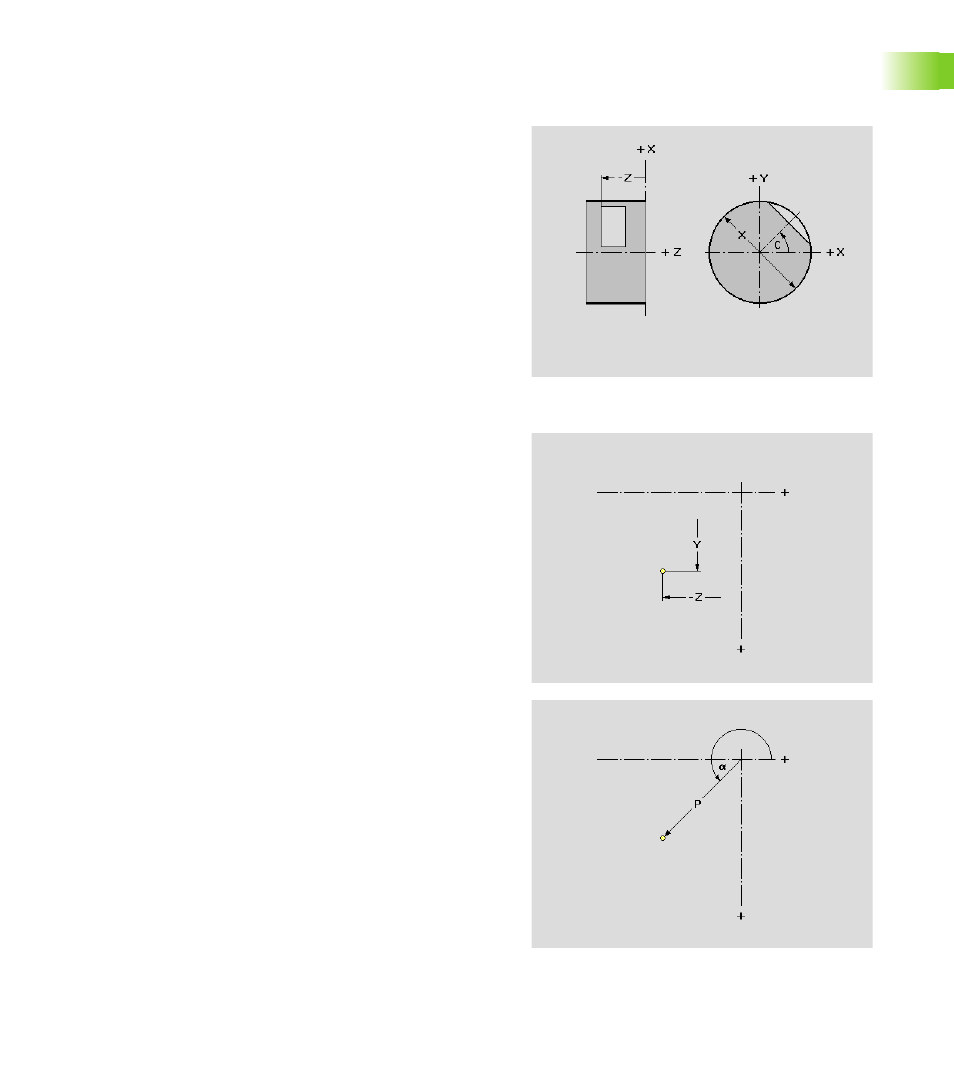

Reference data - Y lateral surface
In the “reference data,” you can define the position of the plane.
YZ plane: Starting point of contour
This function defines the starting point in the YZ plane.
Parameters
C
Spindle angle (spindle position); (default: 0)
Z Limit dimension—reference position for single surfaces and
centric polygons
X Reference diameter
„ Reference position for the figures/contours
„ Serves to limit the cutting area if the figure lies partly
outside the workpiece
Parameters
Y
Starting point of the contour in Cartesian coordinates
Z Starting point of the contour in Cartesian coordinates
P Starting point of the contour in polar coordinates
a Starting point of the contour in polar coordinates (reference
angle: positive Z axis)
