HEIDENHAIN iTNC 530 (34049x-08) Cycle programming - Manual (Page 343)

HEIDENHAIN iTNC 530 343
14.4 BA
SIC R
O
TA
TION o
ver tw
o st
uds (Cy
cle 402, DIN/ISO:
G402)

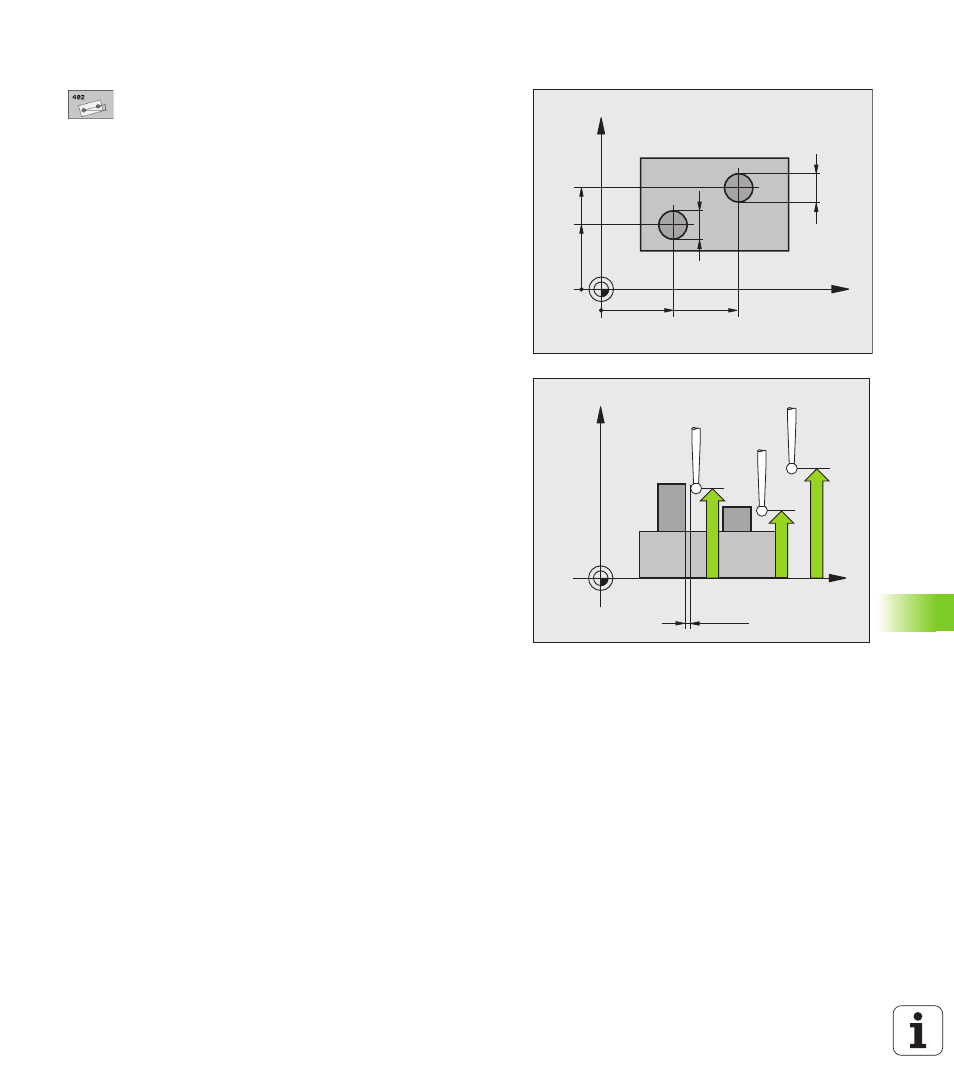

Cycle parameters
 1st stud: Center in 1st axis
(absolute): Center of
the first stud in the reference axis of the working
plane. Input range -99999.9999 to 99999.9999
 1st stud: Center in 2nd axis Q269 (absolute):
Center of the first stud in the minor axis of the
working plane. Input range -99999.9999 to
99999.9999
 Diameter of stud 1
Q313: Approximate diameter of
the 1st stud. Enter a value that is more likely to be too
large than too small. Input range 0 to 99999.9999
 Measuring height 1 in the probe axis
Q261
(absolute): Coordinate of the ball tip center (= touch
point in the touch probe axis) at which stud 1 is to be
measured. Input range -99999.9999 to 99999.9999
 2nd stud: Center in 1st axis
Q270 (absolute):
Center of the second stud in the reference axis of the
working plane. Input range -99999.9999 to
99999.9999
 2nd stud: Center in 2nd axis Q271 (absolute):
Center of the second stud in the minor axis of the
working plane. Input range -99999.9999 to
99999.9999
 Diameter of stud 2
Q314: Approximate diameter of
the 2nd stud. Enter a value that is more likely to be
too large than too small. Input range 0 to 99999.9999
 Measuring height of stud 2 in the probe axis
Q315
(absolute): Coordinate of the ball tip center (= touch
point in the touch probe axis) at which stud 2 is to be
measured. Input range -99999.9999 to 99999.9999
 Set-up clearance
Q320 (incremental): Additional
distance between measuring point and ball tip. Q320
is added to MP6140. Input range 0 to 99999.9999,
alternatively PREDEF
 Clearance height Q260 (absolute): Coordinate in the
touch probe axis at which no collision between touch
probe and workpiece (fixtures) can occur. Input range
-99999.9999 to 99999.9999, alternatively PREDEF
X
Y
Q271
Q269
Q268 Q270
Q313
Q314
X
Z
Q261
Q260
Q315
MP6140
+
Q320
