5 Installation Procedure

YASKAWA ELECTRIC

SIEP C730600 43B 1000-Series Option SI-N3 Technical Manual

Replace and secure the front covers of the drive (C, F) and replace the digital operator (D).

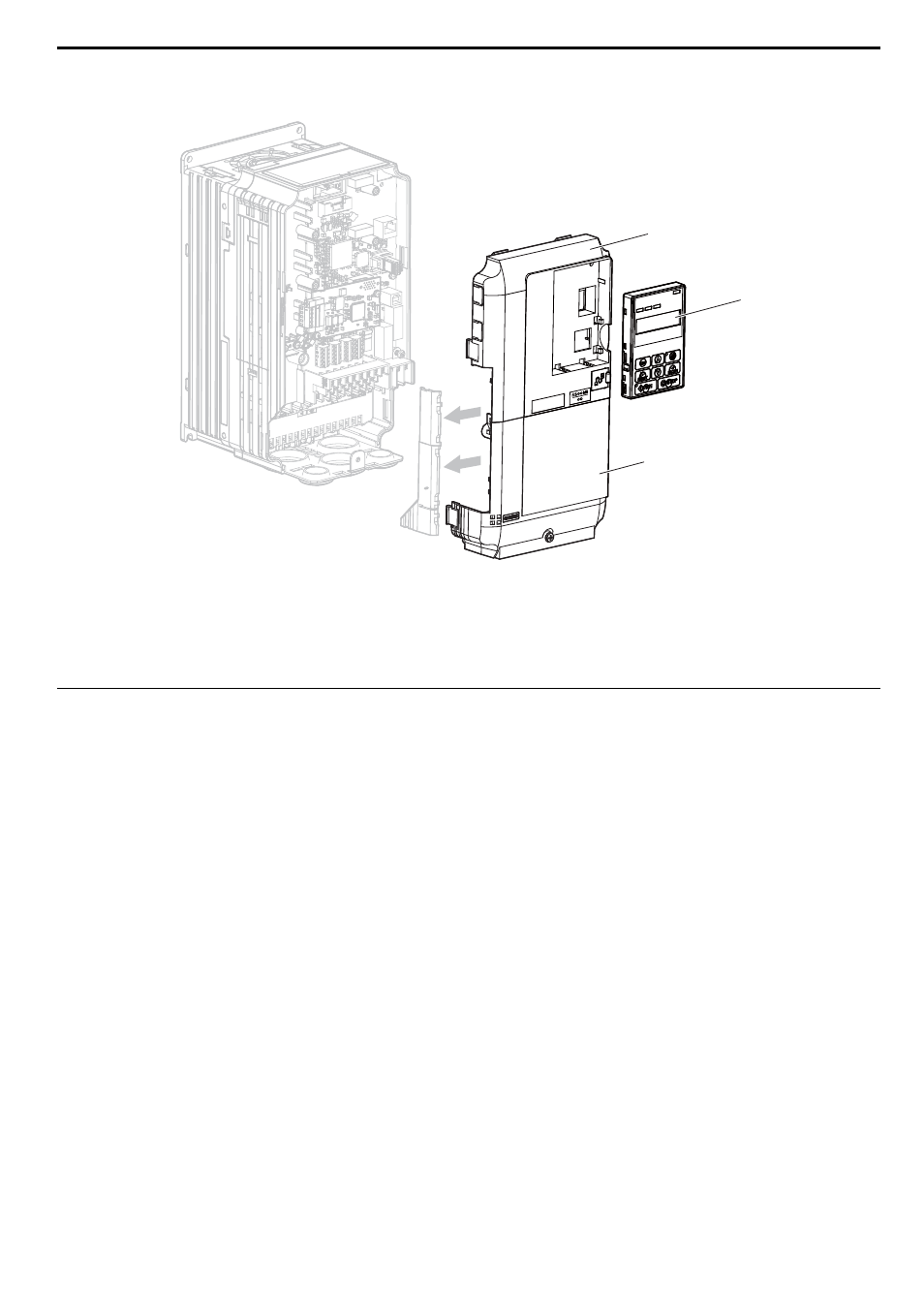

Figure 12

Figure 12 Replace the Front Covers and Digital Operator

Note: Take proper precautions when wiring the option so that the front covers will easily fit back onto the drive. Make sure no cables

are pinched between the front covers and the drive when replacing the covers.

10.

Set drive parameters in

Table 6

for proper option performance.

Option MAC ID

Parameter F6-50, MAC ID Setting 0 to 64

The option MAC ID is set with drive parameter F6-50. MAC ID settings between 0~63 are considered valid MAC IDs;
setting 64 indicates a network-settable MAC ID.

The option reads the MAC ID value from F6-50 upon power-up and upon a network reset.
