6 Supplemental Information - Flange Type Enclosure
YASKAWA TOEP YEASUP 03B Yaskawa AC Drive - A1000 & P1000 Manual Supplement 35
„ A1000 & P1000 Models 2A0250U to 0312U, 4A0208U, 5A0125U to 0145U
Figure 28

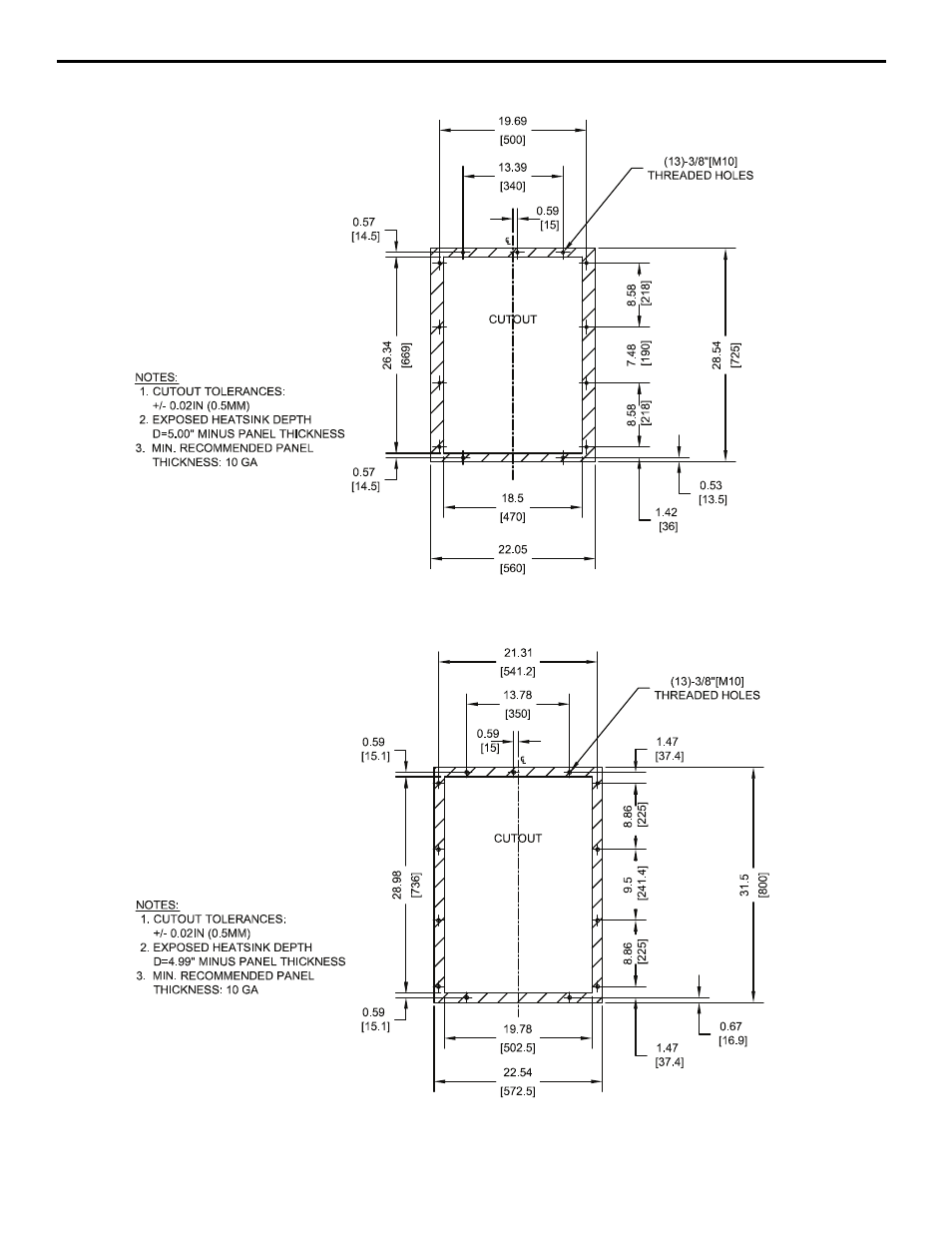

Figure 28 Panel Cut-Out Dimensions (Models 2A0250U to 0312U, 4A0208U, 5A0125U to 0145U)
„ A1000 & P1000 Models 2A0360U to 0415U, 4A0250U to 0362U, 5A0192U to 0242U
Figure 29
Figure 29 Panel Cut-Out Dimensions (Models 2A0360U to 0415U, 4A0250U to 0362U, 5A0192U to 0242U)
Unit: inch [mm]
Unit: inch [mm]
