Mounting the inverter
Page 18 Operating Instructions for Powador 3200-6600_EN
1386
405
172
565
1120
328

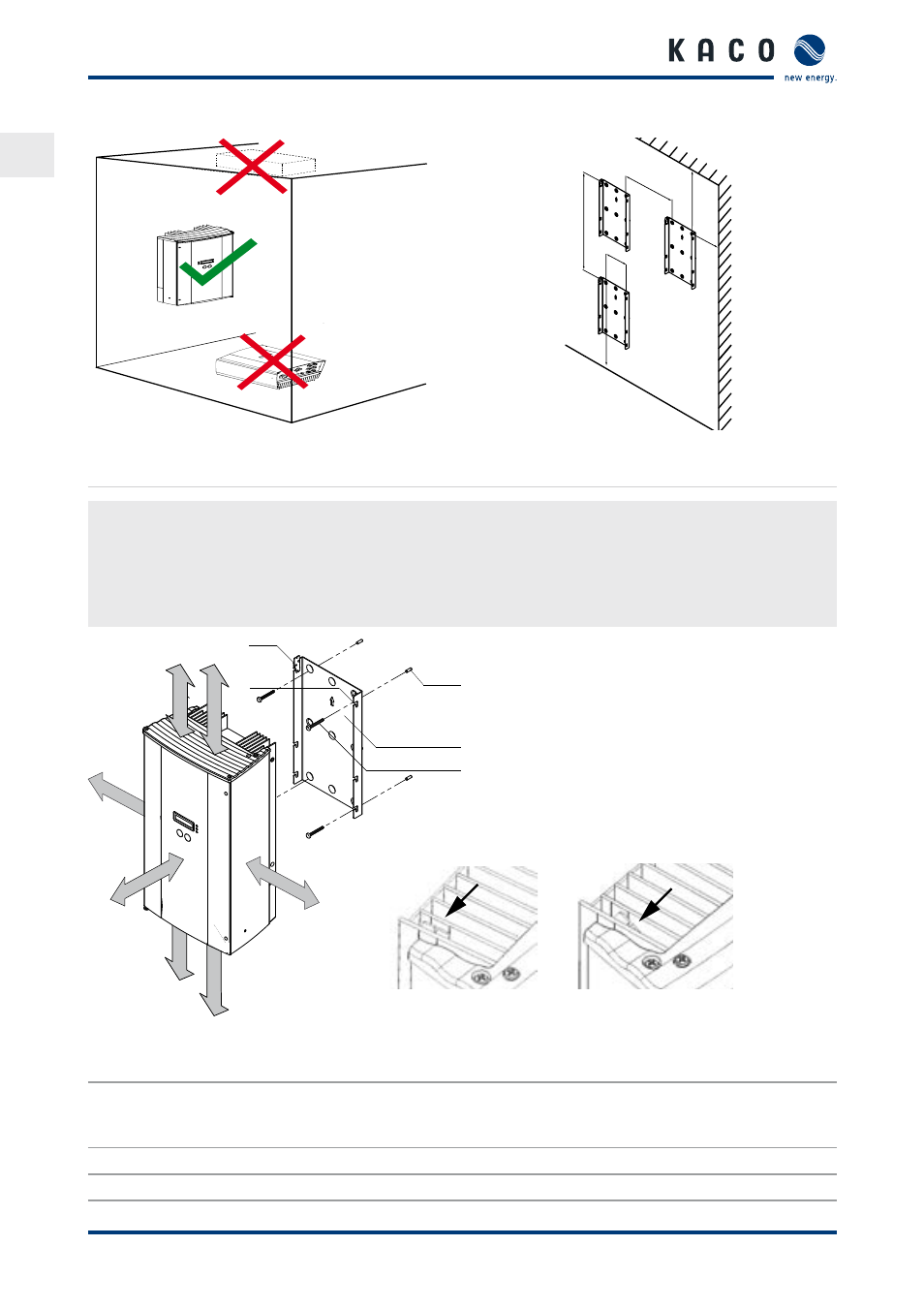

Figure 10: Instructions for wall mounting Figure 11: Drill stencil for wall mounting with minimum
clearances (in mm)
Fasten wall holder to mounting location
5. Mark the positions of the drill holes using the cut-outs in the wall holder.
NOTE: The minimum clearances between two inverters, or the inverter and the ceiling/floor have already been
taken into account in the diagram (see Bild 11).
6. Fix wall holder to the wall with the mounting fixtures.
Make sure that the wall holder is oriented correctly.
A
B
C
B
C
A A
1
2
3
5
4
Safety catch
(open)
Safety catch
(closed)
Figure 12: Minimum distances of inverter
Key
A
• horizontal distance between the two inverters /
inverter and the wall
• Distance in front
25 cm
B Distance between the inverter and the ceiling / floor 50 cm
C vertical distance between the two inverters 70 cm
