Florabest FKG 48 A1 User Manual
Page 45
42
FKG 48 A1
GB

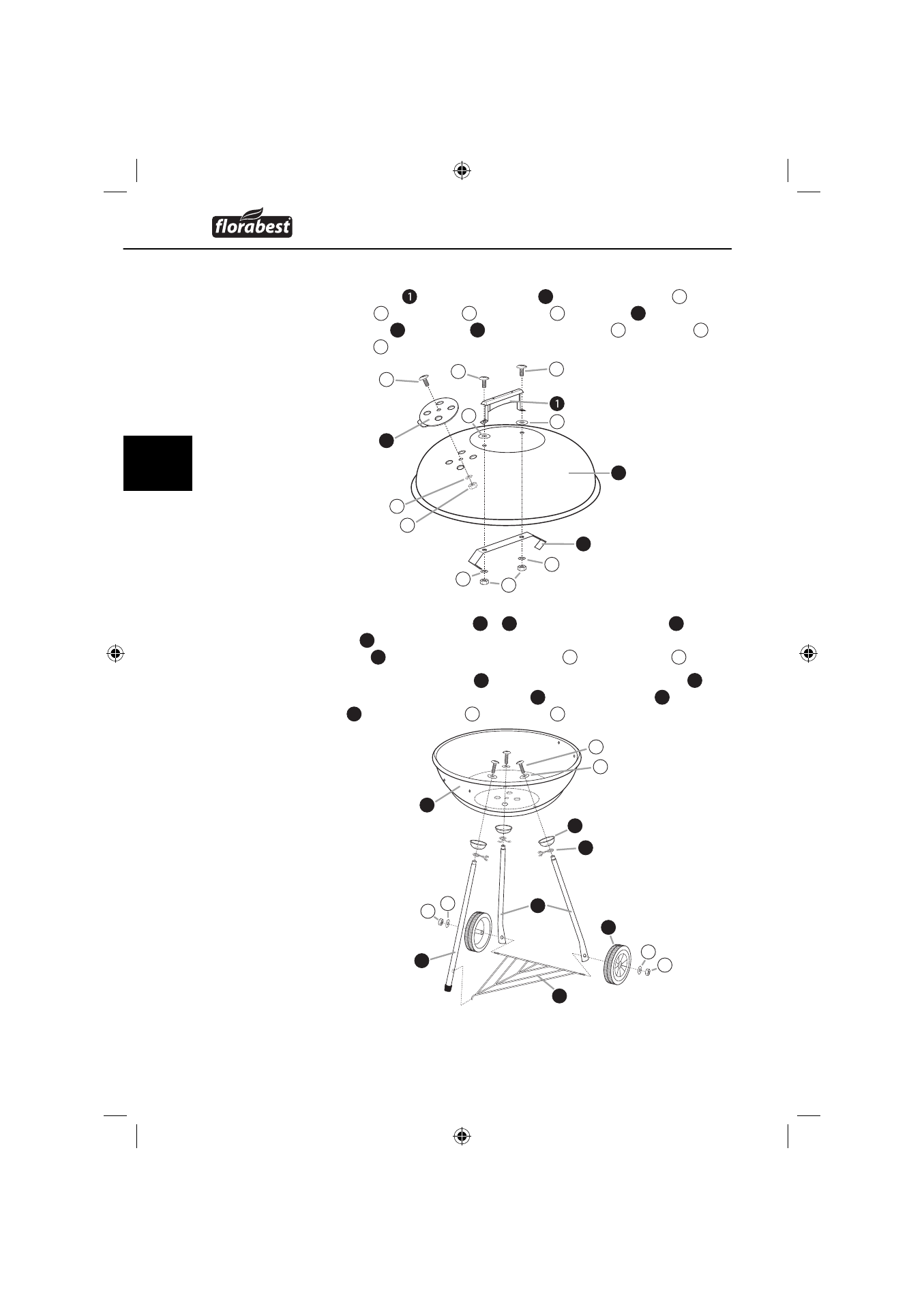

Step 1
♦
Screw the handle
and the hood bracket
4
with M5 x 12 screws
B
,
Ø6 washers
E
, Ø6 washers
F
and nuts M5
G
to the hood
3
. Secure the
ventilation plate
2
to the hood
3
using a M5 x 12 screw
B
, Ø6 washer
F
and M5 nut
G
.
Step 2
♦
Place over each upper leg end (
13
+
16
) an ash collector tray holder
11
and
a leg cap
10
and then assemble the legs in the arrangement depicted onto
the fi rebowl
8
. For this, use the M6 x 30 screws
A
and Ø6 washers
D
.
♦
Guide the ends of the wire shelf
15
through the holes in the wheeled legs
13
and hook the curved end of the wire shelf
15
into the support leg
16
. Fit the
wheels
14
using Ø8 washers
C
and the M8
H
self-locking nuts.
B
B
B
E
E
2
F
G
G
4
3
F
F
A
D
8
10
11
13
C
H
15
16
C
H
14
