Medal Sports SH58403 User Manual
Page 4
3

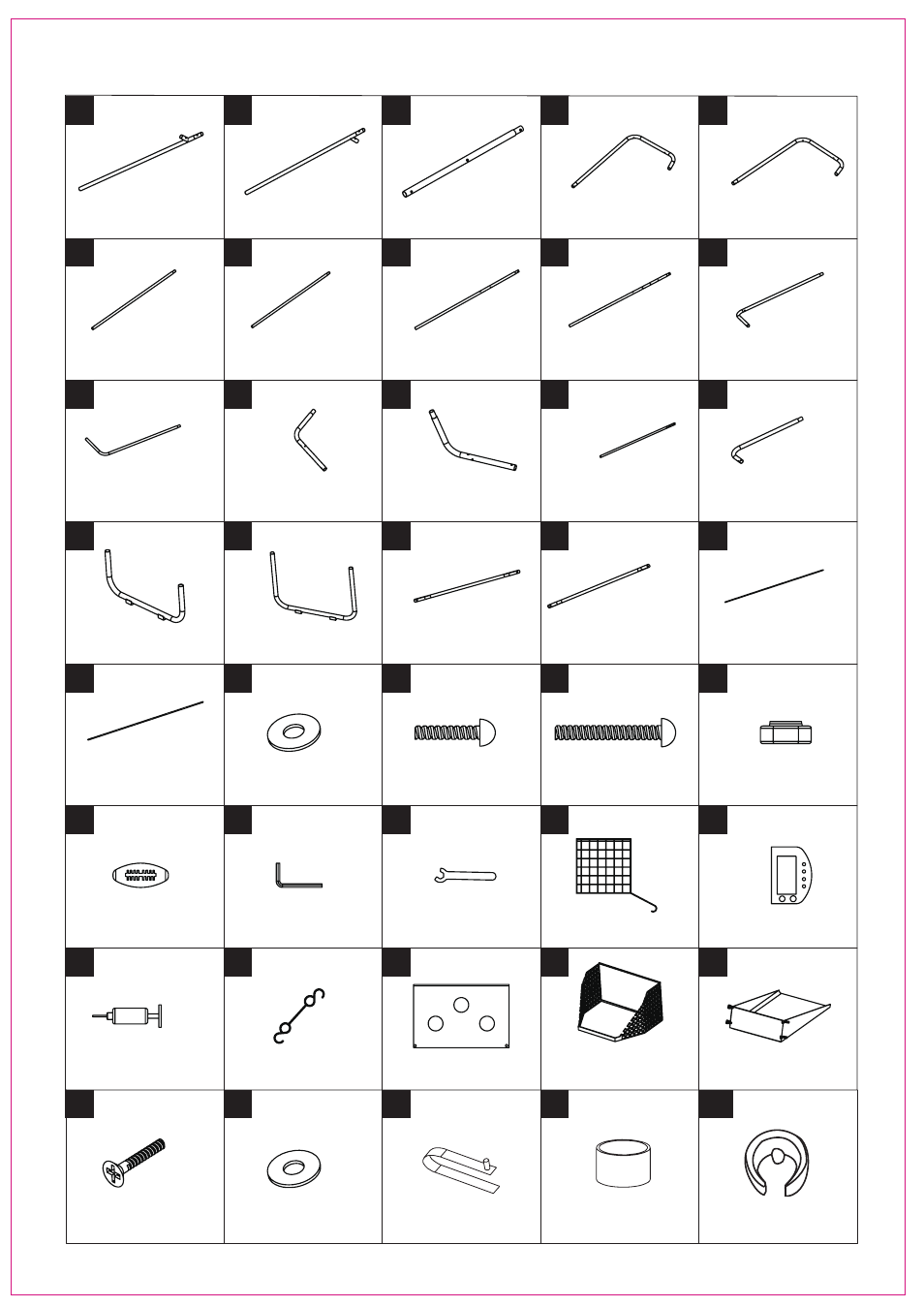

58403 PARTS LIST
Tube - 1
1 Piece
Tube - 2
1 Piece
Tube - 3
2 Piece
Tube - 4
1 Piece
Tube - 5
1 Piece
Tube - 6
1 Piece
Tube - 7
1 Piece
Tube - 8
1 Piece
Tube - 9
1 Piece
Tube - 10
1Piece
Tube - 12
1Piece
Tube - 11
1 Piece
Tube - 21
1 Piece
M6 Washer
36 Pieces
Tube - 13
1 Piece
Tube - 18
2 Pieces
Tube - 14
2 Pieces
Pre-installed
Tube - 15
2 Pieces
Tube - 16
1 Piece
Tube - 17
1 Piece
Tube - 19
2 Pieces
Tube - 20
2 Pieces
M6 x 27mm Bolt
16 Pieces
M6 x 45mm Bolt
2 Pieces
M6 Nut
18 Pieces
Allen Key
1 Piece
Wrench
1 Piece
Football Ball
3 Pieces
Scorer Mat
3 Pieces
Electronic Scorer
1 Piece
Pump
1 Piece
Hook
2 Pieces
Scored Playfield
1 Piece
Pre-Installed
Pre-Installed
Pre-Installed
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
Ball Return Net
1 Piece
34
M4 x 26mm Bolt
2 Pieces
36
37
Ball Return Bag
1 Piece
35
M4 Washer
2 Pieces
38
1A
16A
Spring Lock
18 Pieces
Plastic Cap
4 Pieces
Plastic Pad
4 Pieces
