33

32

32

20

23

20

22

22

25

19

32

8

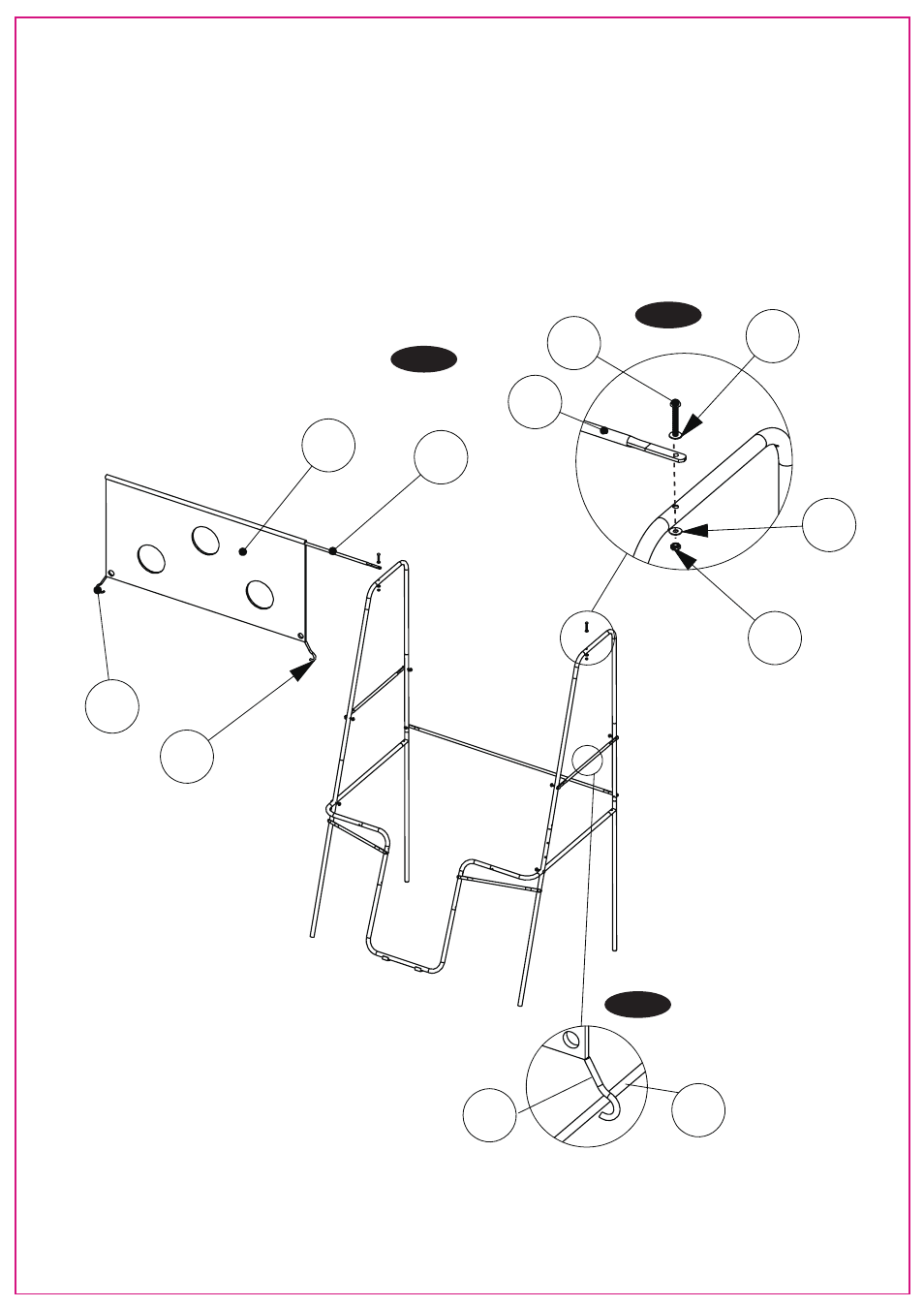

21. Slide the Tube-20 (#20) to the Scored Playfield (#33), and then attach it to the Tube-4 (#4) and Tube-5 (#5)

using two Bolts (#23), four Washers (#22) and two Nuts (#25). See FIG.8A.

22. Hitch the Hook (#32) to the Scored Playfield (#33). See FIG.8.

23. Then hitch the Hook (#32) to the Tube-19 (#19). See FIG.8B.

FIG. 8

FIG. 8A

FIG. 8B
