Medal Sports SH58403 - Manual (Page 7)

21
25
22
22
23
6

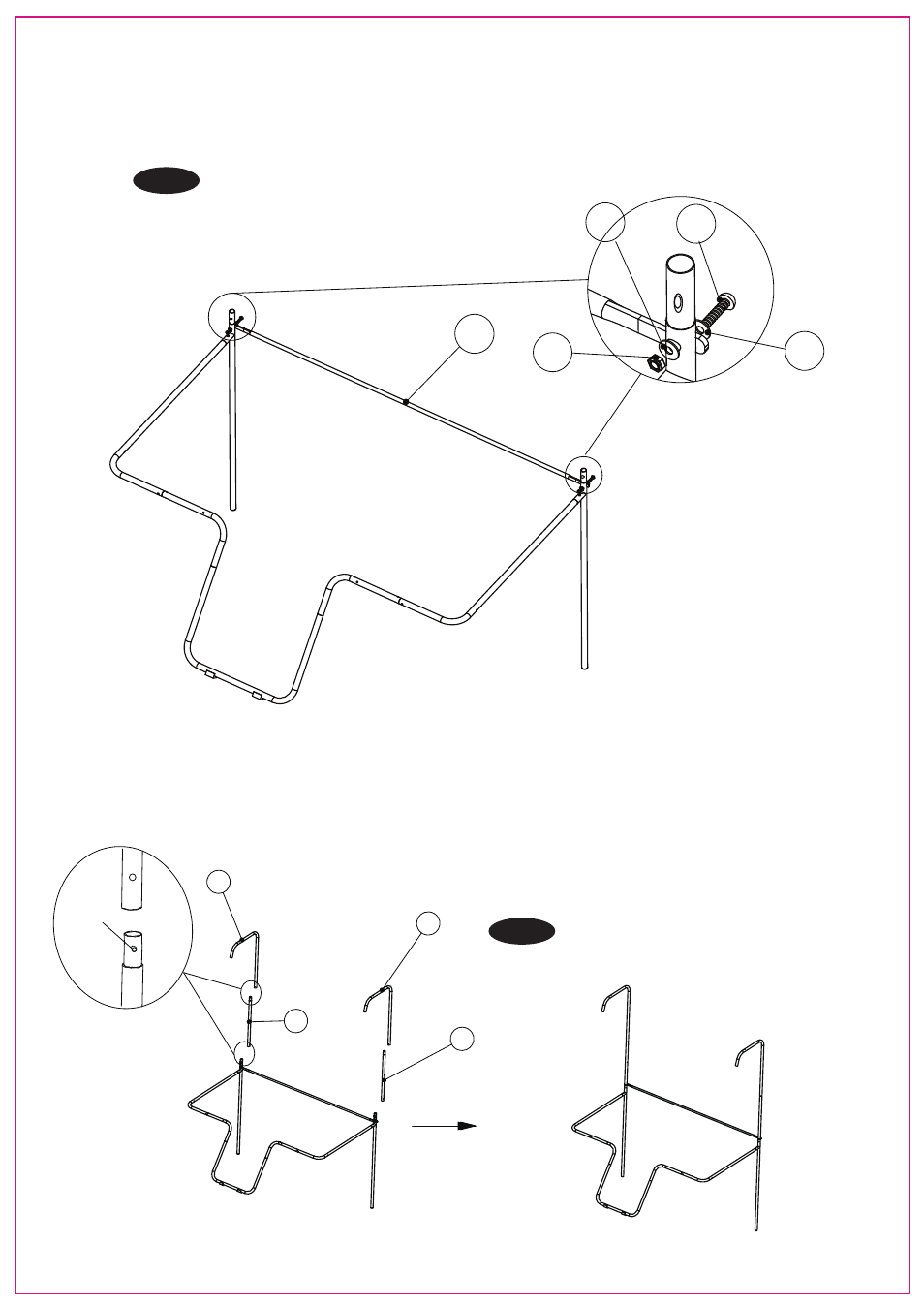

FIG. 5
11. Attach the Tube-21(#21) to the Tube (FIG.4 pre-assembled) using two Bolts (#23), four Washers (#22) and
two Nuts (#25).
See FIG.5.
FIG. 6
12. Attach the Tube-3 (#3) to the Tube (FIG.4 pre-assembled) using spring lock.
See FIG.6.
13. Attach the Tube-4(#4) and Tube-5(#5) to the Tube-3 (#3) using spring lock.
See FIG.6.
4
3
5
3
Spring Lock
