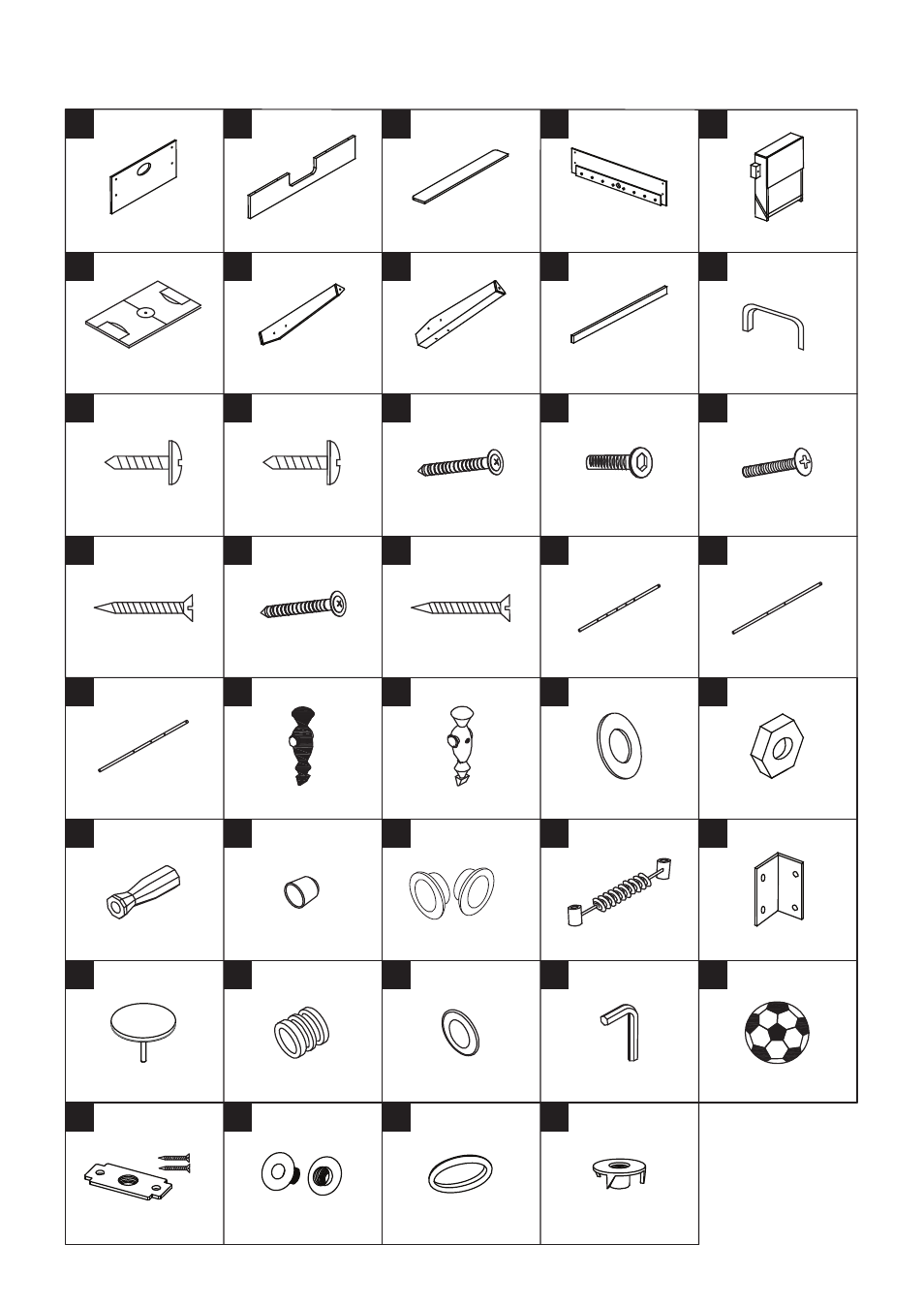

25405 PARTS LIST
End Apron
2 Pieces
Goal End Board
2 Pieces
Top Slat Board
2 Pieces
Side Apron
2 Pieces
Playfield
1 Piece
Left Leg
2 Pieces
4 x 10mm
Round Head Screw
64 Pieces
3 x 20mm
Washer Head Screw
18 Pieces
4 x 34mm
Round Head Screw
4 Pieces
Support Brace
2 Pieces
Right Leg
2 Pieces
4 x 28mm Bolt
26 Pieces
4 x 45mm
Flat Head Screw
4 Pieces
5/16” x 1” Bolt
16 Pieces
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
Goal Box
2 Pieces
2-Hole Rod
2 Pieces
4 x 40mm
Flat Head Screw
12 Pieces
Pre-installed
Pre-installed
5-Hole Rod
2 Pieces
Pre-installed
Pre-installed
3 x 30mm
Washer Head Screw
8 Pieces
3-Hole Rod
4 Pieces
4mm Nut
26 Pieces
Player - Ivory
13 Pieces
5/16” Washer
16 Pieces
Player - Black
13 Pieces
Handle
8 Pieces
“L” Bracket
16 Pieces
Plastic Ball Entry Rim
2 Pieces
Scorer
2 Pieces
Rod End Cap
8 Pieces
Leg Leveler
4 Pieces
Soccer Ball
2 Pieces
Rod Washer
16 Pieces
Allen Key
1 Piece
Rod Bumper
16 Pieces
Square Nut with Screws
4 Pieces
Ball Return Cover
2 Pieces
T - Nut
16 Pieces
Goal Cover
2 Pieces
Plastic Rod Bushing
16 Pieces
Pre-installed
Pre-installed
