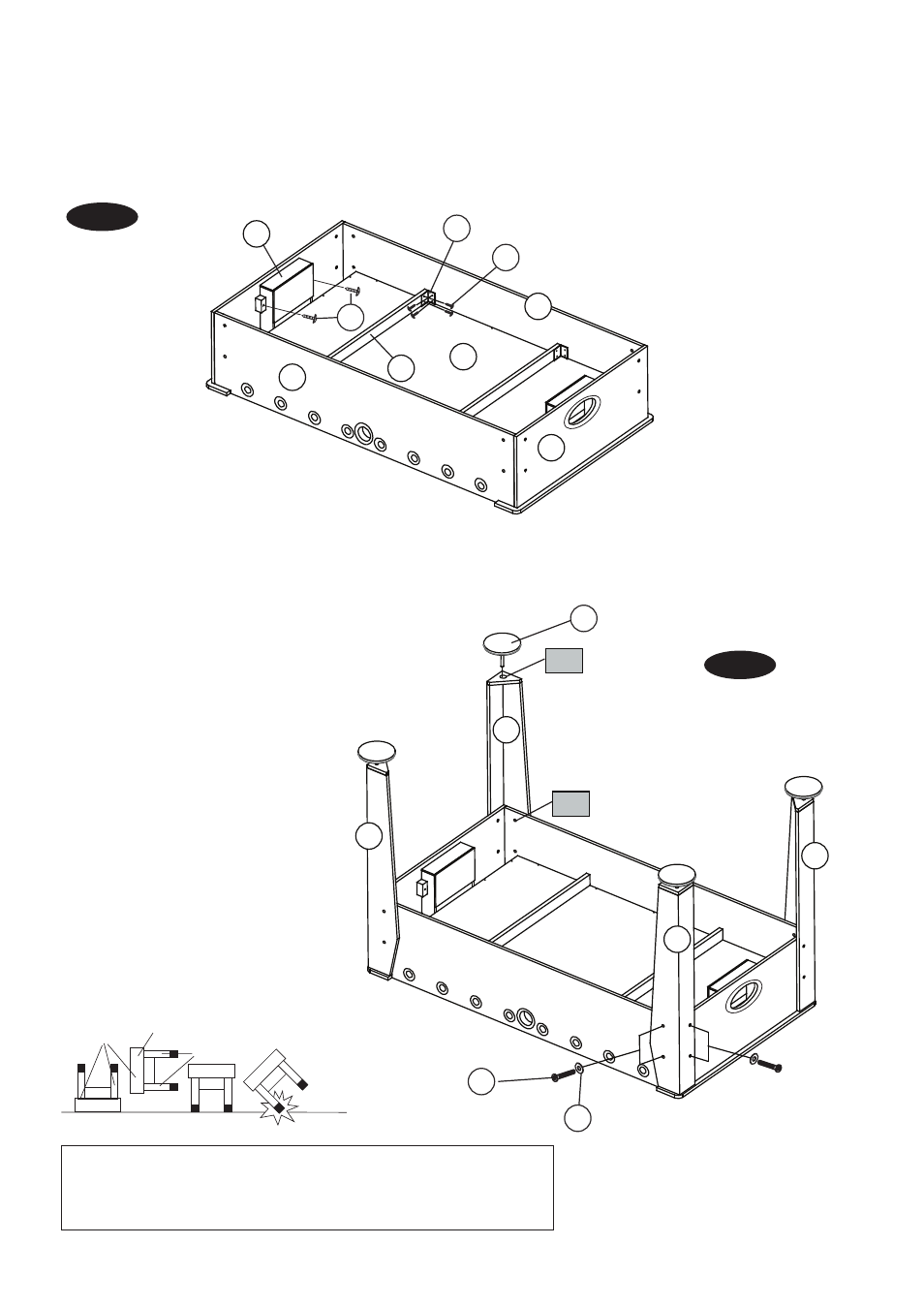

FIG.5
9. Attach the Goal Boxes (#5) to the End Aprons (#1) using two Screws (#12) per Goal Box.
10. Place the Support Braces (#9) on the Playfield (#6) and attach them to Side Aprons (#4) using two “L” Brackets
(#30) and eight Screws (#11) per Support Brace.
FIG. 5
FIG.6
11. Attach the Left and Right Legs (#7 & #8) to the corner of the cabinet using four Bolts (#14) and four Washers
(#24) per Leg.
12. Screw the Leg Levelers (#31) into the bottom of each Leg.
13. Lift the table assembly from the floor with
two strong adults, turn it over, and set table
on its legs in the location where you play.
Go back and make sure that all connec-
tions are tight.
FIG. 6
HOLD TABLE
CABINET DO NOT
HOLD THE
LEGS
DO NOT LEAN THE
TABLE ON ITS LEGS!
CAUTION: Two strong adults are recommended to turn the table over as shown.
1. Lift the table off the ground.
2. Turn the table over.
3. Place it on all four feet at the same time on the ground.
