5

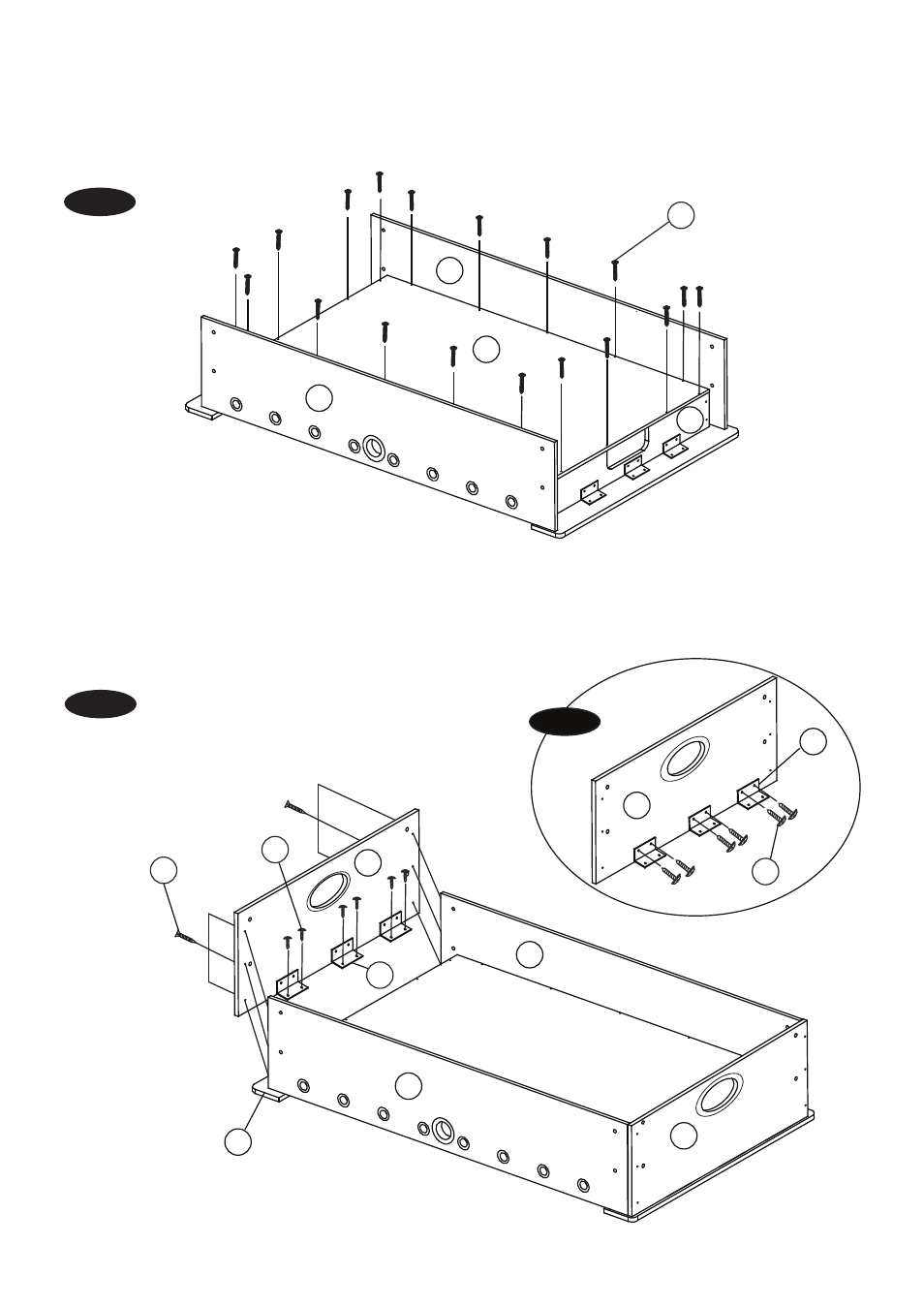

FIG.3
6. Place the Playfield (#6) in the center of the cabinet. Attach it to the Side Aprons (#4) using ten Screws (#13) and
attach it to the Goal End Boards (#2) using eight Screws (#13).
FIG. 3
FIG.4
7. Attach the “L” Brackets (#30) to the End Aprons (#1) using two Screws (#11) per Bracket as shown in FIG.4A.
8. Attach the End Aprons (#1) to the Side Aprons (#4) using six Screws (#18) per End Apron, and then attach the
“L” Brackets (#30) to the Top Slat Boards (#3) using two Screws (#11) per Bracket. See FIG.4.
FIG. 4
18
30
11
11
1
4
3
4
1
1
13
4
2
4
6
FIG. 4A
30
