7

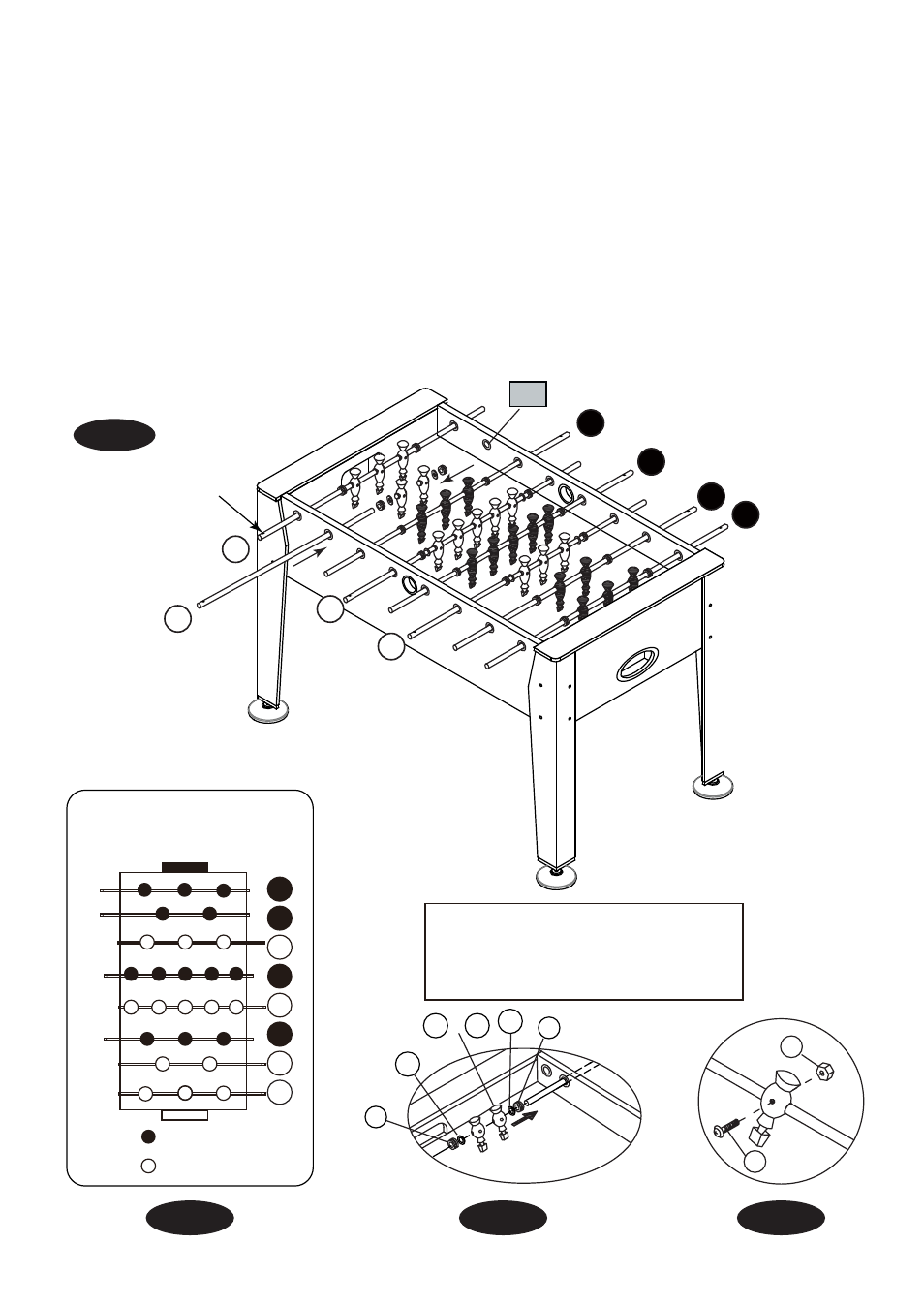

FIG.7
14. Slide the Player Rods ( #19-21) through the Rod Bushings (#37) on one Side Apron (#4) in the order as
shown in Fig.7 and 7A.
Note: The player Rods have a hole at their end where the Handles (#26) will go.
15. Place the Rod Bumpers (#32), Rod Washers (#33) and Players (#22 and #23) onto the Player Rods (#19,
#20 and #21) in the order as shown in Fig.7, 7A and 7B.
16. Now insert the Player Rods through the Rod Bushings (#37) on the opposite Side Apron (#4).
17. Attach the Players (#22 or #23) to the Player Rods (#19 -21) using one Bolt (#15) and one Nut (#25) per
Player. See FIG.7C.
Note: The goalie should be at the left side of each player.
FIG.7
Note: Players of the same team color
should have Handles (#26) on the
same side, and each team’s players
should be facing their opponent.
ORDER OF PLAYERS
(Overhead View)
21
21
21
21
19
19
20
20
= BLACK
= IVORY
FIG. 7A
15
25
FIG. 7C
37
21
19
20
21
21
19
20
21
The Hole
FIG. 7B
32
32
33
33
22 23 or
