7. TECHNICIAN MENU
To protect the display from accidental or unintentional adjustments, the Technician Menu is
accessible only with a special button combination. To avoid repeating this button sequence after
each change, the menu remains active until you manually close it.
Whenever there is a change to the OSD settings, exit the menu,
and cycle power for the changes to be saved.
To open the Technician Menu, start with the display on, and press the following buttons in this
order:
1. Press Menu and – to select the Info page.
2. With the Back option highlighted on the Info page, press +
– + – + + +, and then press
Menu.
3. The Technician Menu opens.

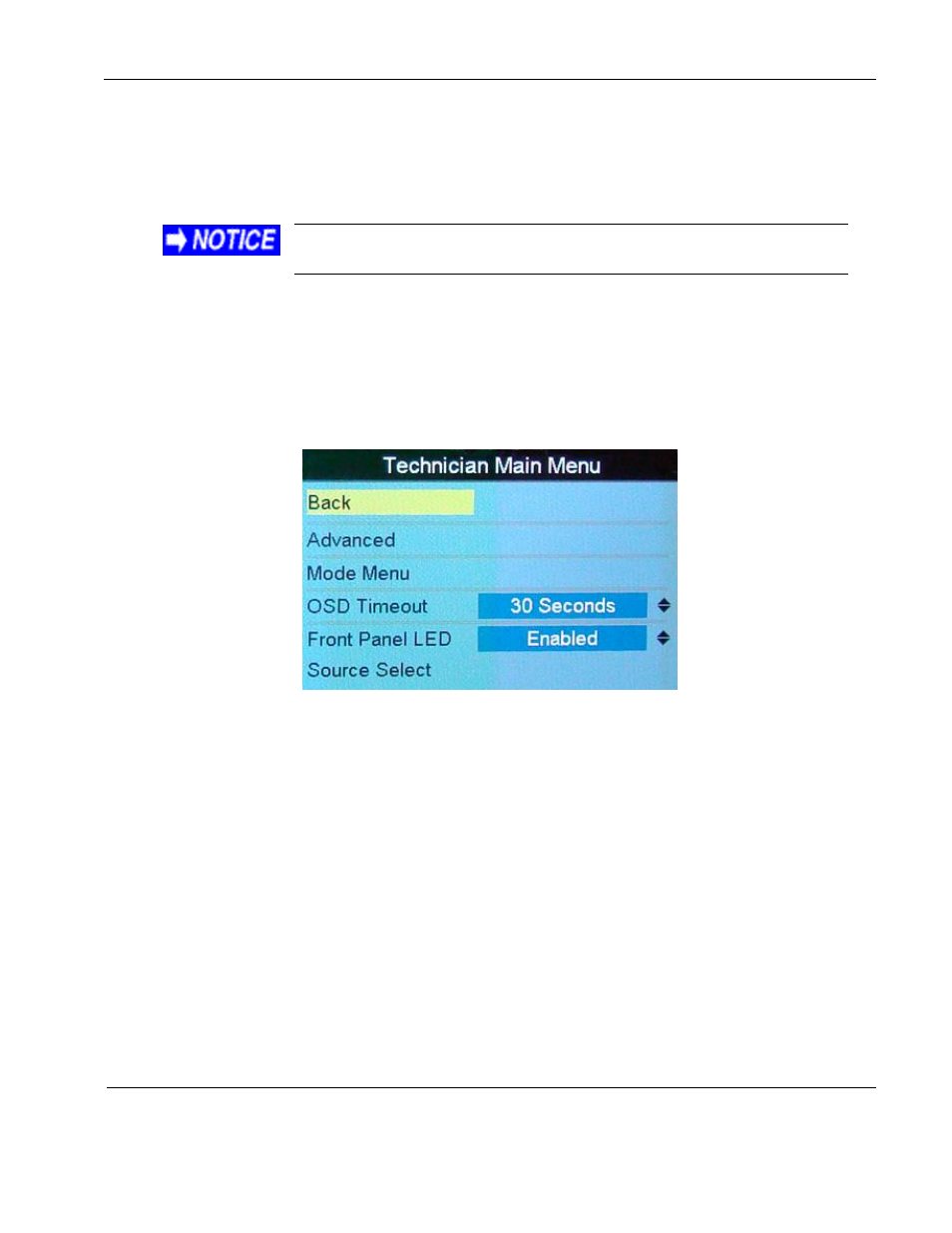

Figure 25 Technician Main Menu
To navigate the menu options, press + or
– on the front panel.
To close the Technician Menu and return to the Main Menu, select the Back option and press
Menu. To close the OSD, select Exit and then press Menu.
Note: The Main Menu options are not selectable while the Technician Menu is open.
