Rosen Aviation 7” Widescreen Display
Document Number: 106211 Revision: B
Date: 04/17/14
Template: 4.4.1.6FM2; Revision A; 12/06/12 Page 23 of 31
7.1.4. AGC (Automatic Gain Control)
(Composite only) This option is a signal compensation tool that will accommodate for
strong and weak Composite signals.
Highlight AdvancedAGC and press Menu.
Use + and – to set the option On (default) or Off, and then press Menu.
Select Back and press Menu to return to the Technician Menu.
To exit the OSD, select Back and Exit.
7.2. Technician Mode Menu
Use the Technician Mode Menu options to specify the Power Mode and to access the SDI
Overscan settings (SDI models only).
From the Technician Main Menu, select Mode Menu and then press Menu to open the
submenu, as shown below.

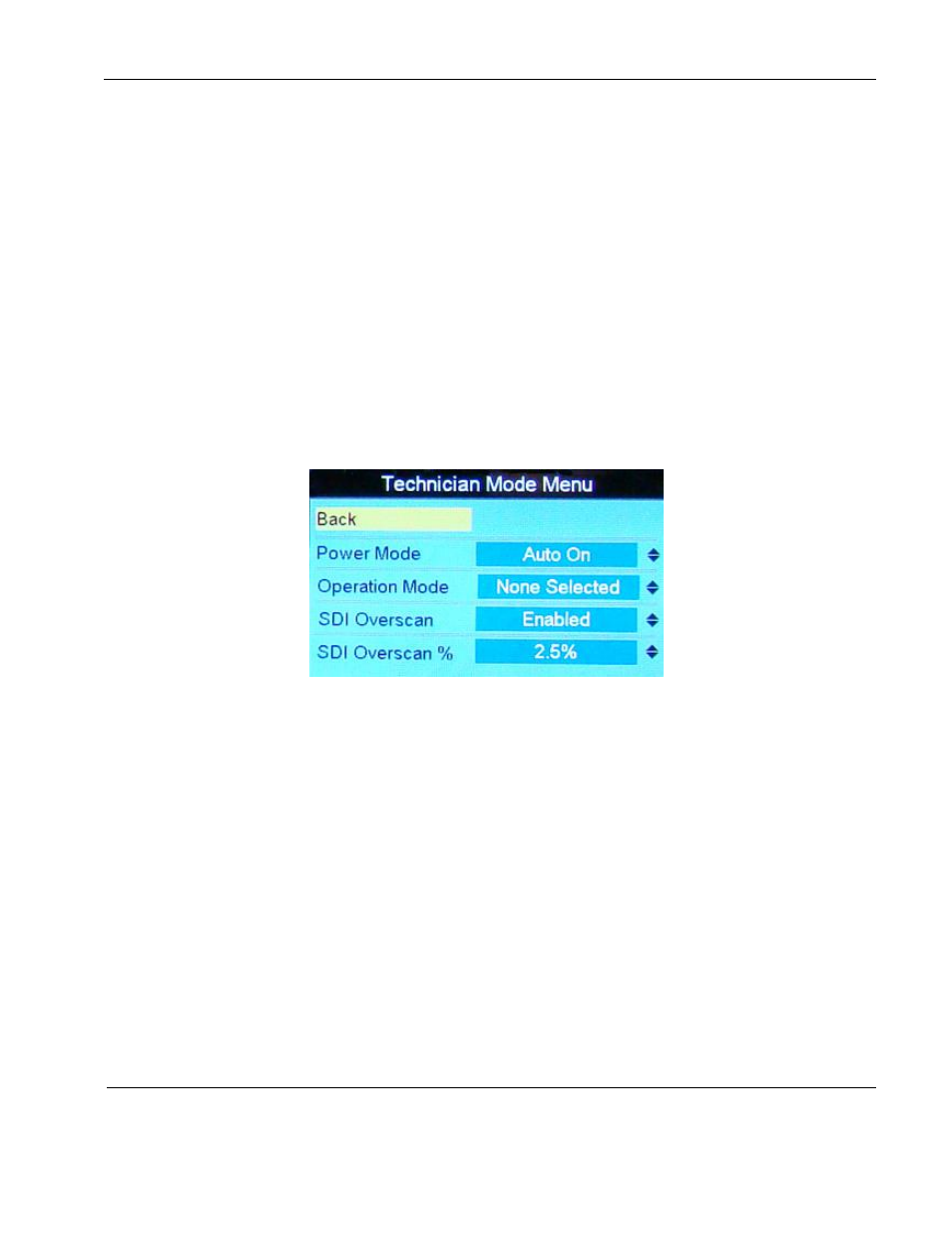

Figure 27 Technician Mode Menu
7.2.1. Power Mode
Use Power Mode to set the display’s initial power state.
From the Technician Menu, press
– to select Mode MenuPower Mode and then press
Menu.
Use the + and – to set the option and then press Menu.
Options include the following:

Auto On: The display always starts up in the ON state when 28V is applied
(default).

Auto Off: The display always starts up in the standby state when 28V is applied.

Restore Previous: The display returns to the previous power settings after any
power interruption.
Select Back and press Menu to return to the Technician Menu.
To exit the OSD, select Back and Exit.
